Home
>
Products
>
Pressure Testers
>
Pressure Kits
>
Test and Check Kit w/ DL469/ CD100A/ EM152/ PDT550
Zoom
Loading…
Test and Check Kit w/ DL469/ CD100A/ EM152/ PDT550
TACK10
Convenient Test and Check Kit, for quick testing, includes True RMS Clamp meter, Combustible leak detector, Dual input manometer, NSF waterproof thermommeter, Carrying case
Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads
Videos
Videos
Hold
Yes
Min/Max
Yes
Ranging
Auto/Man
Auto power off
Yes
Display count
4000
Low battery warning
Yes
Backlight
Yes
Worklight
Yes
Protective boot or overmolding
Yes
Dual pressure input
Yes
Differential pressure
Yes
Zero
Yes
Selectable units
Yes
Magnetic mount
Yes
Warranty
2-Year limited
Gooseneck
18 inch
Adjustable tic rate
Yes
Audible and visual tic rate
Yes
Water proof
Yes
Dual purpose probe cover
Yes
TRMS
Yes
AC volts
750V
DC volts
600V
AC current (amps)
400A
DC micro current (amps)
2000µA
Resistance (Ohms)
60 MΩ
Frequency (Hertz)
99.99Hz to 9.999kHz
Continuity
Yes
Pressure
±60 InH2O
Detects
Combustible gas
Detection senisitivity
50ppm
ETL listed
3rd edition
CE Conformity
Yes
RoHS
Yes
NSF
Yes
EN500082-1
Yes
Meter
DL579
Manometer
EM152
Leak Detector
CD100A
Thermometer
PDT550
Manual (Eng)
Yes
Manual (Spa)
Yes
Manual (Frn)
Yes
Test Leads
ATL57
Alligator clips
AAC3
Batteries
AAA (2),9V (2), AB13
Pouch/Cases
AC73
Data Sheet - English
Manual - English
Manual - Spanish
Manual -French
Hi-Res picture
Line Drawing
Video 1
Loading…
Optional - Replacement Accessories
AAC
Alligator Clips, Slip-On
AAC3
Alligator Clips, Screw-On
ATL1
Modular Test Lead Tips - Standard
ATL2
Modular Test Lead Tips - Alligator Clips
ATL3
Modular Test Lead Tips - Grabber Tip
ATL301KIT
Deluxe Test Lead Kit
ATL5
Modular Test Lead Tips - Back Probe
ATL55
CATIII Test Leads (Standard)
ATL57
CATIV Test Leads (Silicone)
ATL6
Modular Test Lead Tips - Piercing
ATLBPK
Back Probe Test Lead Kit
ATLCAP
Caps for the ATL55/ ATL57 Test Leads
ATLTX
Modular Test Lead Kit Extension Wire
AC519
Soft Carrying Case (13 inch x 6 inch x 2.75 inch)
BF100
Gas Valve Pressure Adapter (EM201B)
AC319
Soft Carrying Case (7.5 inch x 5.5 inch x 2.5 inch)
BF102
Gas Valve Pressure Adapter (EM152)

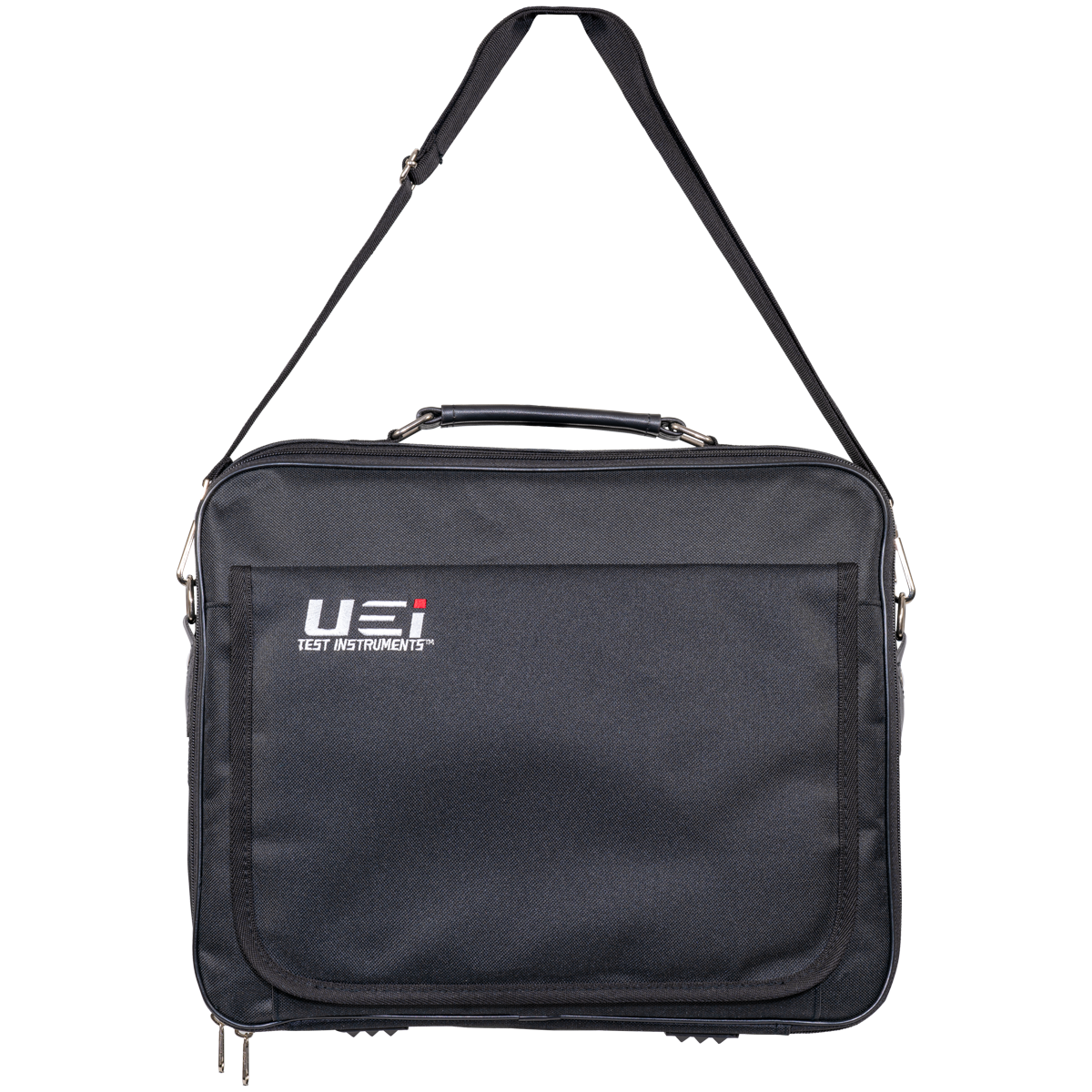

AC73
Soft Carrying Case (12 inch x 15 inch x 3.5 inch)
ASP1
Magnetic Static Pressure Probe
TF100
Stepped T Fitting
AB13
A76VP Button Battery (2 Pack)
