Condensing Unit Install Kit
Condensing Unit Install Kit Includes DL579, RLD15B, HUB8, AC550
510KIT

This kit provides the recommended test instruments required by condensing unit start up manuals for proper installation and maintenance. Most equipment warranties require initial install readings to be documented upon installation.

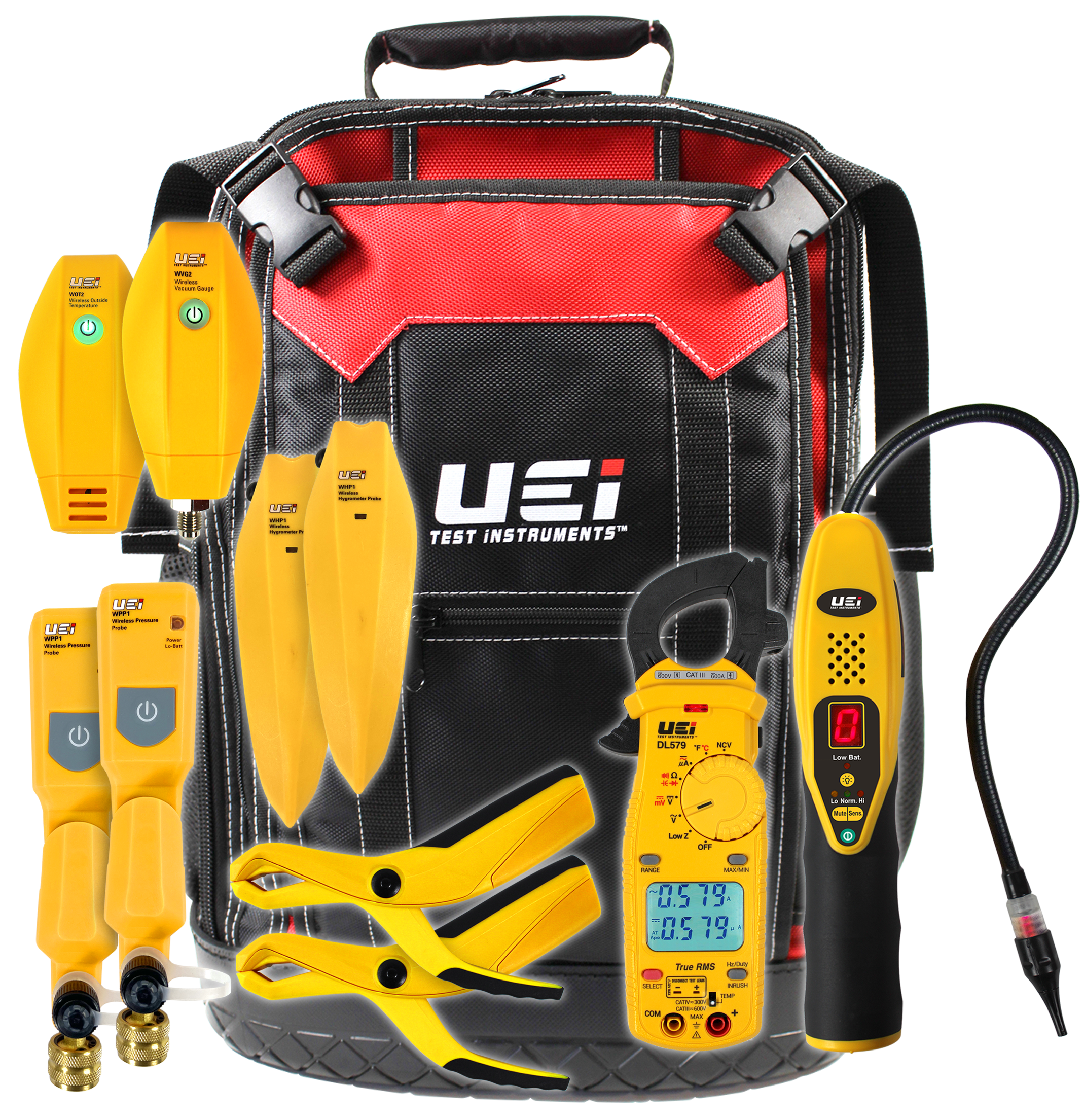

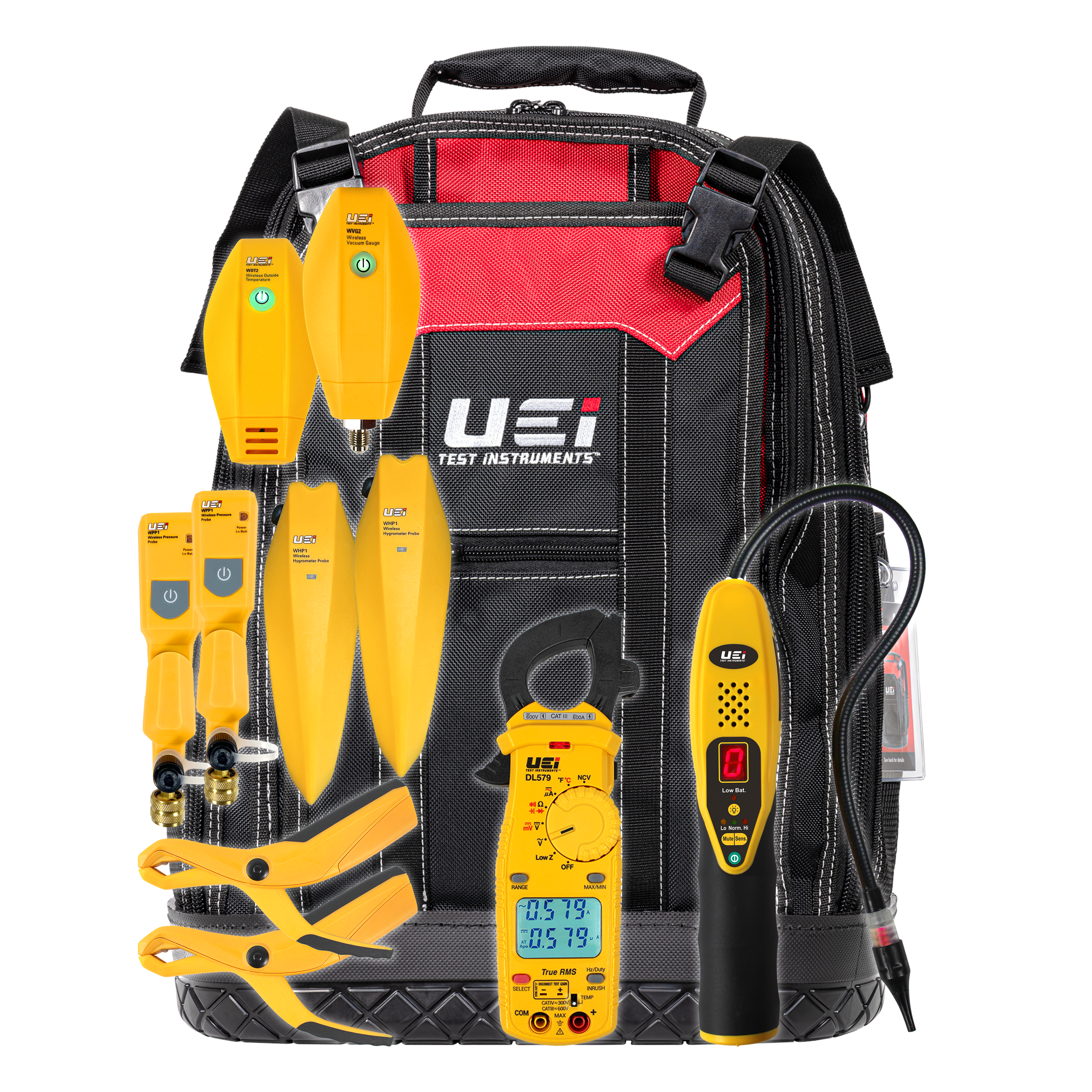

510KIT is packed in this UEi Tool Backpack, which is built rugged with a waterproof base and features two compartments with inner pockets and an included D-clip.


This equipment helps confirm:

Manufacturer requirements to maintain warranty

System is free from refrigerant leaks

Proper high voltage to power supply and ground

Low voltage meets wiring diagram requirements

Evacuation Suction & Liquid valves

Temperatures of Suction & Liquid lines

Superheat and Subcool values for adjustments


Hold Yes
Min/Max Yes
Auto Power Off Yes
Display Count 6000
Dual Display Yes
Temperature Inputs K-Type
Warranty Various
Digital Numeric Leak Indicator Yes
K-Type Input Yes
Digital Yes

TRMS Yes
AC Current (Amps) 600A AC
AC Micro Current (Amps) 2000µA
DC Micro Current (Amps) 2000µA
AC Volts 750V AC
DC Volts 1000V DC
Resistance (Ohms) 60 MΩ
Diode Yes
Capacitance (Farads) 6000µF
Temperature -328˚ to 2462˚F
Frequency (Hertz) 99.99kHz
Duty Cycle (%) 1.0 to 99.0%
Continuity Yes
NCV Detection Yes
Low Z Yes
LRA Inrush Yes
DC Microvolts 600mV
AC Microvolts 600mV
Hygrometer - Temp Range 32˚ to 140˚F
Super Heat 32˚ to 180˚F
Subcool 32˚ to 180˚F
Vapor/Liquid Saturation 32˚ to 180˚F
Relative Humidity 0% to 100%
Detects Refrigerant
Detection Sensitivity .05 oz/year
Senses HFC, CFC, and HCFC Refrigerants and Blends Yes
Pipe Clamp - temp range 32˚ to 180˚F
Pressure 0 to 725 PSIG
Pressure Range 0 to 20000 microns

Ingress Protection IP42
ETL Listed cETLus
IEC 61010 61010-1: 2012
CE Conformity Yes
CAT Rating CATIV 300V / CATIII 600V
RoHS Yes
FCC/IC Compliant FCC
SAE J2913 Yes
ASHRAE 173-2012 Yes
J2791 Certified Yes
EN 14624 Certified Yes

Meter DL579
Leak Detector RLD15B
Batteries AAA (4), AA (9)
Wireless Outside Temperature Probe WOT2
Wireless Hygrometer Probe WHP1 (2)
Wireless Vacuum Gauge Probe WVG2
Wireless Pressure Probe WPP1 (2)
Wireless Pipe Clamp Probes WPC2 (2)
Tool Backpack AC550
