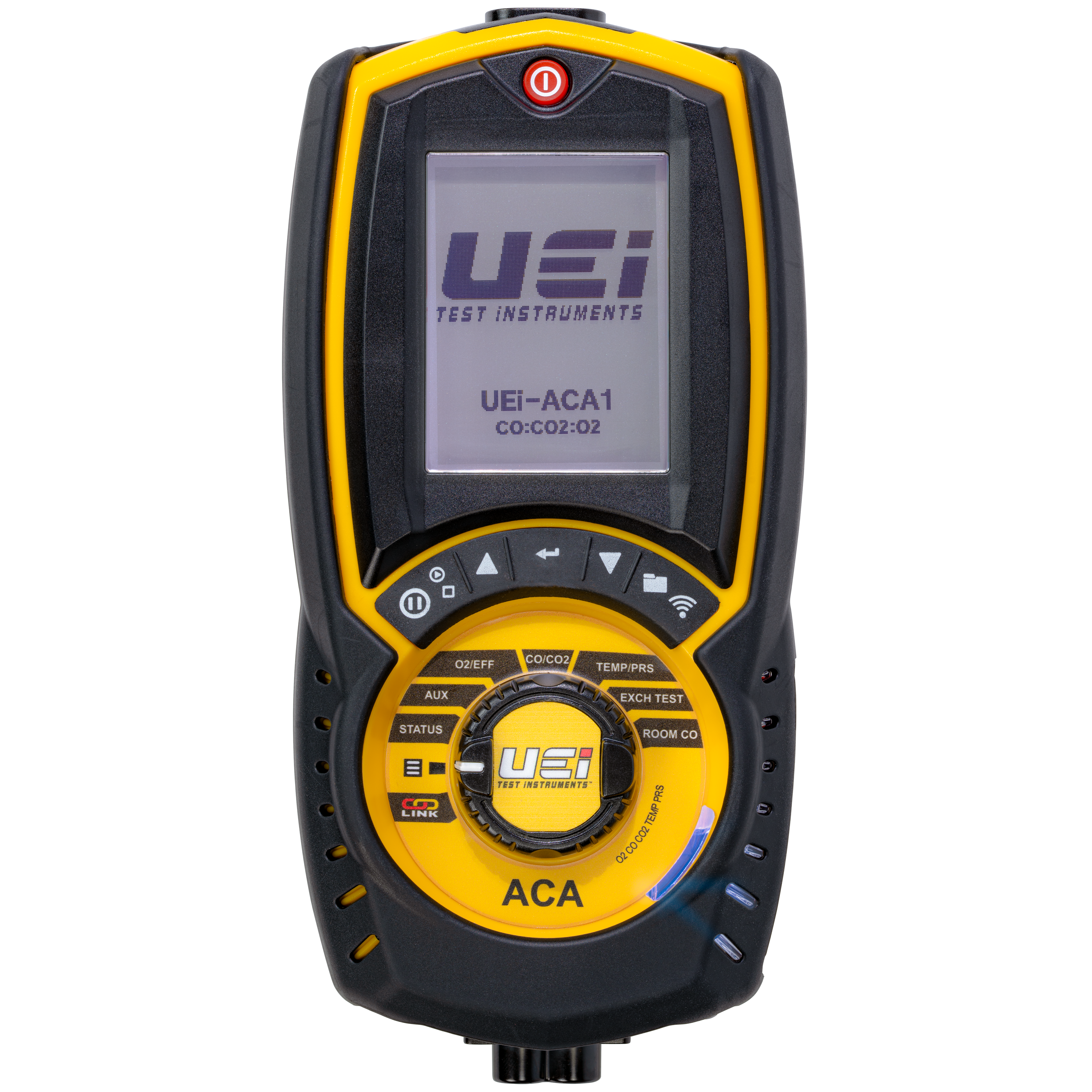

Advanced Combustion Analyzer
ACA

The UEi ACA is our first combustion analyzer is backed by UEi Service+ SAME DAY GUARANTEE FOR LIFE! that reduces the cost of ownership.

See the complete UEi Service+ details here

The ACA features a new high-contrast graphic display, new flue probe with integrated pressure readings, an H2 compensated 10,000 ppm CO sensor with purge pump protection, and LINK wireless probe connection for use with optional wireless pipe clamp probes.

ACA allows techs to print to an optional printer through the IR port for hard copies or wireless to a compatible device using the KANE LIVE App to record and email results.

Service Plus Year 1 $255.99
Service Plus Year 2 $255.99
Service Plus Year 3 $255.99
Service Plus Year 4 $255.99
Service Plus Year 5 $455.02

Warranty Warranted for analyzer's life with annual recertification
Eligible for UEi Service+ Yes
Elligible for UEi Concierge+ Yes
Wireless Output Yes
LINK to Compatible Wireless Probes DTHA2, COL, WPC2
Free App Available Yes
App Compatibility UEi HUB, measureQuick
IR Printer Link Yes
Display Type Graphic Display
Display Backlight Yes
Types of Sensor Protection NOx Filtered CO Sensor, Low Flow Detection, Over Range Protection Pump
Temperature Differential Yes
Temperature Inputs K-Type
Protective Boot/Overmolding Yes
Magnetic Mount Yes
Automatic Fresh Air Purge Yes
Protective Water Trap Yes
LED Water Trap Check Light Yes

CO 10,000ppm (H2 compensated & NOx Filtered)
CO2 20%
O2 21%
Flue Temperature 32˚ to 1112˚F
Inlet Temperature 32˚ to 1112˚F
Heat Exchanger Test (HET) Yes
Room CO Test Yes
Pressure Yes
Differential Pressure Yes

CE Conformity Yes
RoHS EC62321-2:2013, IEC62321-1:2013, IEC62321-3-1:2013, IEC62321-5:2013, IEC62321-4:2013, IEC62321-7-2:2017, IEC62321-7-1:2015, IEC62321-6:2015
REACH Compliant Yes
AHRI 1260 Standard Yes
Certification The ACA is independently tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV)
EMC EN50270:2015
Safety EN61010-1:2010

Quick Start Guide Yes
Batteries Rechargeable AA (3)
Pouch/Case AC509
Flue Probe CP30
USB Cable AACA5
Particle Filter 17631 (spare)
K-Type Thermocouples ATT29 (2)
