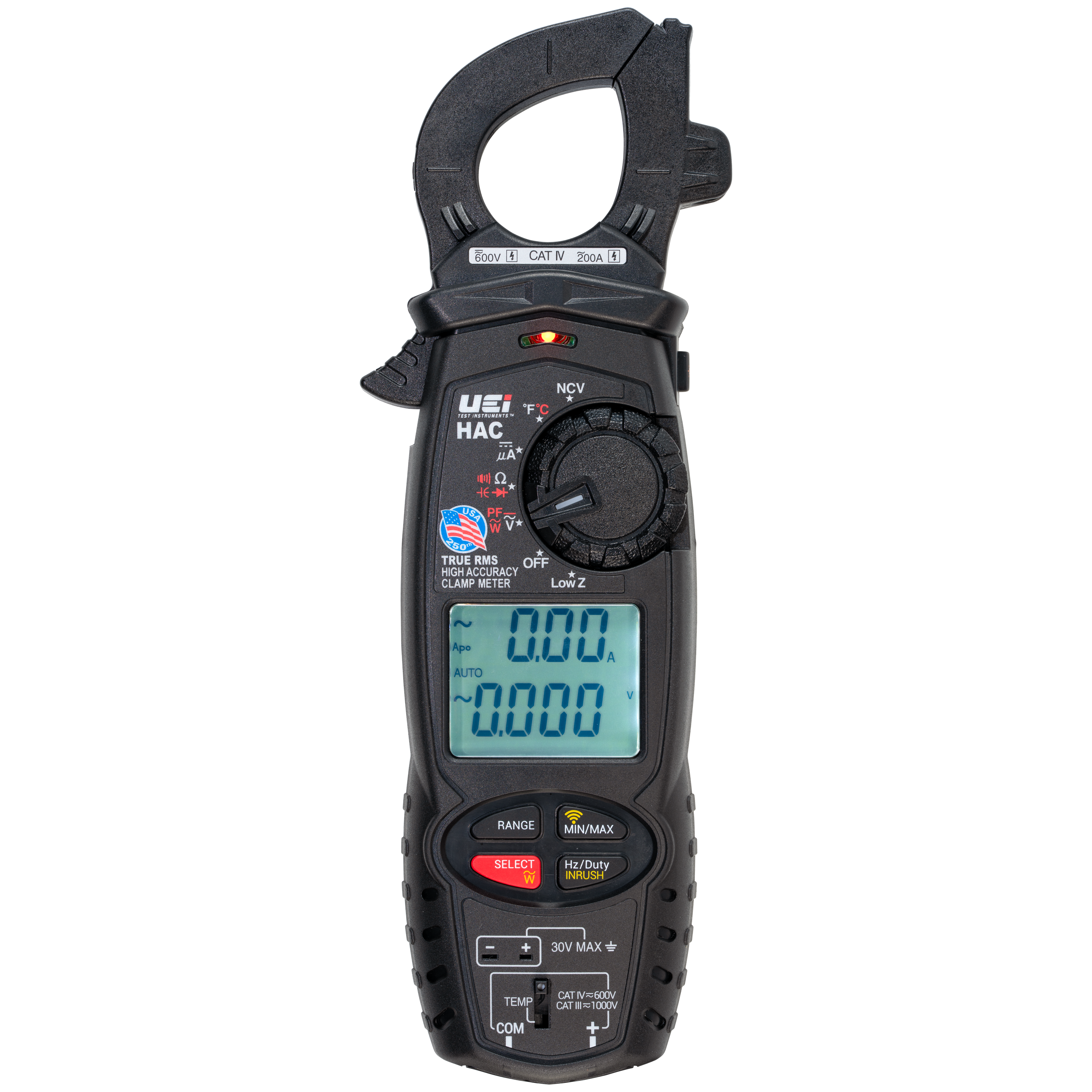

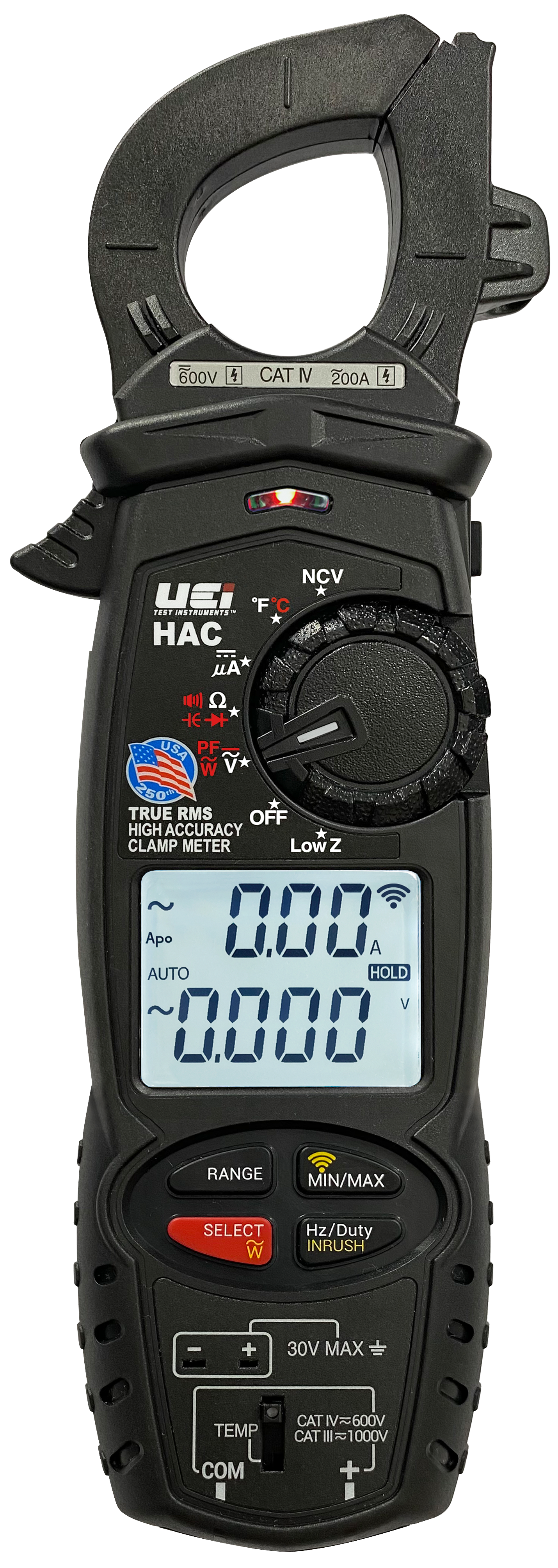

Commemorative Edition High Accuracy Clamp Meter
HAC

Our UEi High Accuracy Clamp Meter celebrates America’s 250th anniversary with this sleek black commemorative edition. The high accuracy clamp meter is designed for HVAC/R professionals who require high accuracy for low amp applications making it ideal for variable refrigerant flow (VRF) systems, variable frequency drives (VFD), inducer motors for gas furnaces, mini-splits, and HVAC control boards or components.

The HAC features wireless capabilities to a free app UEI HUB for remote testing, an ergonomic over-molded grip, backlit dual display, built-in test lead storage, worklight, and a versatile magnetic hanger strap for hands-free testing.

In addition to the essential HVAC testing functions, the HAC offers an easy-to-use Power Factor measurement feature to help determine equipment’s power usage and is safety rated at CATIV 600V / CATIII 1000V and certified by ETL to IEC 61010-1, 3rd edition. Our High Accuracy Clamp meter includes a set of silicone test leads, threaded alligator clips, threaded back probes, K-Type thermocouple, and a redesigned larger padded case that allows you to leave your test leads plugged in when storing the meter.

HAC is backed by a 2-Year limited warranty.

Dual Display Yes
Backlight Yes
Hold Yes
Min/Max Yes
Ranging Auto/Manual
Auto Power Off Yes (30 min.)
Display Count 4,000
Low Battery Warning Yes
Worklight Yes
Wireless Output Yes
Free App Available Yes (iOS® and Android™ compatible)
Protective Boot/Overmolding Yes
Magnetic Mount Yes
Warranty 2-Year limited
Average Yes
Probe/Lead Storage Yes

TRMS Yes
AC Current (Amps) - Jaw input 200AAC
LRA Inrush Yes
Power Factor Yes
Active Power Yes
Reactive Power Yes
Apparent Power Yes
DC Volts 1000VDC
AC Volts 750VAC
Frequency (Hertz) - Test lead input 99.99kHz
Duty Cycle (%) 1.0 to 99.0%
Resistance (Ohms) 60MΩ
Diode Yes
Capacitance (Farads) 6000µF
Continuity Yes
DC Micro Current (Amps) - Test lead input 2000µADC
Temperature -328°F to 2462 °F (-200°C to 1350°C)
Low Z Yes
NCV Detection Yes

Ingress Protection IP42
ETL Listed cETLus UL 61010-1:2012
CE Conformity Yes
CAT Rating CATIV 600V/CATIII 1000V
RoHS Yes
FCC/IC Compliant FCC
REACH Compliant Yes

Test Leads ATL70 Silicone
Back Probes ABP3
Alligator Clips AAC3
Batteries AAA (4)
Temperature Probe ATT29
Pouch/Case AC570 Commemorative Edition
