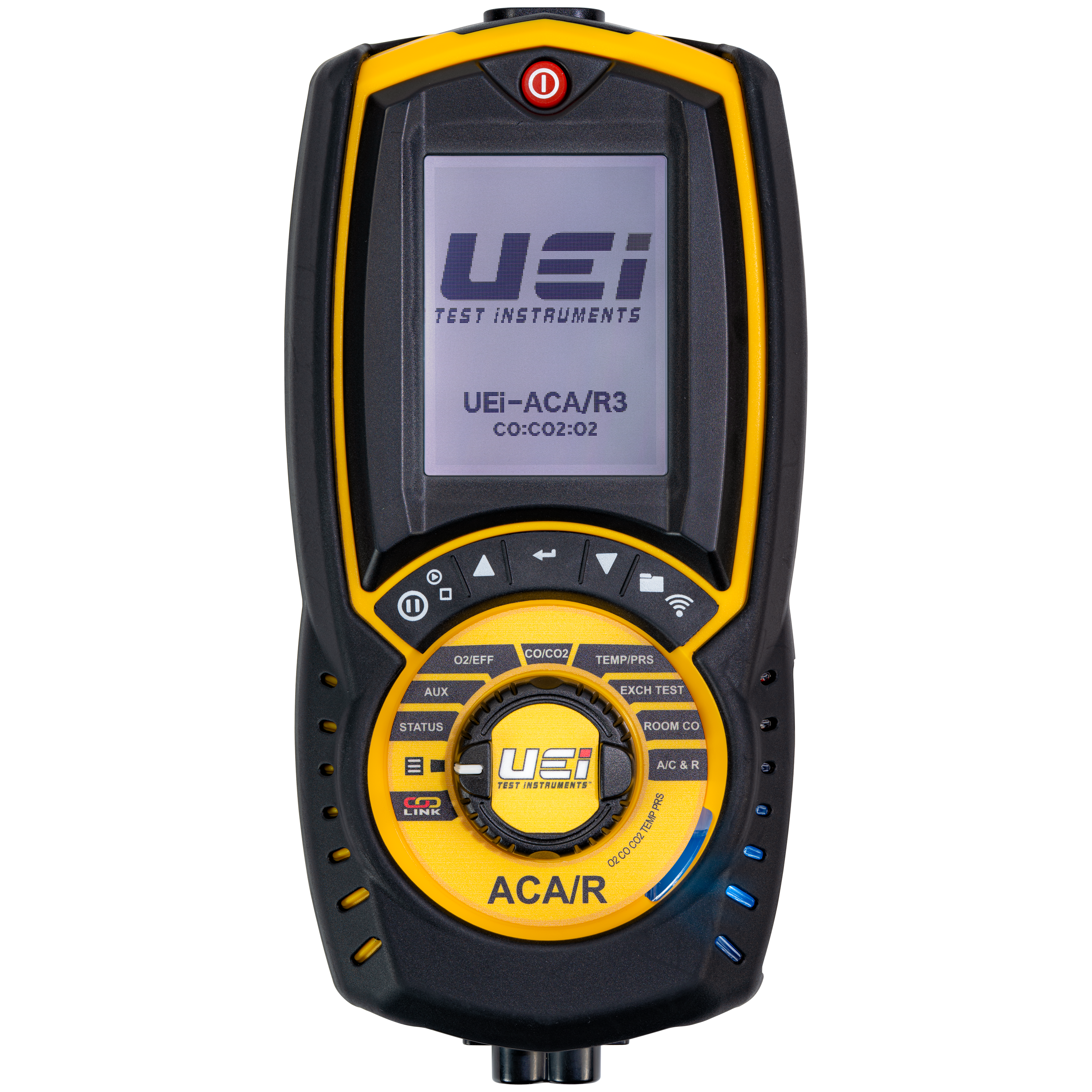

Advanced Combustion Analyzer & Refrigerant Analyzer
ACA/R

The UEi ACA/R advanced combustion analyzer and refrigeration analyzer is backed by UEi Service+ SAME DAY GUARANTEE! that reduces the cost of ownership and is warranted for analyzer’s life with annual recertification.

See the complete UEi Service+ details here

Now professionals can connect optional wireless HUB refrigeration probes to use the “AC & R” screen to measure high and low side refrigeration, air temperature psychrometric calculations, and evacuation tests and user their analyzers for both heating and cooling seasons. The ACA/R features a high-contrast graphic display, flue probe with integrated pressure readings, an H2 compensated 10,000 ppm CO sensor with purge pump protection, and connects to the UEi HUB app or optional wireless IR printer.

Warranty Warranted for analyzer's life with annual recertification
Eligible for UEi Service+ Yes
Elligible for UEi Concierge+ Yes
Wireless Output Yes
LINK to Compatible Wireless Probes HUB2/4/6/8, DTHA2, COL, WPC2
Free App Available Yes
App Compatibility UEi HUB
IR Printer Link Yes
Display Type Graphic Display
Display Backlight Yes
Types of Sensor Protection NOx Filtered CO Sensor, Low Flow Detection, Over Range Protection Pump
Pre-Programmed Fuels NAT GAS, PELLETS, H OIL, BIO OIL, L OIL, LPG, BUTANE, PROPANE
User Programmed Fuels 5 User defined fuels
Temperature Differential Yes
Temperature Inputs K-Type
Protective Boot/Overmolding Yes
Memory positions 45 Combustion Tests, 120 Refrigeration Tests
Magnetic Mount Yes
Automatic Fresh Air Purge Yes
Protective Water Trap Yes
LED Water Trap Check Light Yes

CO 10,000ppm (H2 compensated & NOx Filtered)
CO2 (Ambient/Flue) 20%
O2 21%
Flue Temperature 32° to 1112°F
Inlet Temperature 32° to 1112°F
Heat Exchanger Test (HET) Yes
Room CO Test Yes
Pressure Yes
Differential Pressure Yes

CE Conformity Yes
RoHS EC62321-2:2013, IEC62321-1:2013, IEC62321-3-1:2013, IEC62321-5:2013, IEC62321-4:2013, IEC62321-7-2:2017, IEC62321-7-1:2015, IEC62321-6:2015
REACH Compliant Yes
AHRI 1260 Standard Yes
Certification The ACA/R is independently tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV)
EMC EN50270:2015
Safety EN61010-1:2010

Quick Start Guide Yes
Batteries Rechargeable AA (3)
Pouch/Case AC509
Flue Probe CP30
USB Cable AACA5
Particle Filter 17631 (spare)
K-Type Thermocouples ATT29
