Gas Furnace Install Kit

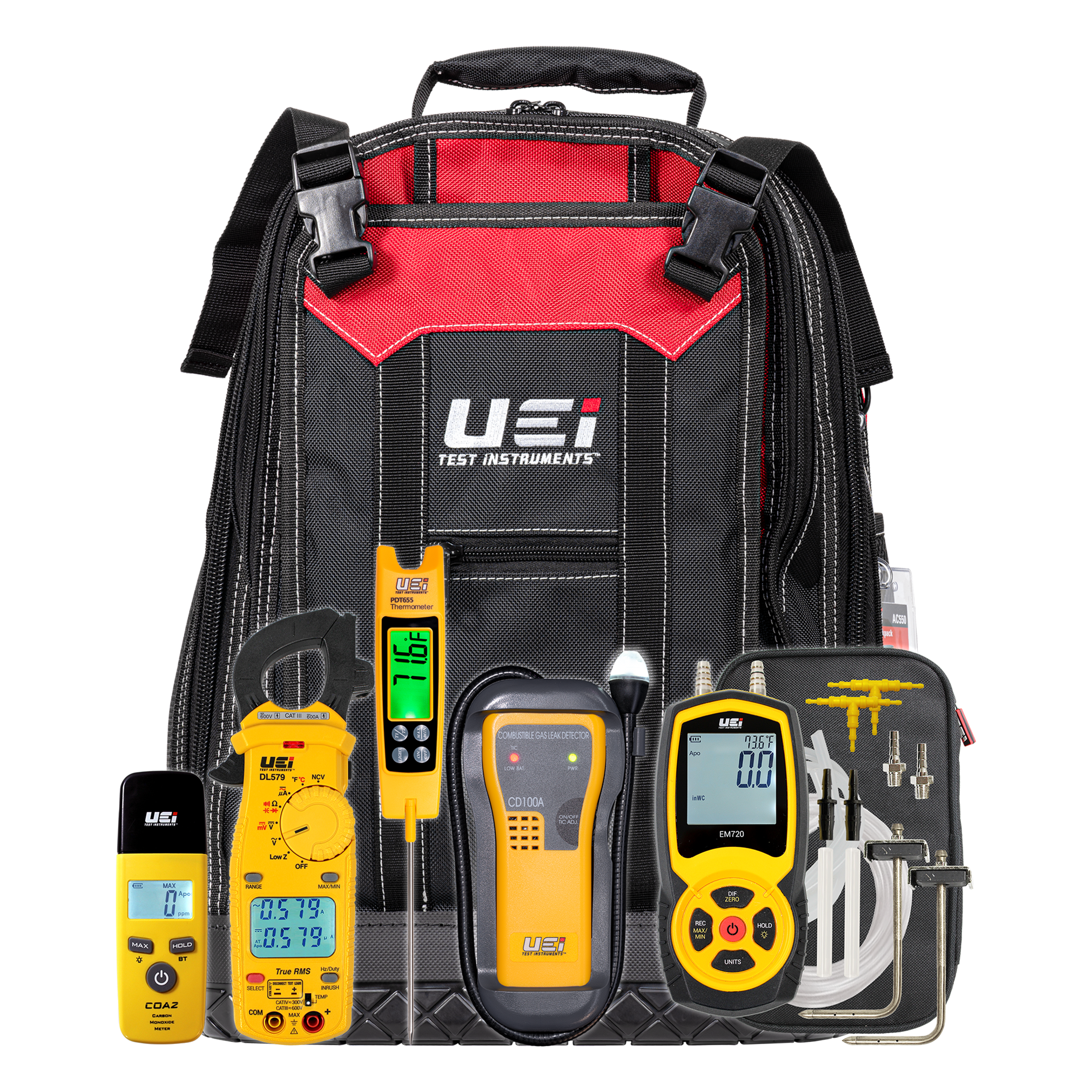

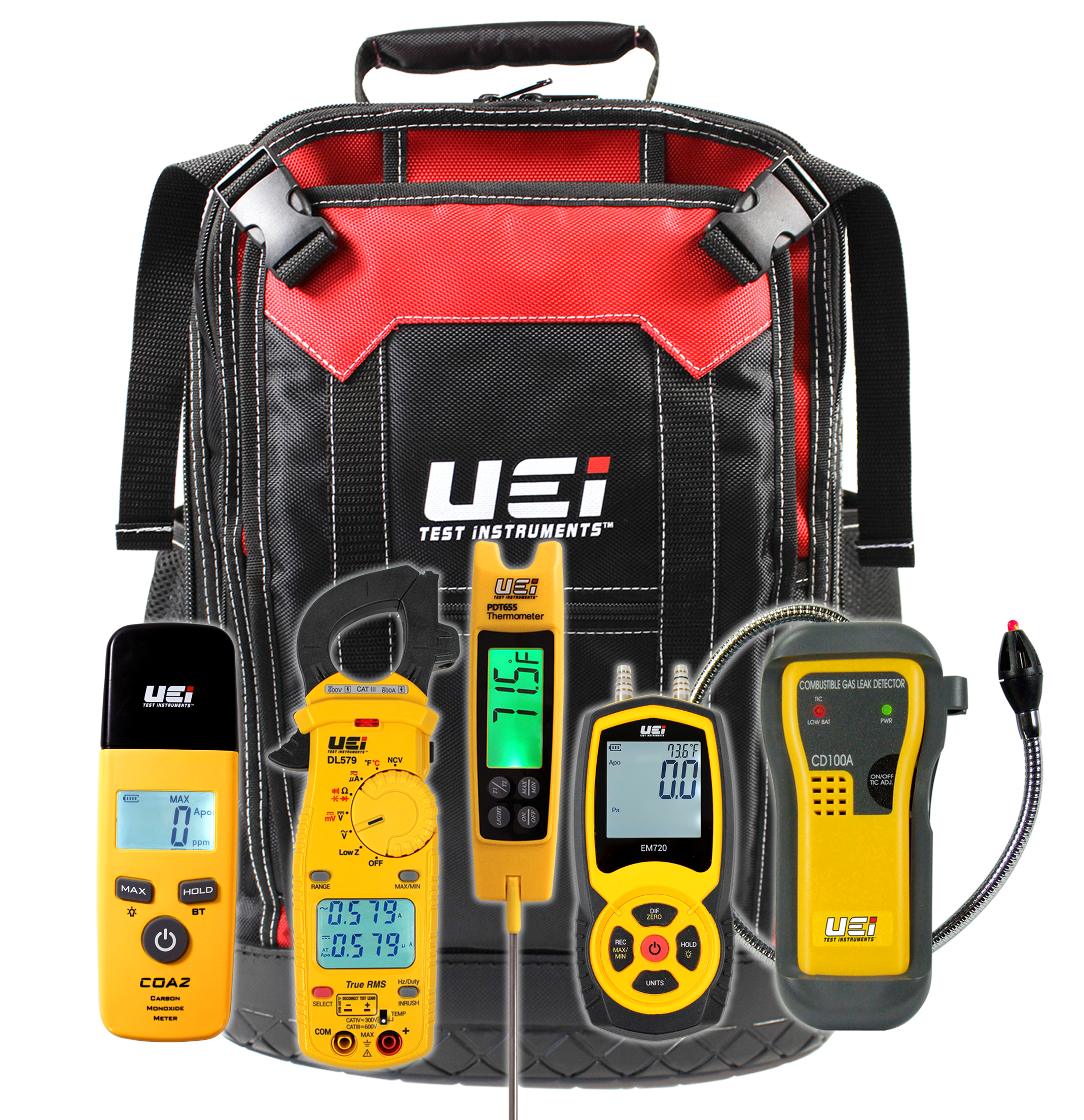

Gas Furnace Install Kit Includes DL579, CD100A, EM720SPKIT, PDT655, COA2, AC550
521KIT

The UEi 521KIT has the essential testing solutions recommended by major manufacturers for the installation and maintenance of gas furnaces. This allows you to validate and document initial readings at the time of installation as required by most equipment warranties.

Check voltage levels and ensure proper grounding with the DL579 TRMS clamp meter. Monitor supply and return air duct temperature using the PDT655 differential pocket thermometer. Perform external static pressure tests on airflow using the EM720 differential manometer and static pressure kit. Ensure a perfect install by using the CD100A to confirm the system is safe from any gas leaks. Finally, keep homes and workplaces safe from dangerous CO levels via the COA2 carbon monoxide detector.

The 521KIT comes packed in the UEi Heavy Duty Tool Backpack, which features a rigid waterproof base, 2 zippered inner compartments, 10 vertical tool pockets, and an outer compartment with adjustable straps for securing larger items.

Dual Display Yes
Backlight Yes
Temperature Differential Yes
Differential Pressure Yes
Hold Yes
Min/Max Yes
Auto Power Off Yes
Display Count 6000
Temperature Inputs K-Type
Free App Available Yes (Android™ and iOS® compatible)
Protective Boot/Overmolding Yes
Dual Pressure Input Yes
Zero Yes
Selectable Units Yes
Magnetic Mount Yes
Warranty Various
Digital Numeric Leak Indicator Yes
Recording/Data Logging In App
Hi-Resolution Accuracy Yes
Average In App
K-Type Input Yes
Folding Temperature Probe Yes
Digital Yes

TRMS Yes
AC Current (Amps) 600A AC
AC Micro Current (Amps) 2000µA
DC Micro Current (Amps) 2000µA
AC Volts 750VAC
DC Volts 1000V DC
Resistance (Ohms) 60 MΩ
Diode Yes
Capacitance (Farads) 6000µF
Temperature -328˚ to 2462˚F
Frequency (Hertz) 99.99kHz
Duty Cycle (%) Yes
Continuity Yes
NCV Detection Yes
Low Z Yes
LRA Inrush Yes
DC Microvolts 600mV
AC Microvolts 600mV
CO 0-999ppm
Detects Combustible Gas
Detection Sensitivity < 50ppm methane
Pressure ±60 InH2O

Ingress Protection IP42
ETL Listed cETLus
IEC 61010 61010-1: 2012
CE Conformity Yes
CAT Rating CATIV 300V / CATIII 600V
RoHS Yes
FCC/IC Compliant FCC

Meter DL579
Manometer EM720SPKIT
Leak Detector CD100A
CO Detector COA2
Thermometer PDT655
