Oil Burner & Boiler Install Kit
Oil Burner and Boiler Install Kit Includes DL579, CD100A, EM720SPKIT, PDT655, C161OIL, AC550
522KIT

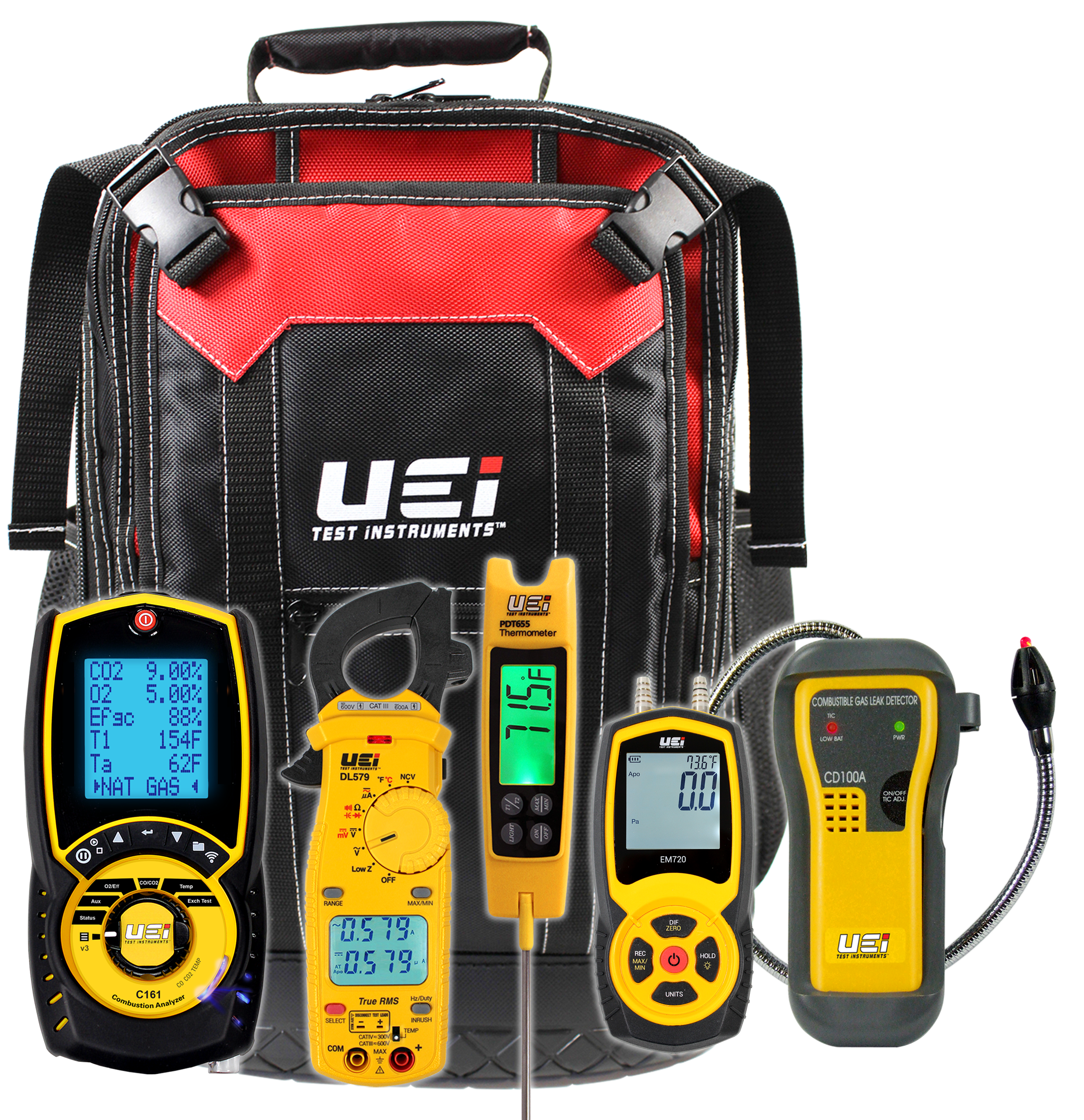

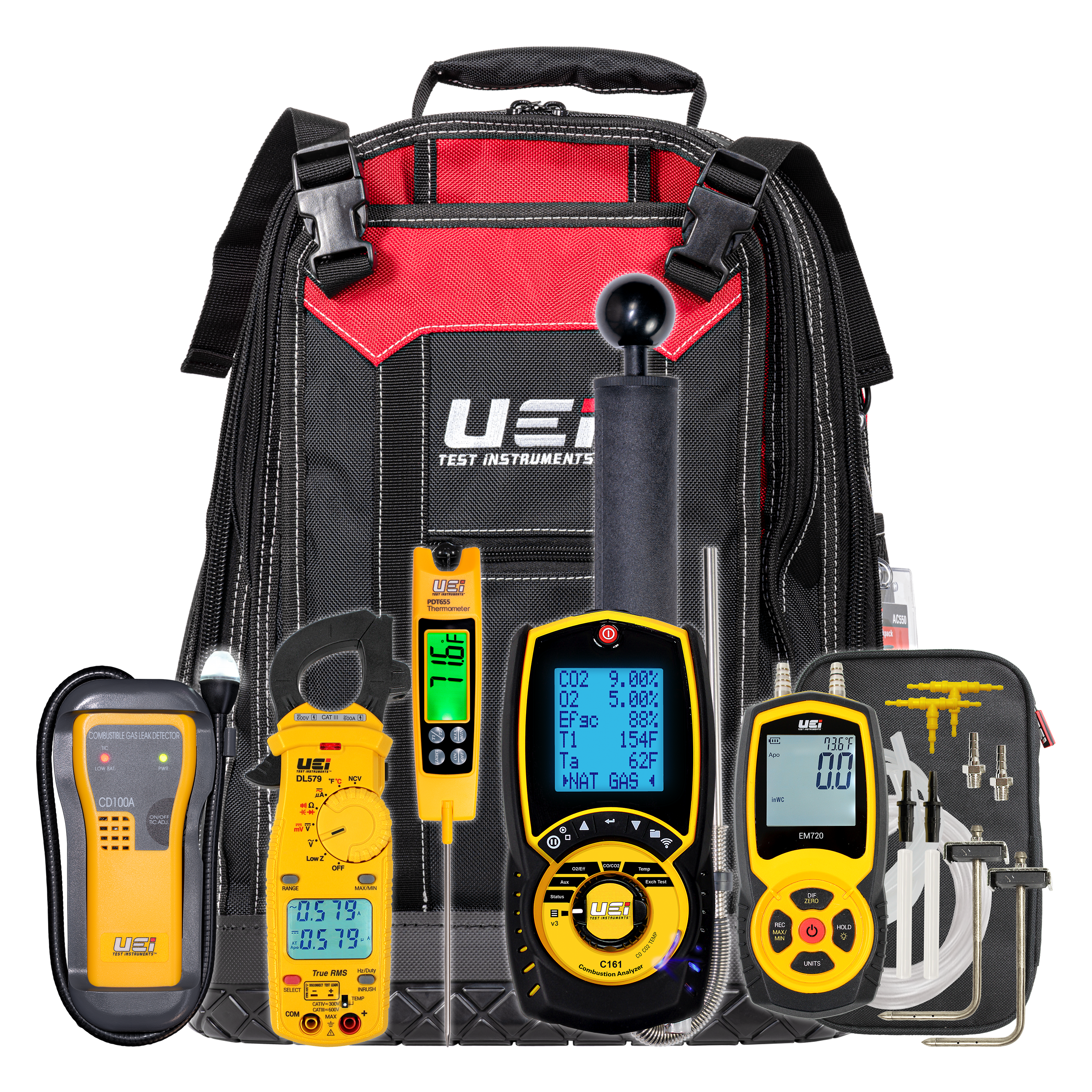

The UEi 522KIT has the essential testing solutions recommended by major manufacturers for the installation and maintenance of oil burners and boilers. This allows you to validate and document initial readings at the time of installation as required by most equipment warranties.

Check voltage levels and ensure proper grounding with the DL579 TRMS clamp meter. Test heat exchanger integrity, flue gas smoke levels, and analyze fuel efficiency and more using the C161 combustion analyzer with smoke pump test kit. Monitor supply and return air duct temperature using the PDT655 differential pocket thermometer. Perform external static pressure tests on airflow and test gas flow pressure using the EM720 differential manometer and static pressure kit. Ensure a perfect install by using the CD100A to confirm the system is safe from any gas leaks.

The 522KIT comes packed in the UEi Heavy Duty Tool Backpack, which features a rigid waterproof base, 2 zippered inner compartments, 10 vertical tool pockets, and an outer compartment with adjustable straps for securing larger items.



Dual Display Yes
Backlight Yes
Up to 10-Year Warranty with Annual Recertification Yes
Eligible for UEi Service+ Yes
Temperature Differential Yes
Differential Pressure Yes
2 Types of Sensor Protection Yes
NOx Filtered CO Sensor Yes
Low Flow Detection Yes
Hold Yes
Min/Max Yes
Auto Power Off Yes
Display Count 6000
Temperature Inputs K-Type
Wireless Output Yes
Protective Boot/Overmolding Yes
Dual Pressure Input Yes
Preprogrammed Fuels 8
Start Time 30 sec.
High Altitude Compensation Yes
Memory positions 45
Zero Yes
Selectable Units Yes
Magnetic Mount Yes
Warranty Various
Recording/Data Logging Yes
Hi-Resolution Accuracy Yes
K-Type Input Yes
Digital Yes
Automatic Fresh Air Purge Yes
Number of Display Parameters 6
IR Printer Link Yes

TRMS Yes
AC Current (Amps) 600A AC
AC Micro Current (Amps) 2000µA
DC Micro Current (Amps) 2000µA
AC Volts 750V AC
DC Volts 1000V DC
Resistance (Ohms) 60 MΩ
Diode Yes
Capacitance (Farads) 6000µF
Temperature -328˚ to 2462˚F
Frequency (Hertz) 99.99kHz
Duty Cycle (%) 1.0 to 99.0%
Continuity Yes
NCV Detection Yes
Low Z Yes
LRA Inrush Yes
DC Microvolts 600mV
AC Microvolts 600mV
CO 2000ppm
CO2 20%
O2 21%
Flue Temperature 32˚ to 1112˚F
Inlet Temperature 32˚ to 1112˚F
Heat Exchanger Test (HET) Yes
Differential Temperature Yes
Detects Combustible Gas
Detection Sensitivity < 50ppm methane
K-Type Temperature Range -40˚ to 950˚F (-40˚ to 510˚C)
Pressure ±60 InH2O

Ingress Protection IP42
ETL Listed cETLus
IEC 61010 61010-1: 2012
CE Conformity Yes
CAT Rating CATIV 300V / CATIII 600V
RoHS Yes
FCC/IC Compliant FCC
REACH Compliant Yes
AHRI 1260 Standard Yes
Certification The C161 is independently tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV)
EMC EN50270:2015
Safety EN61010-1:2010

Combustion Analyzer C161OIL
Meter DL579
Manometer EM720SPKIT
Leak Detector CD100A
Thermometer PDT655
Batteries AAA (2), 9V, CR2032, Rechargeable AA (3)
Tool Backpack AC550
