TrueRMS Wireless Everyday Professional Clamp Meter
EPC

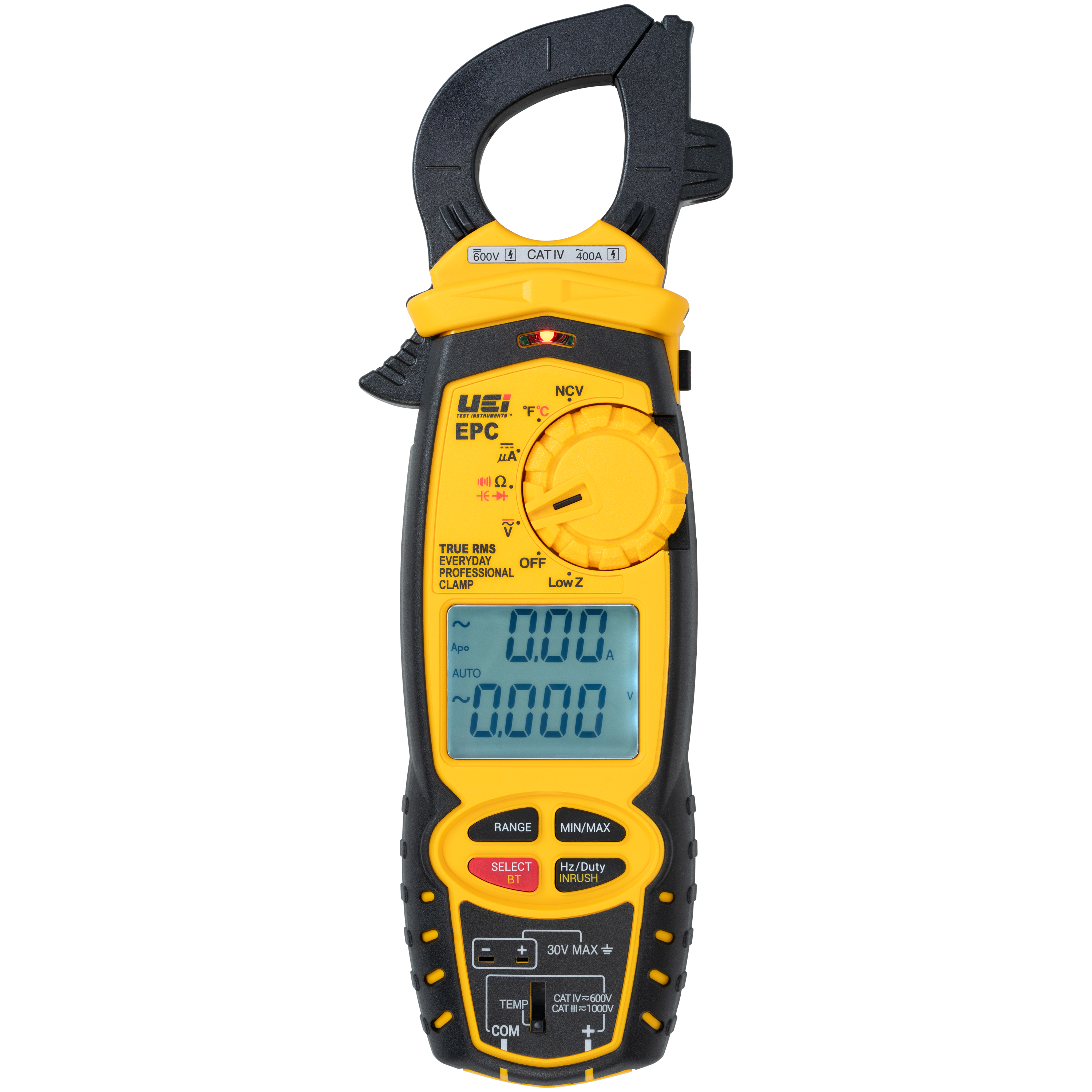

The UEi EPC is a True-RMS wireless clamp meter designed to tackle the essential tests that HVAC/R professionals perform everyday.

The EPC is safety rated at CATIV 600V 400A/ CATIII 1000V 400A. It's capable of reading AC/DC Volts, LRA Inrush, temperature, capacitance, duty cycle, AC amps, DC microamps, frequency via leads, non-contact voltage, resistance, continuity, and diode testing.

This newly designed clamp meter also features an ergonomic overmolded grip, backlit dual display, built-in test lead storage and a separate jaw-mounted test lead holder, a versatile magnetic hanger strap for hands-free testing, and wireless connectivity to the free app, UEi HUB, which allows live readings.

Each EPC includes a set of silicone test leads, threaded alligator clips, threaded back probes, K-Type thermocouple, and a redesigned larger padded case that allows you to leave your test leads plugged in when storing the meter.

EPC is backed by a 2-Year limited warranty.


Dual Display Yes
Backlight Yes
Hold Yes
Min/Max Yes
Ranging Auto/Manual
Auto Power Off Yes
Display Count 4,000
Low Battery Warning Yes
Wireless Output Yes
Free App Available Yes (iOS® and Android™ compatible)
Protective Boot/Overmolding Yes
Magnetic Mount Yes
Warranty 2-Year limited
Audible and Visual Alerts Yes
K-Type Input Yes
Probe/Lead Storage Yes
Digital Yes

TRMS Yes
AC Current (Amps) 400A AC
DC Micro Current (Amps) 2000µA
AC Volts 750V AC
DC Volts 1000V DC
Resistance (Ohms) 40MΩ
Diode Yes
Capacitance (Farads) 4000µF
Temperature -328-2462 °F
Frequency (Hertz) 99.99kHz
Duty Cycle (%) Yes
Continuity Yes
NCV Detection Yes
Low Z Yes
LRA Inrush Yes

Ingress Protection IP42
ETL Listed cETLus UL 61010-1: 2012
CAT Rating CATIV 600V/CATIII 1000V
FCC/IC Compliant FCC

Quick Start Guide Yes
Test Leads Silicone ATL70
Back Probes ABP3
Alligator Clips AAC3
Batteries AAA (4)
Temperature Probe ATT29
Pouch/Case Yes
