Flue Gas Analyzer (Instrument Only)

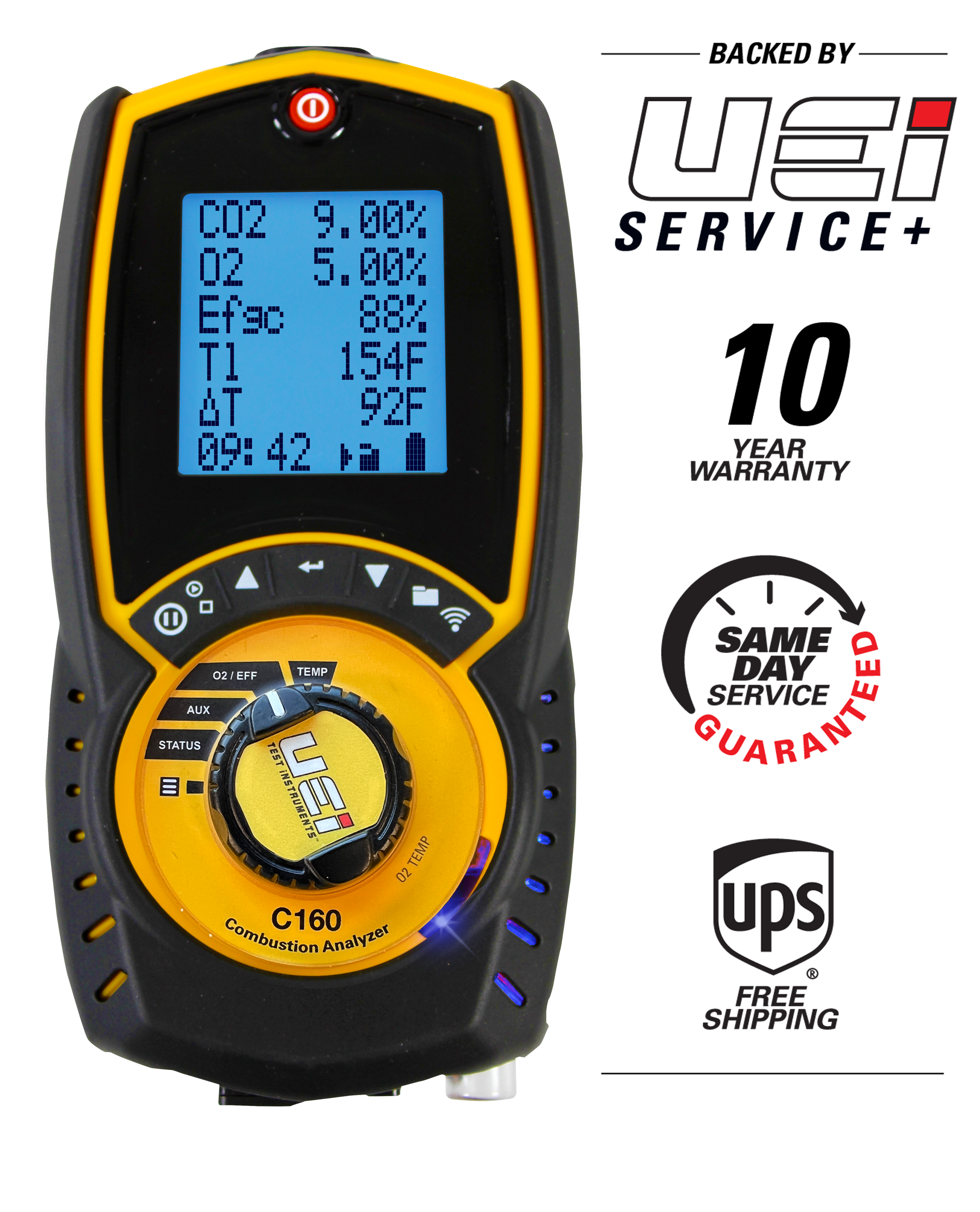

C160
The C160 Residential Combustion Analyzer equips HVAC/R professionals to install and maintain furnaces and boilers to optimize efficiency and reduce fuel costs.

The C160 combustion analyzer is eligible for UEi Service+, which offers transparent recertification pricing, warranty extensions up to 6 years from the date of purchase, 24-hour turnaround, and free UPS Ground shipping to and from our ISO certified Indianapolis service center.

C160 has two levels of sensor protection; a NOx filtered CO sensor and Low Flow Detection. It comes with high altitude compensation to maintain accurate readings at any altitude, an auto-purge shut off, and 8 Pre-programmed fuels including Natural Gas and Propane.

The C160 has a 6-Line display to view readings on one screen, which is a favorite among technicians. The DMM Style dial makes it easy to select the test needed. It also features a water trap to protect the sensor with a check light to remind to look for condensate built-up, a magnetic boot for hands-free operations, and an IR printer port to print to an optional printer, making it easy to document test results for later analysis.


Up to 6 Year warranty with annual recertification Yes
Eligible for UEi Service+ Yes
2 Types of sensor protection Yes
NOx Filtered Yes
Low Flow Detection Yes
Backlight Yes
Protective boot or overmolding Yes
Preprogrammed Fuels 8
Start time 30 second
High altitude compensation Yes
Memory Positions 30
Magnetic mount Yes
Warranty 1-Year limited
Digital Yes
Automatic fresh air purge Yes
Number of display parameters 6 line
Protective Water Trap Yes

CO 2000ppm
CO2 20%
O2 21%
Flue temperature 32˚ to 1112˚F
Inlet temperature 32˚ to 1112˚F

CE Conformity Yes
RoHS Yes
REACH Compliant Yes
AHRI 1260 Standard AHRI 1246 Standard

Quick Start Guide Yes
Batteries Rechargeable 3 (AA)
USB cable Yes
Charger WIR0067
