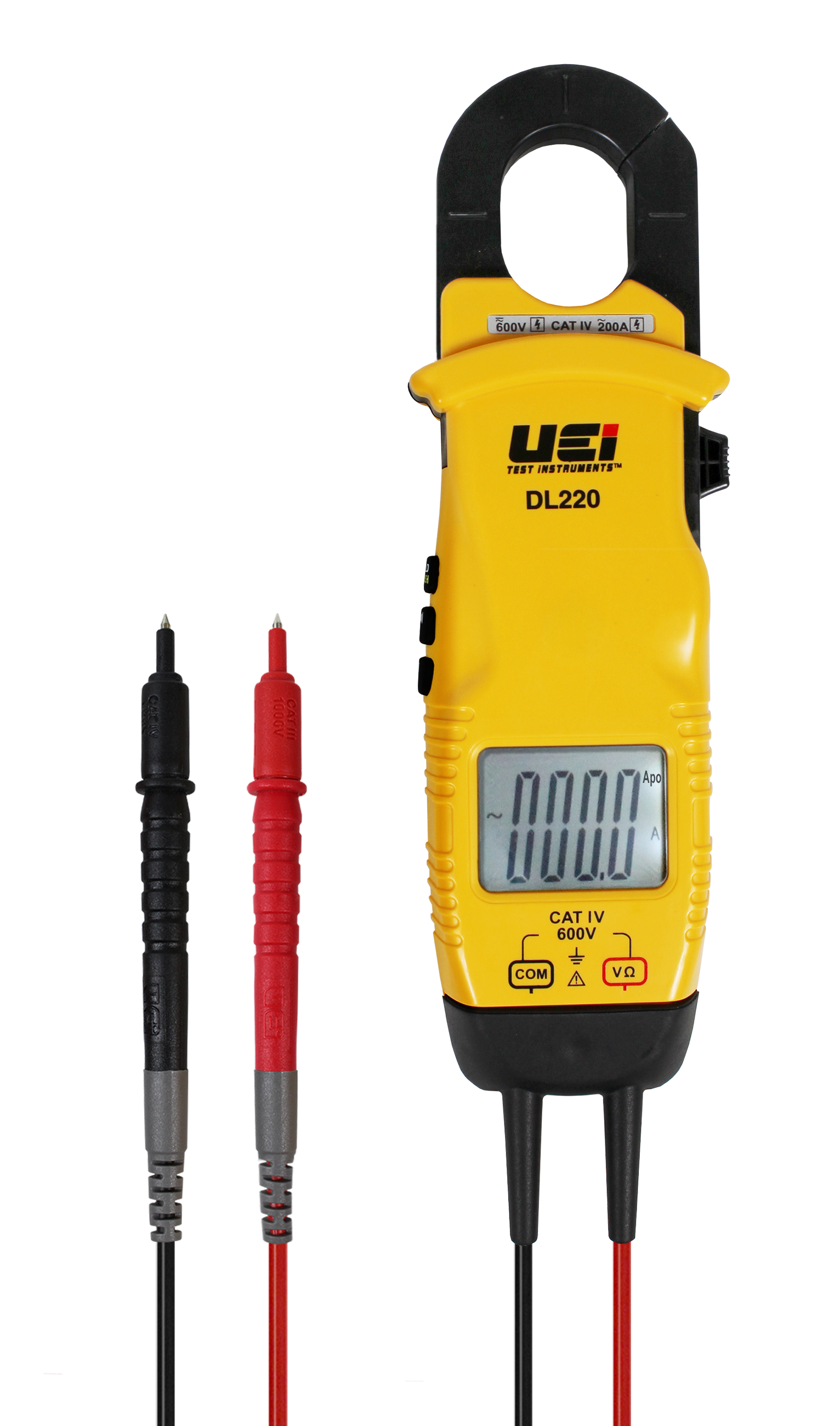

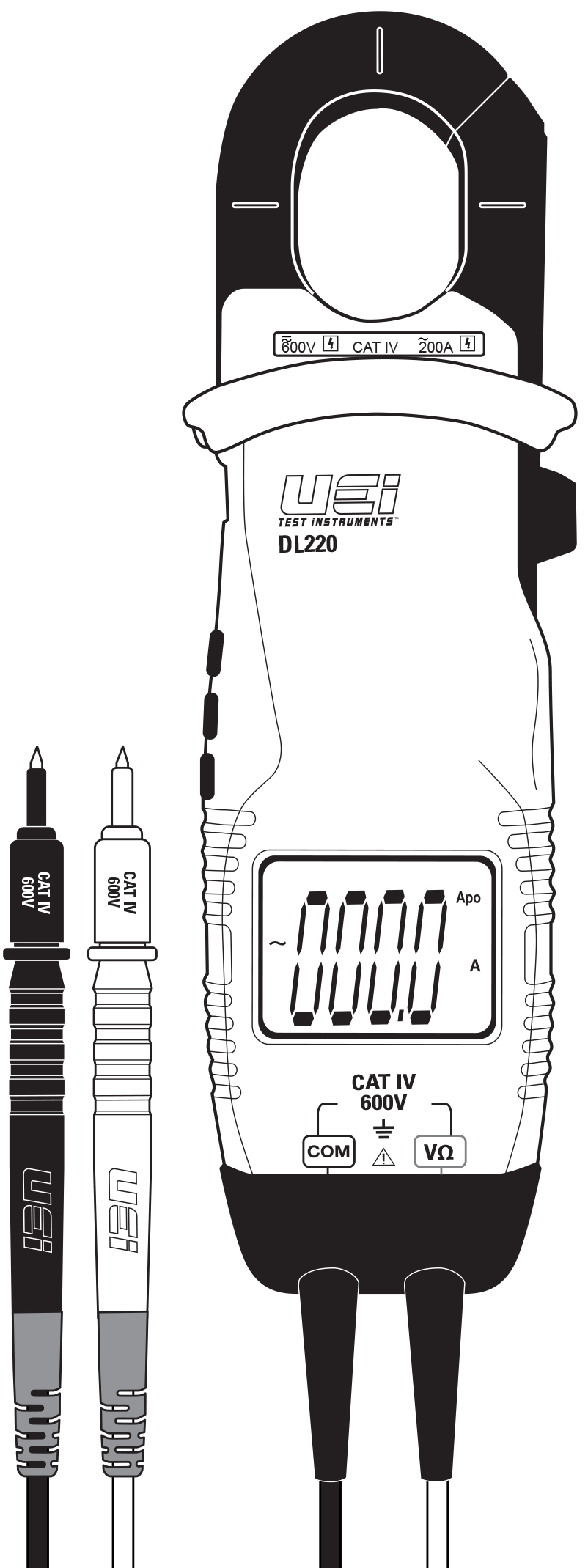

CATIV Clamp Meter and Volatge Tester w/ Inrush
DL220
The CATIV Clamp Meter and Voltage Tester is more than a clamp meter, more than a fork meter and more than a multimeter. With its unique sliding jaw clamp design, it can fit into tighter work spaces than normal clamp meters. Featuring ranges of 600V AC/DC, 200A AC, 2000 Ohms resistance, and continuity and LRA Inrush, it is the new everyday meter.

Hold Auto Hold
Ranging Auto
Auto power off Yes
Display count 2000
Low battery warning Yes
Backlight Yes
Warranty 2-Year limited

AC Volts 600V
DC Volts 600V
AC current (amps) 200A
Resistance (Ohms) 2000Ω
Continuity Yes
LRA Inrush Yes

Drop Protection 6 foot
Ingress Protection 41
ETL listed 3rd edition
IEC 61010 3rd ediition
CE Conformity Yes
CAT Rating CATIV 600V
RoHS Yes

Manual (Eng) Yes
Manual (Spa) Yes
Manual (Frn) Yes
Test Leads Yes
Batteries AAA (2)
Pouch/Cases Yes

Video 1
