Smart Refrigerant Probes Deluxe Kit w/ Vacuum Gauge

APP NOTICE: June 22nd 2020

The Android™ version of the APP used with the HUB8 is available on Google Play.

The iOS ® version of the APP (1.3) used with the HUB8 is now available on The App Store.

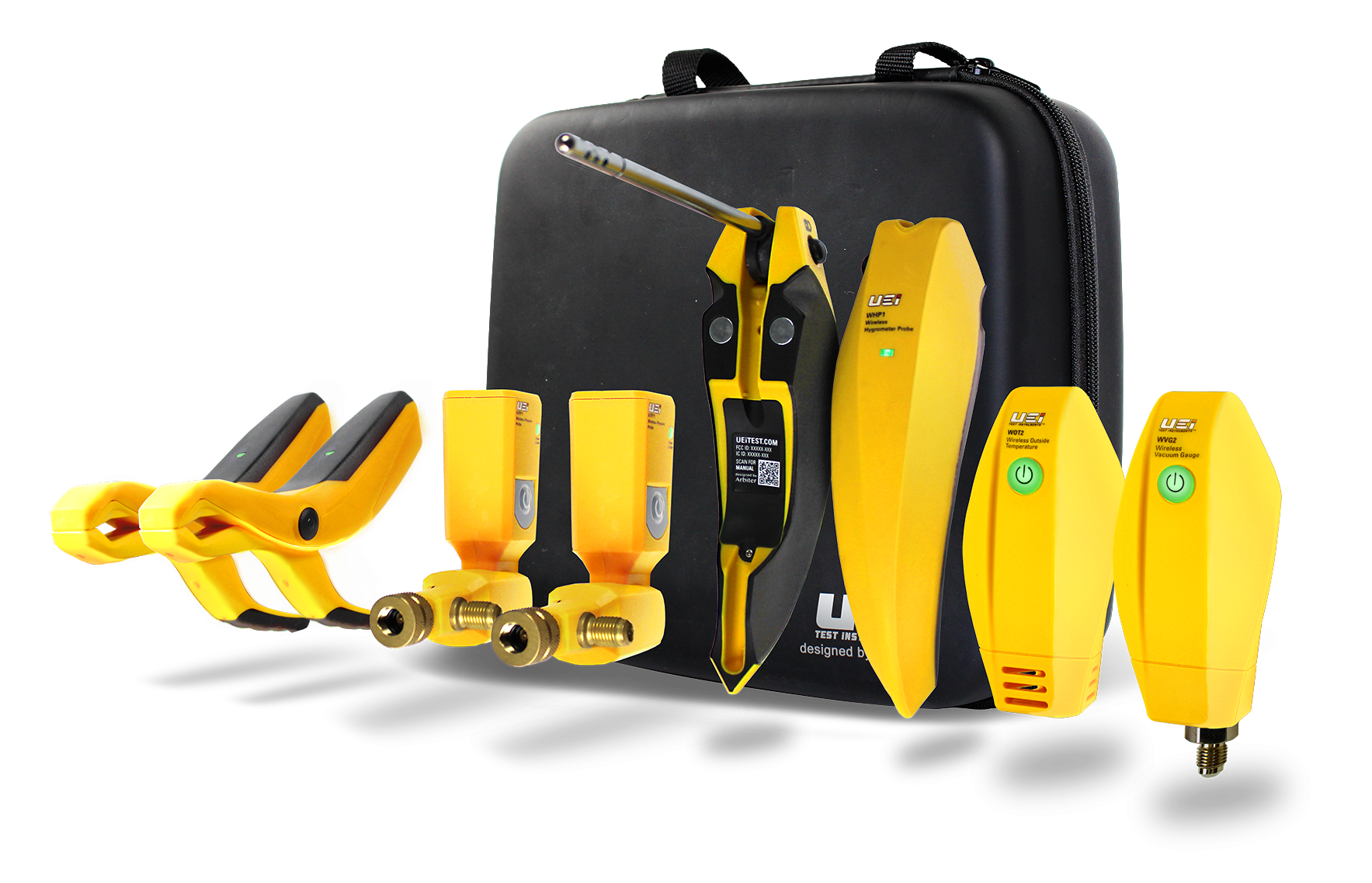

The HUB8 Smart Refrigeration Probes Deluxe Kit is the most complete and convenient wireless refrigeration probe kit available today. The HUB8 makes it easier for you to service and charge air-conditioning and refrigeration systems. The addition of the wireless Vacuum Gauge and Outdoor Thermometer probe integrates real-time Target Superheat, Evacuation and Rise Test calculations into the App. This provides a more accurate, efficiency and cost-effective charge on the system allowing all your vacuum, refrigeration and air parameters to be viewed from one location.

Wireless output Yes
Free App Available Yes
Selectable refrigerants Yes
Selectable units Yes
In App temperature split kit and psychrometric calculations Yes
In App system refrigerant charging calculations Yes
Pass thru ports for easily adding or recovering refrigerant without disconnecting Yes
180 degrees swivel for easy use in cramped work spaces Yes
Highly accurate thermistor drifts less than thermocouples and doesn’t require field calibration Yes
Magnetic mount Yes
Warranty 1 Year limited

Hygrometer - Temp range 32˚ to 140˚F
Pressure - Range 0 to 20000 microns
Pipe Clamp - Temp range 32˚ to 180˚F
Pressure 0 to 725 PSIG
Super Heat 32˚ to 180˚F
Subcool 32˚ to 180˚F
Vapor/Liquid Saturation 32˚ to 180˚F
Relative Humidity 0% to 100%

CE Conformity Yes
FCC/IC Compliant Yes

Manual (Eng) Yes
Batteries 14; 4 (AAA), 10 (AA)

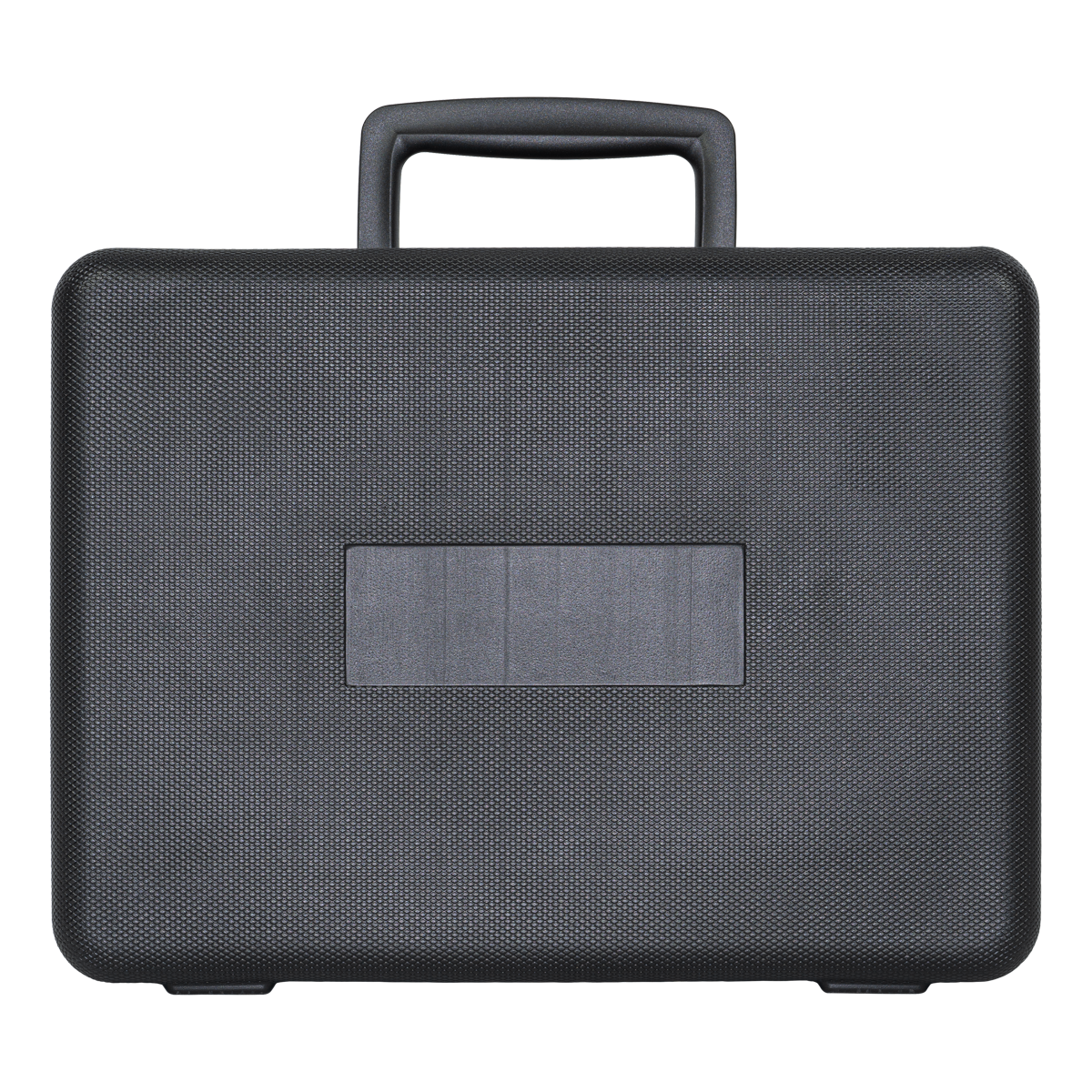

Pouch/Cases Yes
Pipe Clamp Probe WPC2 (2)
45-degree Coupler 17221
Wireless Outside Temperature Probe WOT2
Wireless Hygrometer probe WHP1 (2)
Wireless Vacuum Gauge Probe WVG2
Wireless Pressure Probe WPP1 (2)
