HVAC Clamp Meter Kit Includes ATTPC4, EPC, INF165C & AC550 Backpack
HVACKIT

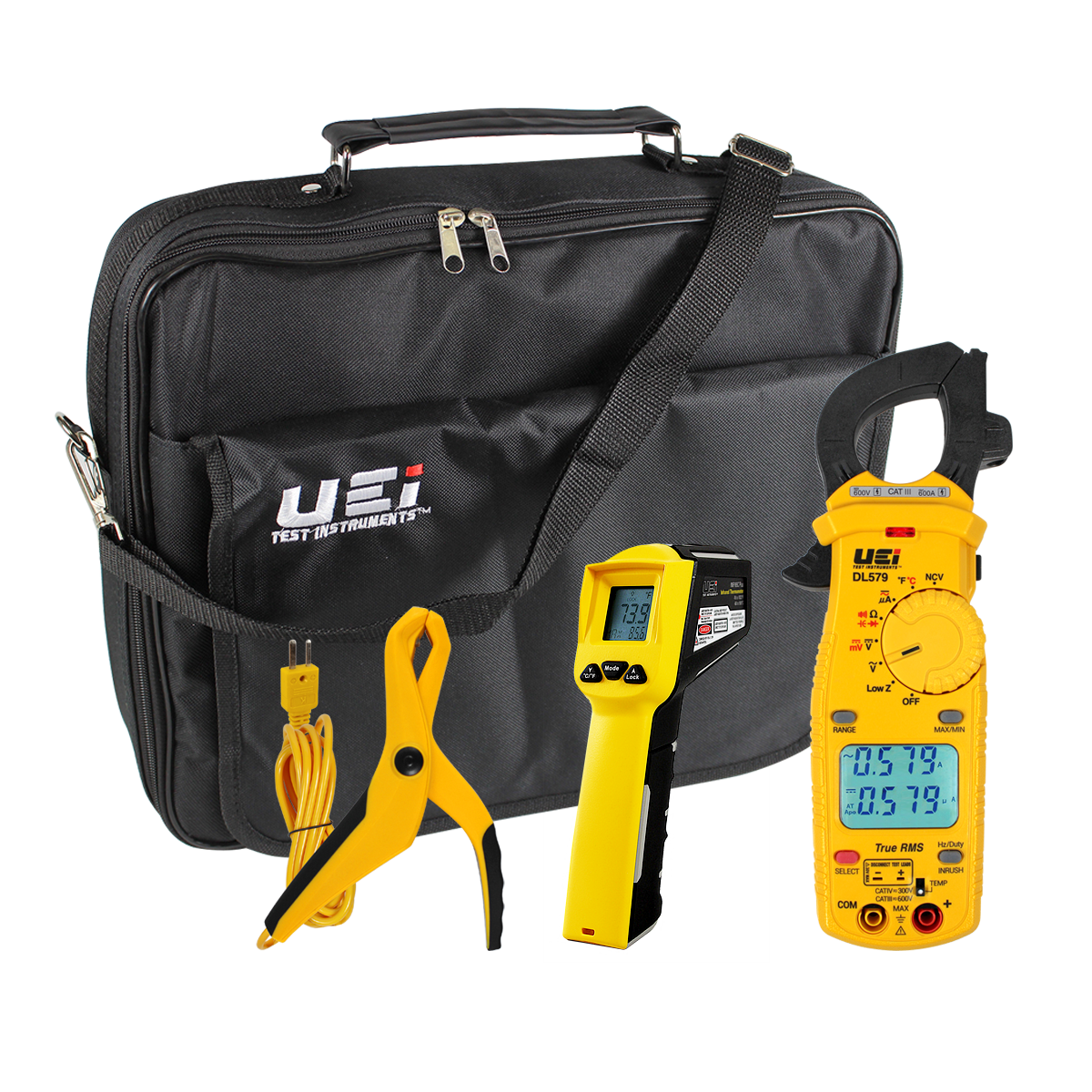

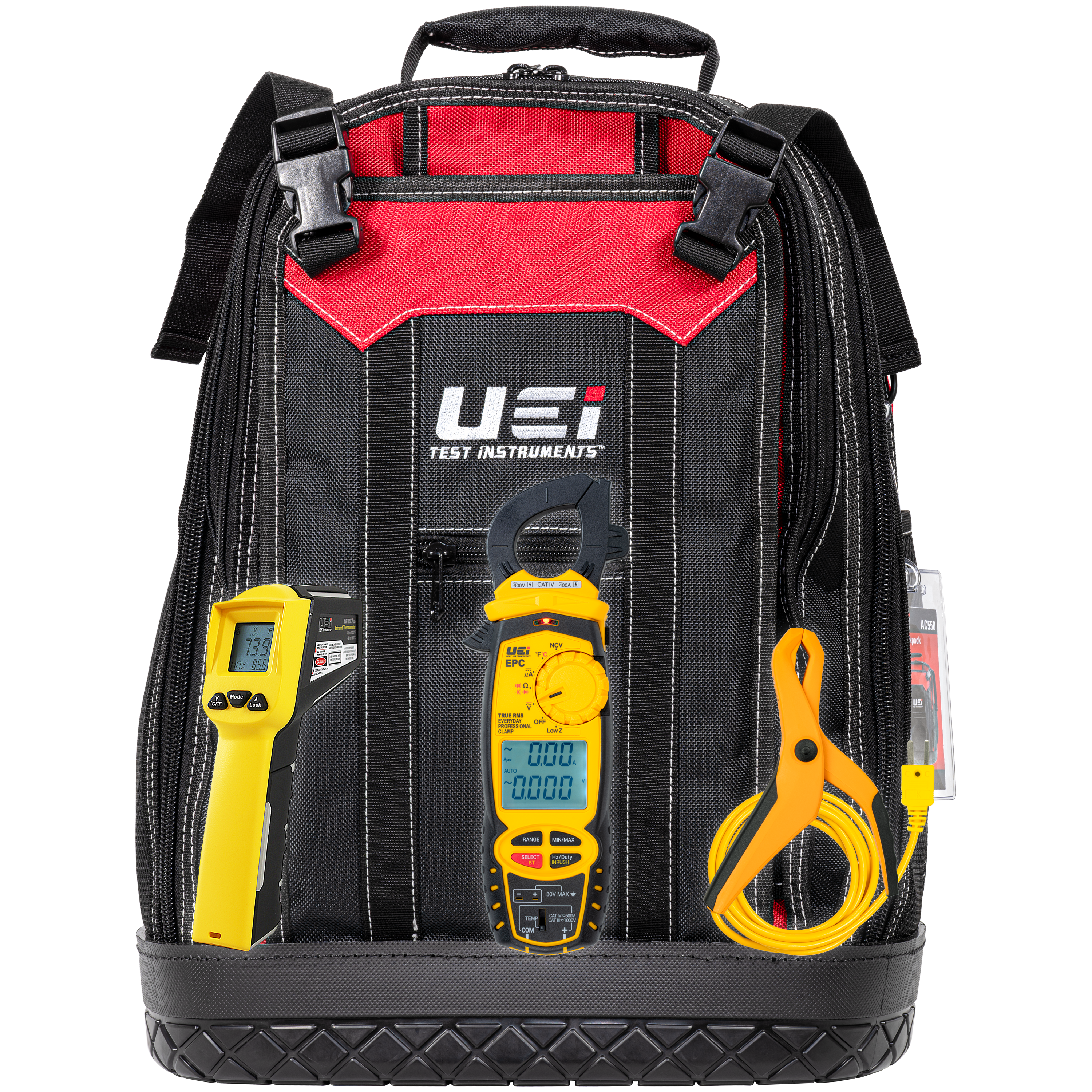

The UEi HVACKIT combines the most commonly used test instruments in a convenient foam lined carrying case, protecting the instruments while keeping them readily available for testing needs. includes EPC Everyday Professional Clamp meter, INF165C infrared thermometer, ATTPC4 compact K-Type pipe clamp, and AC550 tool backpack.

The EPC is safety rated for 400A at CAT IV 600V / CAT III 1000V. It features AC/DC Volts, LRA Inrush, temperature, capacitance, duty cycle, AC amps, DC microamps, frequency via leads, non-contact voltage, resistance, continuity, and diode testing.

The ATTPC4 is a wired K-Type pipe clamp with a thermally isolated probe to protect readings from ambient temperatures. Its tough and compact design allows you to make secure connections in workspaces with tight clearances.

The INF165C infrared thermometer features a unique circular laser pattern with a 12:1 distance-to-spot ratio. It also covers the HVAC essential temperature range for reliable remote testing with selectable emissivity and a maximum value capture.

HVACKIT is backed by a 1-Year limited warranty.

Dual Display Yes
Backlight Yes
Temperature Differential Yes
Hold Data Hold
Min/Max Yes
Ranging Auto/Man
Auto Power Off Yes
Display Count 6000
Low Battery Warning Yes
Worklight Yes
Detachable Head Yes
Temperature Inputs 2
Protective Boot/Overmolding Yes
Selectable Units Yes
Magnetic Mount Yes
Warranty 1-Year limited
Selectable Emissivity Yes

TRMS Yes
DC Volts 600V
AC Volts 750V
Frequency (Hertz) - Test lead input 99.99Hz
Duty Cycle (%) Yes
Resistance (Ohms) 60 MΩ
Diode Yes
Capacitance (Farads) 2000µF
Continuity Yes
DC Micro Current (Amps) - Test lead input 2000µA
Temperature -328˚ to 2462˚F
NCV Detection Yes
AC Current (Amps) - Test lead input 600A
AC Millivolts 600mV
Laser Type Circular
Distance-to-Spot Ratio 12:1

UL Listed cULus
IEC 61010 2nd edition
CAT Rating CATIV 600V/CATIII 1000V
RoHS Yes

Meter EPC
Test Leads ATL70
Alligator Clips Yes
Batteries AAA (6)
Pouch/Case AC550
Pipe Clamp Probe ATTPC4
Infrared Thermometer INF165C
