Flue Gas Analyzer with options for up to 7 gas measurements

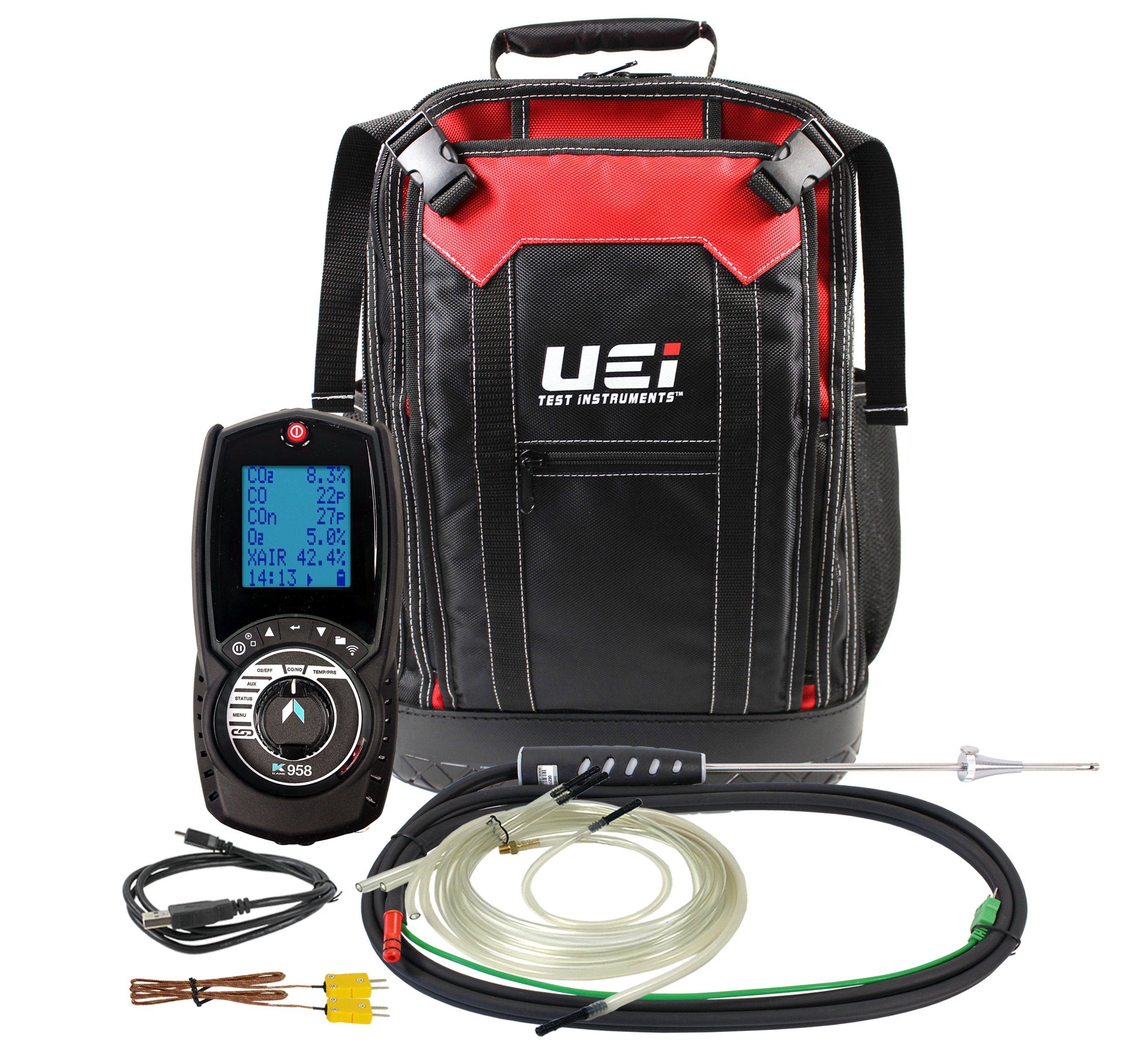

KANE958

KANE958 analyzers offer several options to custom equip it to your individual needs. Due to the customization, you can order this analyzer using the following step-by-step guide. Sensors are installed at our ISO certified lab in Indianapolis, IN.

KANE958 Base Features

  • Up to 10 Year warranty with annual recertification
  • Eligible for UEi Service+
  • LINK capability to wireless probes
  • 6 line back lit display
  • Over range protection pump
  • NOx filtered & H2 compensated CO sensor
  • Low flow detection to protect reading accuracy
  • Measures:
          CO, CO2, Differential Pressure, Flue and Inlet Temperature
  • Calculates:
          Differential Temperature, Efficiency (Nett, Gross), Excess Air
  • Protective water trap
  • Protective boot with built-in magnet

Backlight Yes
Up to 10-Year Warranty with Annual Recertification Yes
Eligible for UEi Service+ Yes
Differential Pressure Yse
Link to Wireless Probes Yes
Low Battery Warning Yes
Wireless Output Yes
Free App Available Yes
Protective Boot/Overmolding Yes
Dual Pressure Input Yes
Preprogrammed Fuels 8
Memory positions 45
Magnetic Mount Yes
Warranty Up to 10-Year warranty with annual recertification
K-Type Input Yes
Digital Yes
Number of Display Parameters 6-Line
IR Printer Link Yes

CO H2 compensated up 10,000ppm (optional 100,000ppm)
CO2 Calculated
O2 Measured 0 to 25%
NOx Optional 0 to 5000ppm
Flue Temperature 0˚ to 1112˚F
Inlet Temperature 0˚ to 1112˚F
Differential Temperature Yes
Pressure Yes

CE Conformity Yes
RoHS Yes
REACH Compliant Yes

Manual (Eng) Yes (202212)
Batteries Rechargeable 3 (AA)
Pouch/Case AC550 (Backpack)
Flue Probe CP2T
USB Cable AACA5
Inlet Tube/Probe Connector SM11103 (2), SM11105 (2)
Particle Filter 17631
Pressure Tubing Yes
