SPMKIT - WIRELESS STATIC PRESSURE METER KIT | Kane USA
Home> Products> Smart Phone Connections> Pressure> Wireless Static Pressure Meter Kit for Static, Gas and Draft Pressures
Wireless Static Pressure Meter Kit for Static, Gas and Draft Pressures
SPMKIT

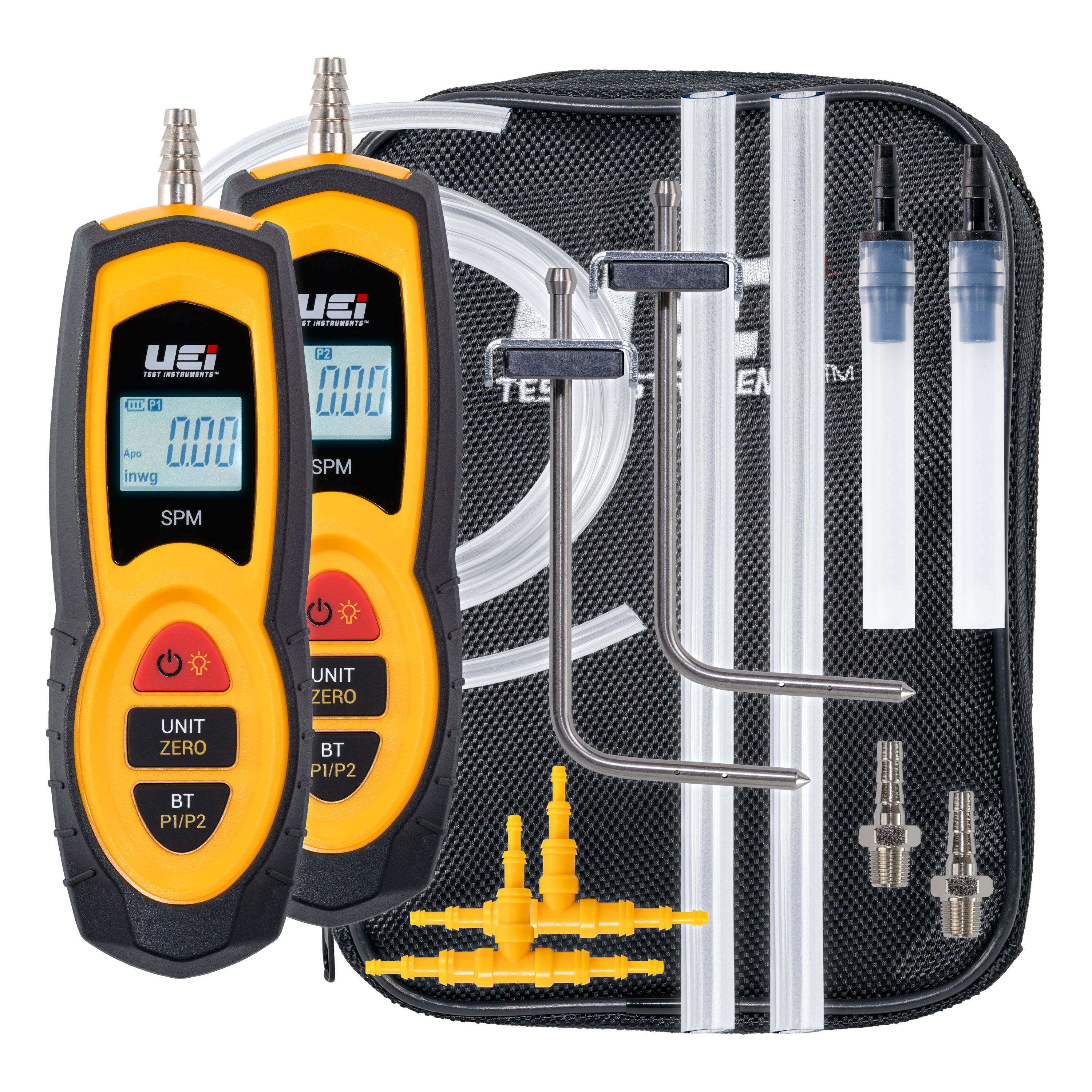

The UEi SPMKIT is made up of two compact and easy-to-use wireless differential manometers with wireless functionality. Easily view readings on the built-in display or wirelessly via the Free App, UEI LINK.

The SPMKIT features a measurement range to 80 inwg, 6 different user selectable units, and a zero function.

The SPMKIT also features a backlit display with battery level indication and a power saving Auto Power Off function, as well as protective rubber overmolding with a rear magnetic mount for handsfree operation. This kit includes the necessary accessories to test static pressure out of the box.

SPMKIT is backed by a 1-Year limited warranty.

Display Yes
Backlight Yes
Differential Pressure Yes
Auto Power Off Yes
Low Battery Warning Yes
Wireless Output Yes
Free App Available Yes
Protective Boot/Overmolding Yes
Zero Yes
Selectable Units Yes
Magnetic Mount Yes
Warranty 1-Year limited
Number of Display Parameters 1

Pressure Range 80 inwg

CE Conformity Yes
RoHS Yes
FCC/IC Compliant Yes
REACH Compliant Yes

Manual (Eng) Available for download
Pouch/Case AC319
Clear Flexible Tubing with Brass Fitting Yes (2)
Step Connector w/ 3.15” Tubing Yes (2)
60 Inch Pressure Tubing Yes
Magnetic Static Pressure Probe Tip Yes (2)
Stepped ‘T’ Fitting Yes (2)
Optional - Replacement Accessories
AC319
AC519
SPAK1
AGVA
TF100
ASP1
BF102
BF100
