Test and Check Kit Includes CD100A, DL579, EM152, PDT550
Zoom
Loading…

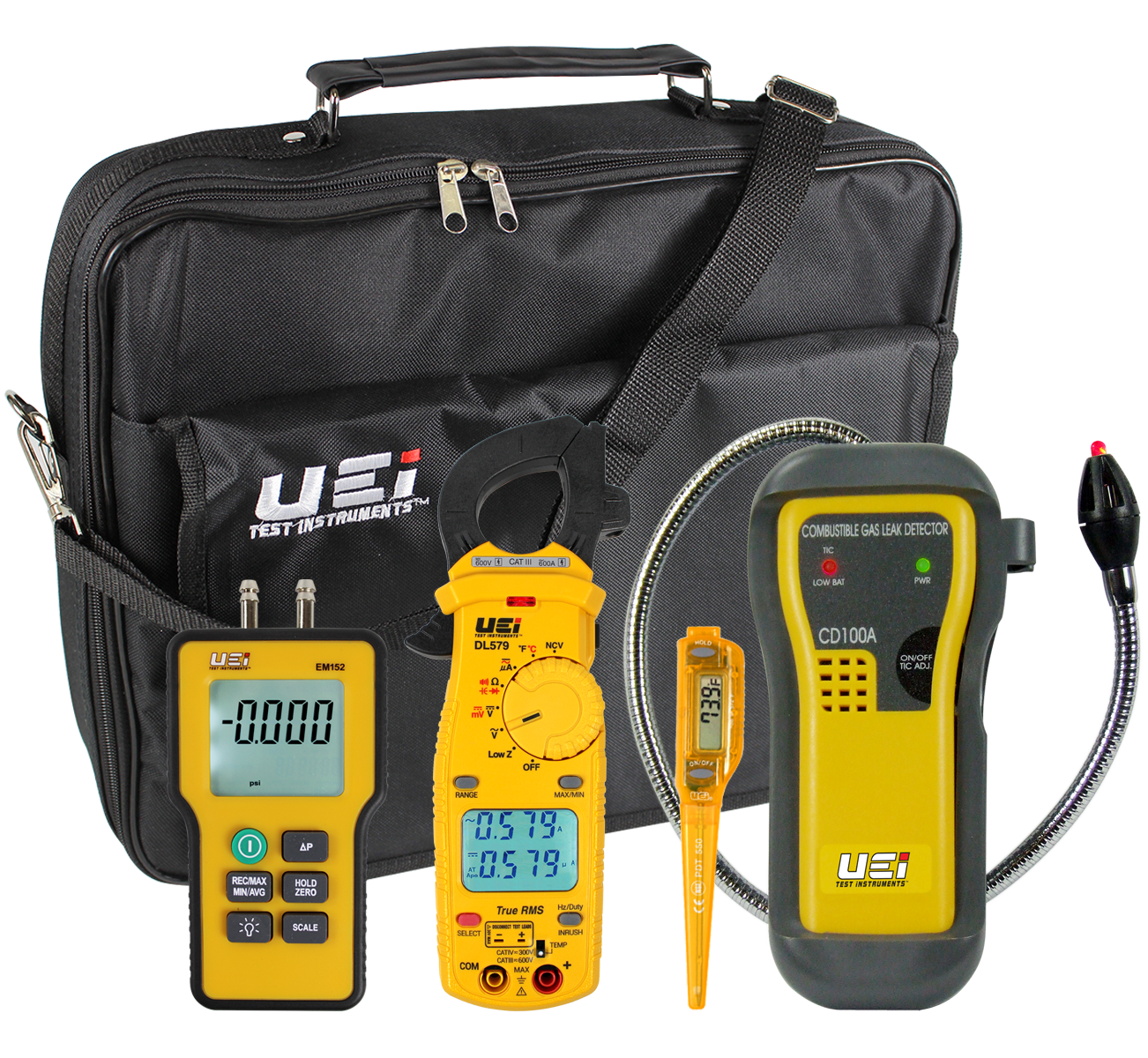

Test and Check Kit Includes CD100A, DL579, EM152, PDT550
TACK15
Convenient Test and Check Kit for quick testing. Includes True-RMS clamp meter, combustible leak detector, dual input manometer, NSF waterproof thermometer, and a carrying case.
Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads
Backlight
Yes
Differential Pressure
Yes
Hold
Yes
Min/Max
Yes
Ranging
Yes
Auto Power Off
Yes
Display Count
6000
Low Battery Warning
Yes
Dual Display
Yes
Temperature Inputs
K-Type
Protective Boot/Overmolding
Yes
Dual Pressure Input
Yes
Selectable Units
Yes
Magnetic Mount
Yes
Warranty
Various
Gooseneck
18 inch
Adjustable Tic Rate
Yes
Audible and Visual Tic Rate
Yes
K-Type Input
Yes
Probe/Lead Storage
Yes
Waterproof
Yes
Dual Purpose Probe Cover
Yes
Digital
Yes
AC Current (Amps)
600A
DC Micro Current (Amps)
2000mA
AC Volts
750 AC
DC Volts
1000 DC
Resistance (Ohms)
60 MOhms
Diode
Yes
Capacitance (Farads)
6000µF
Temperature
-328˚ to2462˚F/-58˚F to 572˚F (-50˚ to 300˚C)
Frequency (Hertz)
99.99kHz
Duty Cycle (%)
1.0 to 99.0%
Continuity
Yes
NCV Detection
Yes
Low Z
Yes
LRA Inrush
Yes
DC Microvolts
600mV
AC Microvolts
600mV
Detection Sensitivity
50 ppm
Pressure
±60 InH2O
Ingress Protection
IP42
ETL Listed
Yes
CAT Rating
CATIV 300V/CATIII 600V
RoHS
Yes
NSF
Yes
FCC/IC Compliant
Yes
EN500082-1
Yes
TWA & STEL
Yes
Meter
DL579
Manometer
EM152
Leak Detector
CD100A
Thermometer
PDT550
Manual (Eng)
Yes
Test Leads
ATL55
Alligator Clips
AAC3
Batteries
AAA (2), 9V (2), AB13
Pouch/Case
Yes
45-Degree Coupler
Yes
Pressure Tubing
Yes
Data Sheet - English
