Heat Pump Install Kit

This Kit provides the recommended test instruments required by heat pump start up manuals for proper installation and maintenance. Most equipment warranties require initial install readings to be documented upon installation.

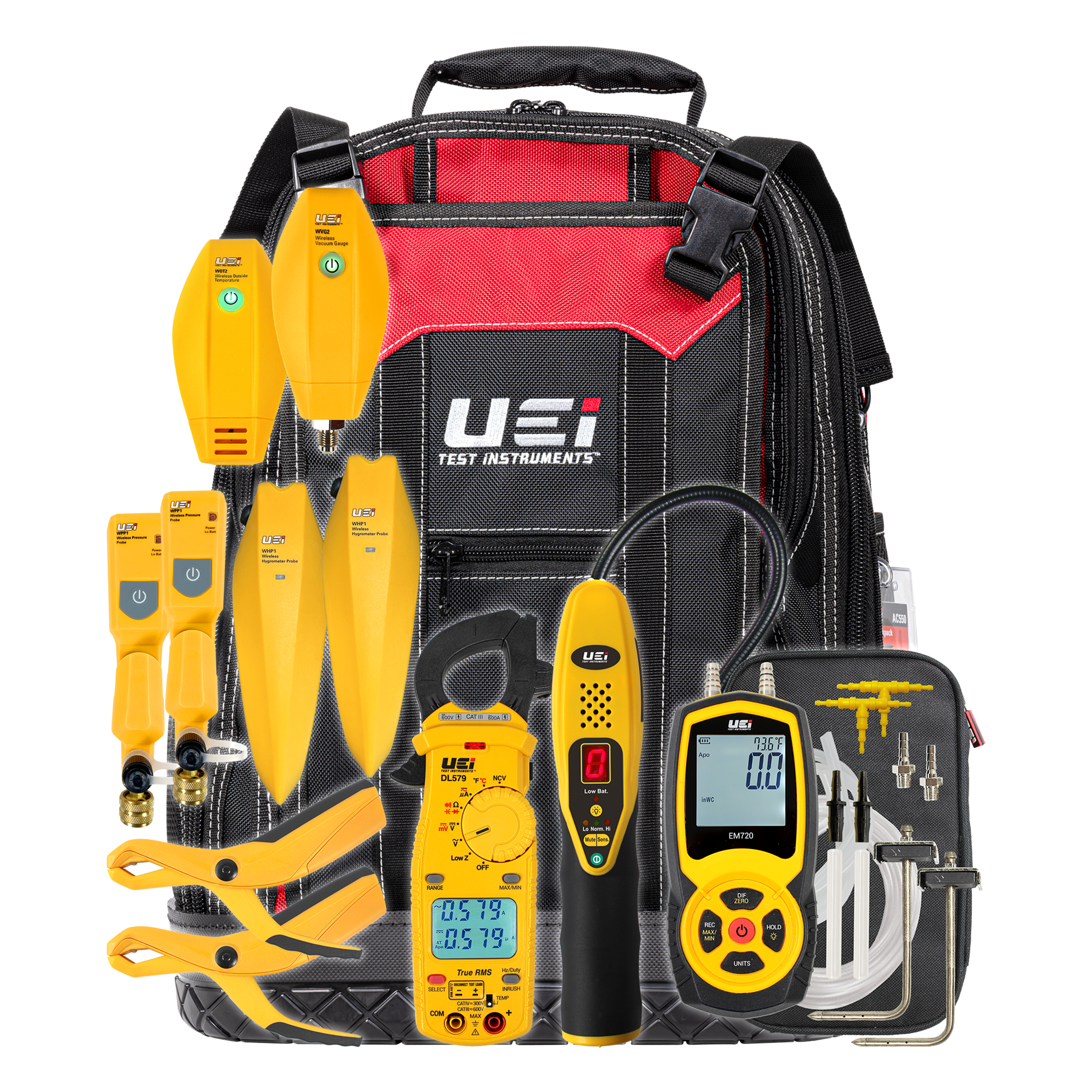

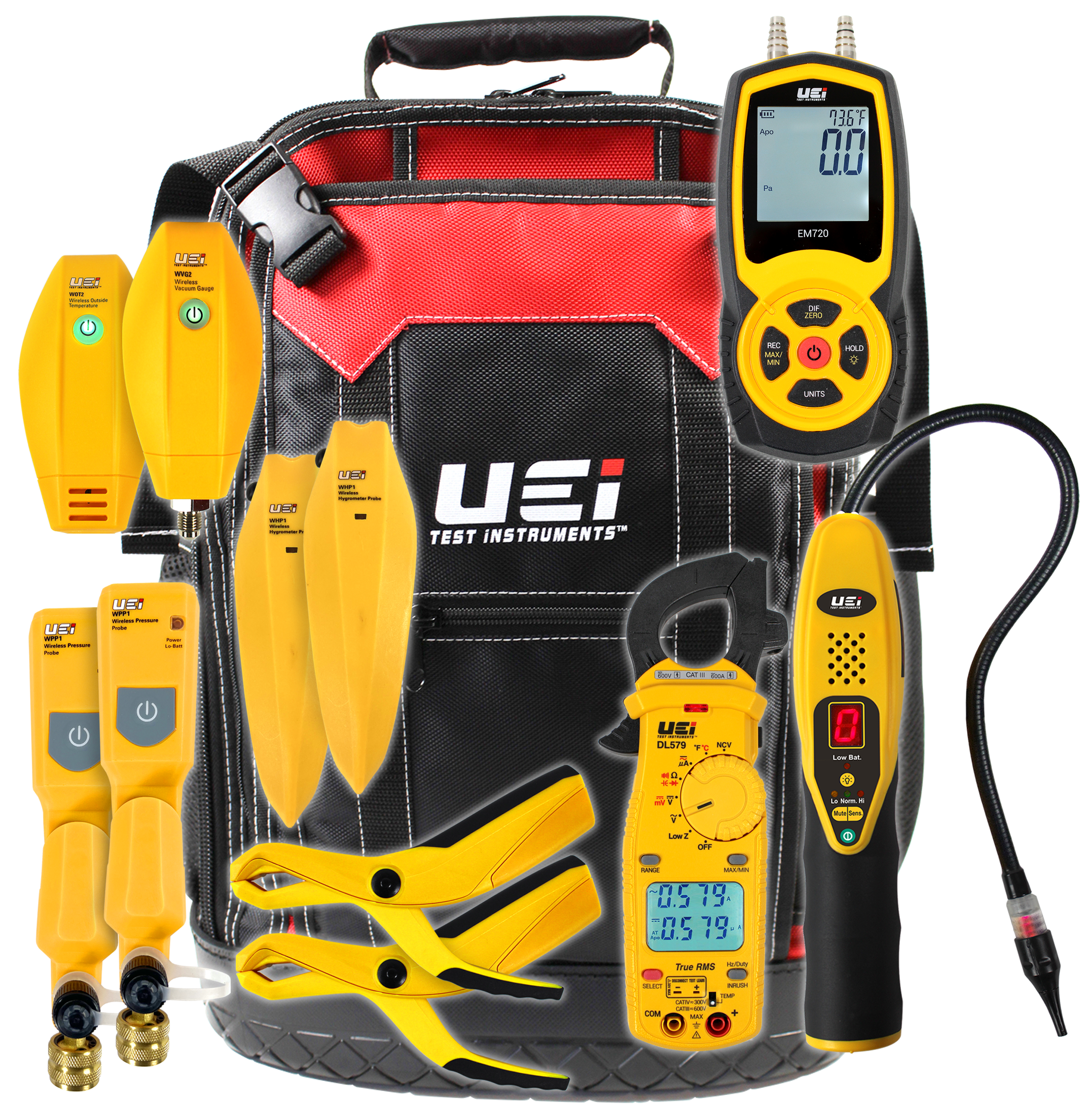

511KIT is packed in this UEi Tool Backpack. Built rugged, waterproof base, two compartments with inner pocket options and includes D-clip.

This equipment helps confirm:

Manufacturer requirements to maintain warranty

CFM via external static pressure test

System is free from refrigerant leaks

Proper high voltage to power supply and ground

Low voltage meets wiring diagram requirements

Evacuation Suction & Liquid valves

Temperatures of Suction & Liquid lines

Superheat and Subcool values for adjustments


Hold Yes
Min/Max Yes
Auto power off Yes
Display count 6000
Dual display Yes
Temperature inputs K-Type
Dual pressure input Yes
Warranty Various
Digital numeric leak indicator Yes
K-type input Yes
Digital Yes

AC volts 750V AC
DC volts 1000V DC
AC current (amps) 600A AC
AC micro current (amps) 2000µA
DC micro current (amps) 2000µA
DC micro volts 600mV
AC micro volts 600mV
Resistance (Ohms) 60 MΩ
Capacitance (Farads) 6000µF
Frequency (Hertz) 99.99kHz
Duty cycle (%) 1.0 to 99.0%
Temperature -328˚ to 2462˚F
Continuity Yes
Diode Yes
NCV detection Yes
Hygrometer - temp range 32˚ to 140˚F
Microns range 0 to 20000 microns
Pressure range ±60 InH2O
Pipe Clamp - temp range 32˚ to 180˚F
Pressure 0 to 725 PSIG
Super Heat 32˚ to 180˚F
Subcool 32˚ to 180˚F
Vapor/Liquid saturation 32˚ to 180˚F
Relative humidity 0% to 100%
Detects Refrigerant
Senses HFC, CFC and HCFC refrigerants and blends Yes
Detection senisitivity .05 oz/year
LRA Inrush Yes
Low Z Yes

Ingress Protection IP42
ETL listed cETLus
IEC 61010 61010-1: 2012
CE Conformity Yes
CAT Rating CATIV 300V / CATIII 600V
RoHS Yes
FCC/IC compliant FCC
SAE J2913 Yes
ASHRAE 173-2012 Yes
J2791 certified Yes
EN 14624 certified Yes

Meter DL579
Manometer EM201SPKIT
Leak Detector RLD15B
Batteries AAA (4), AA (9),9V
Wireless Outside Temperature probe WOT2
Wireless Hygrometer probe WHP1 (2)
Wireless Vacuum Gauge probe WVG2
Wireless Pressure probe WPP1 (2)
Wireless Pipe Clamp probes WPC2 (2)
Tool backpack AC550
