Cable Length Meter

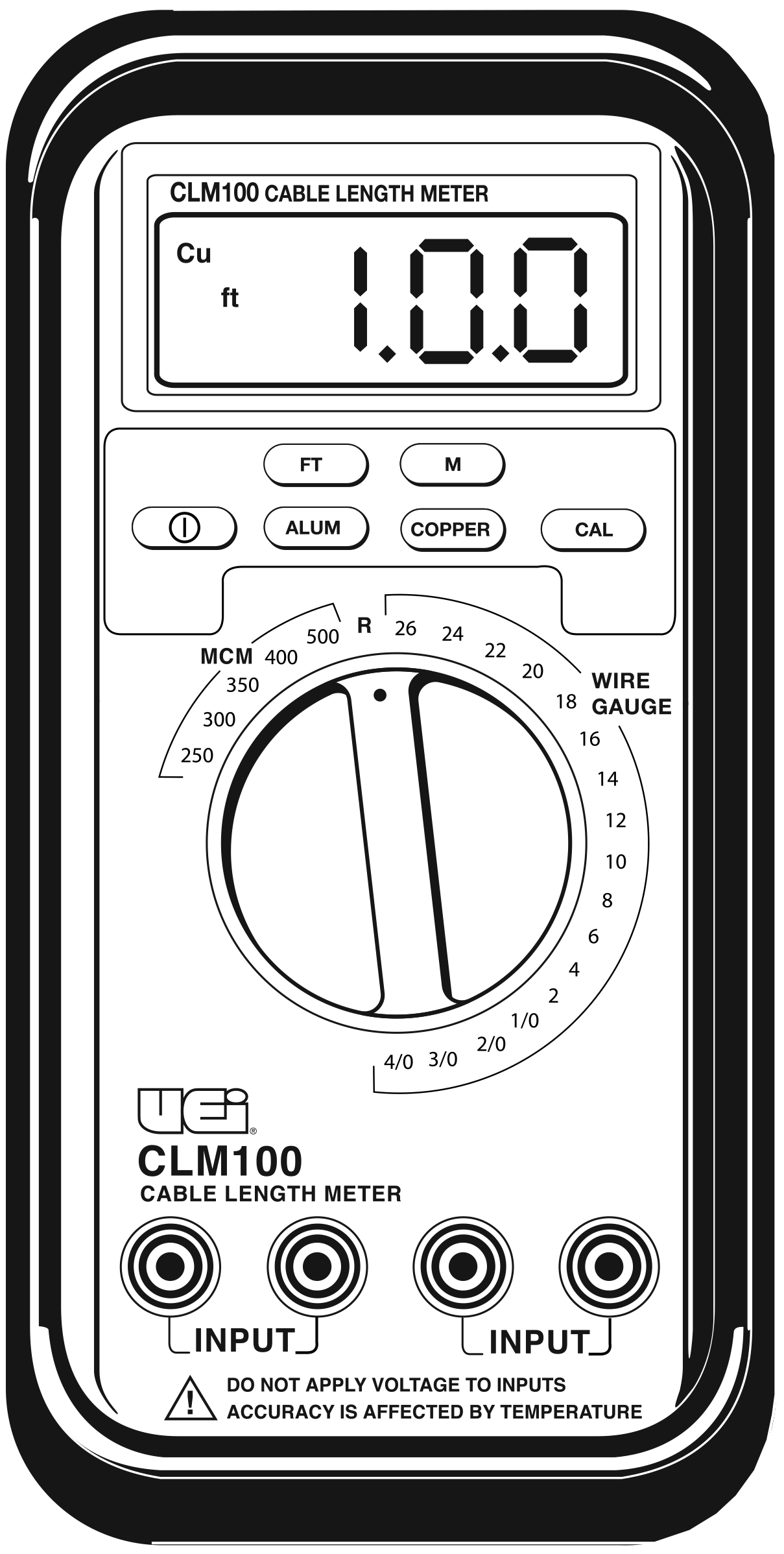

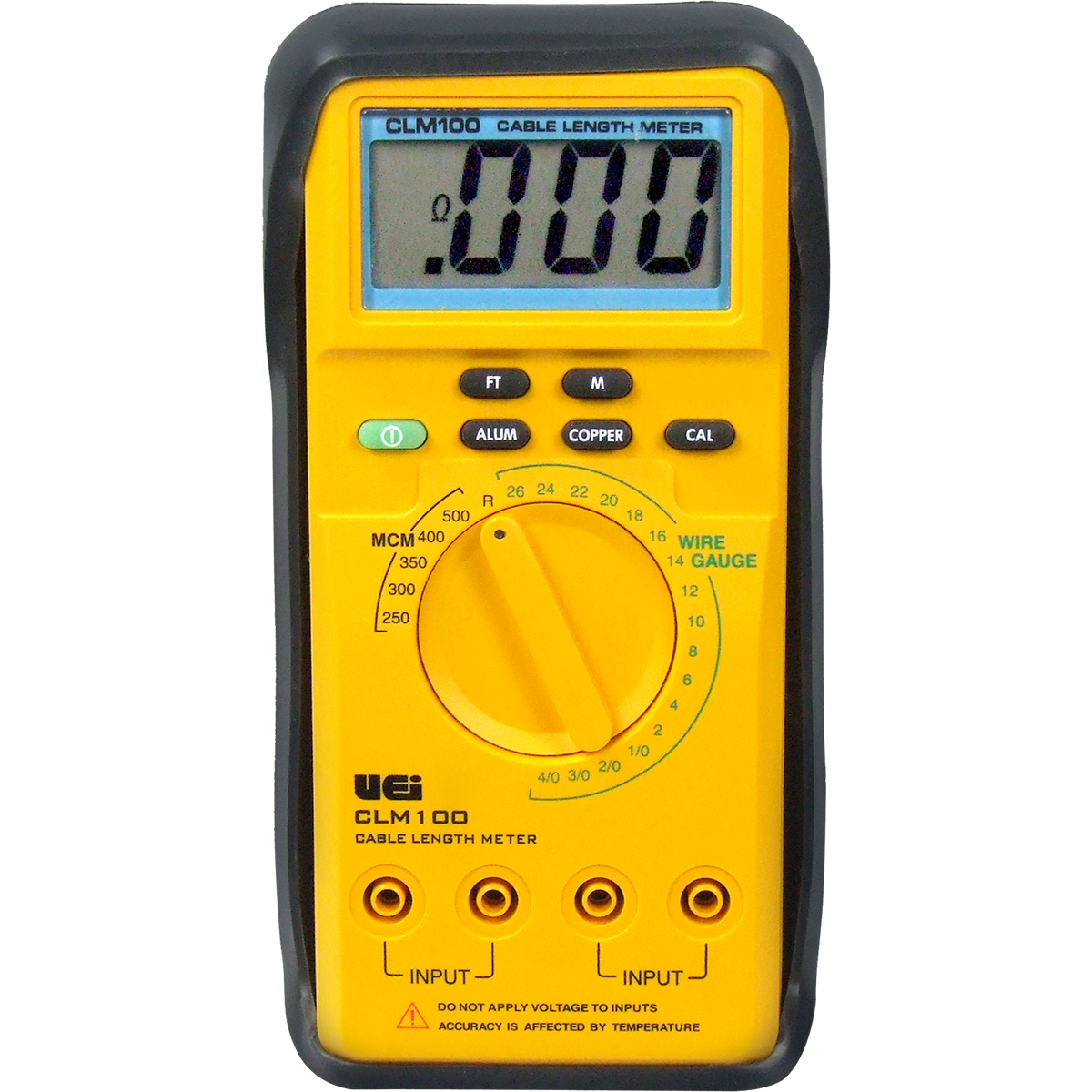

CLM100

The UEi CLM100 digital cable length meter is an excellent tool for measuring spooled cable/wire.

The CLM100 is a best seller and features a solid build and comes equpped with a ruggedized boot for reliable performance in the field. Currently being utilized by major utility companies, electrical contractors, wholesalers, and installers alike where quick and accurate inventory management or measurements are needed for job accountability. Simply attach the Kelvin Clips to both ends of the cable and adjust the indicator to match the wire gauge being measured. A built-in temperature compensation circuit ensures accuracy by compensating for the temperature of the wire.

CLM100 is backed by a 5-Year limited warranty.

Auto Power Off Yes
Protective Boot/Overmolding Yes
Selectable Units Yes
Warranty 5-Year limited
Copper or Aluminum Wires Yes
Temperature Compensation Yes

Resistance (Ohms) 0-65 Ω
MCM 250MCM to 500MCM
Cable Measure Length 15 to 30,000 feet
Wire Sizes 26ga to 4/0ga
Milliohms Yes

CE Conformity Yes

Manual (Eng) Yes
Manual (Spa) Yes
Manual (Frn) Yes
Test Leads Yes
Batteries 9V
Pouch/Case Yes

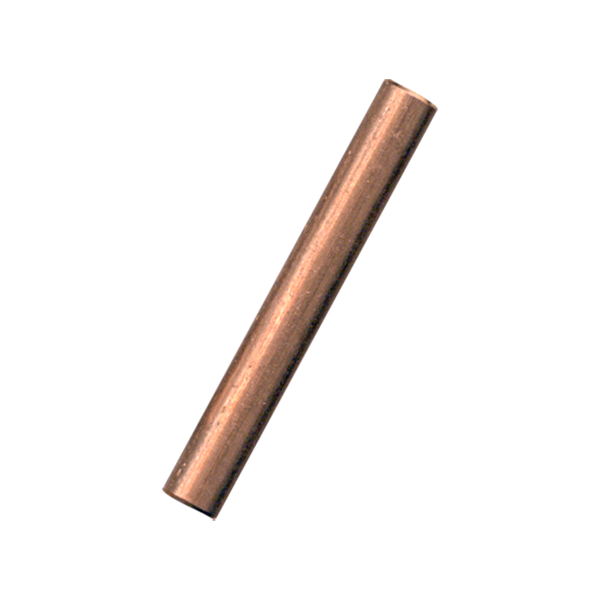

Calibration Bar Yes
Optional - Replacement Accessories

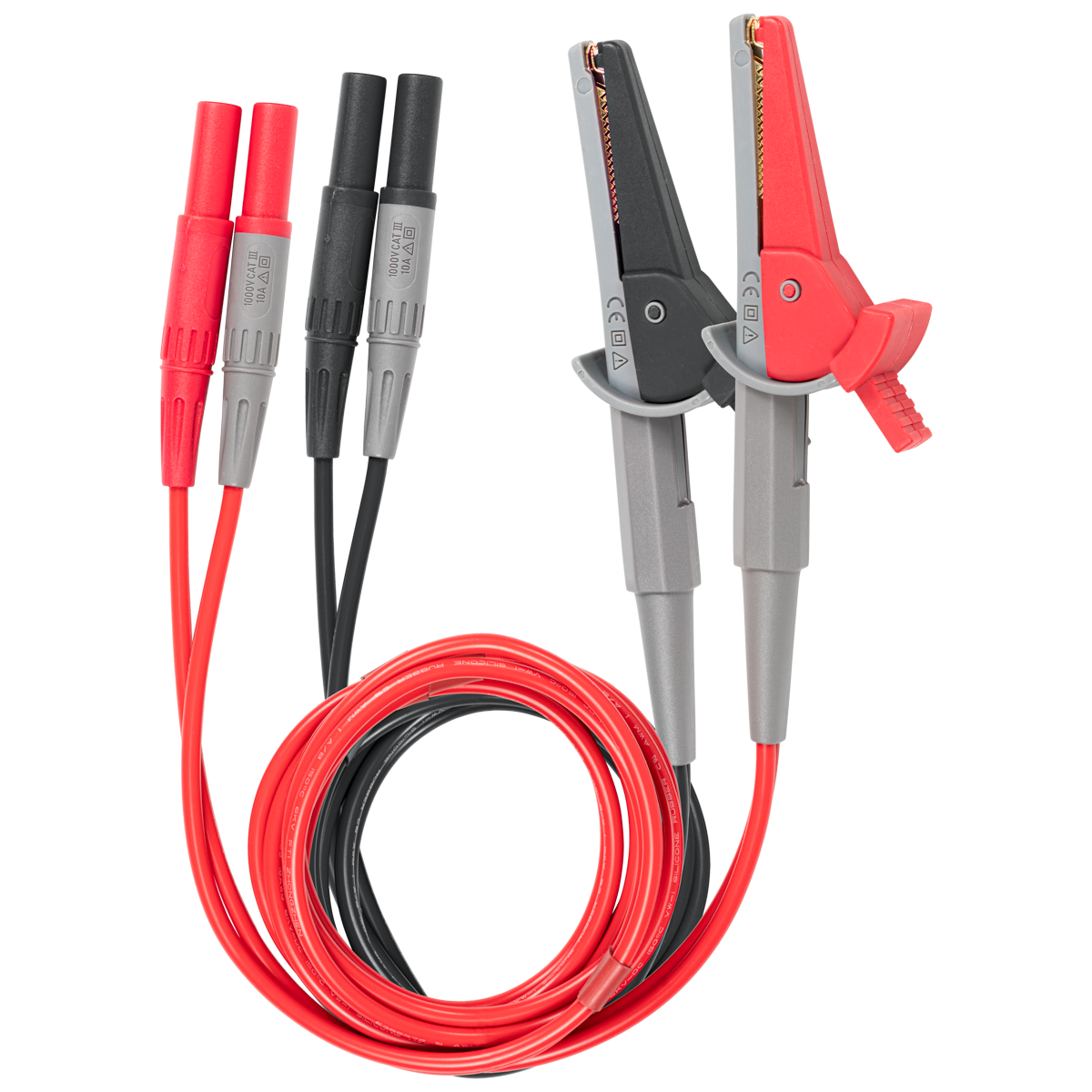

ATL190

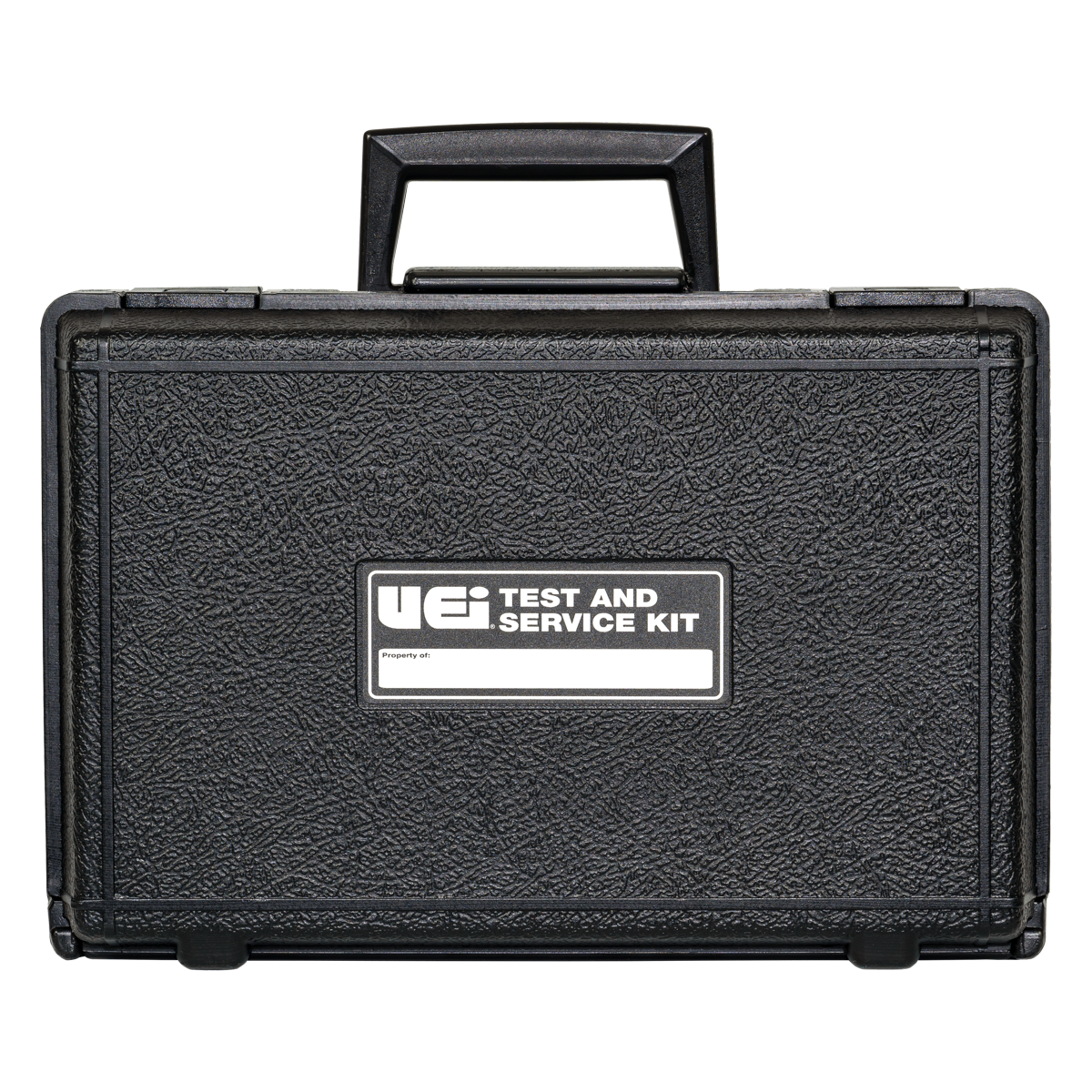

AC504
