600A Dual Display TRMS Clamp Meter w/ Temperature, Inrush, AMH2 Magnet w/ ATTPC4
DL579COMBO

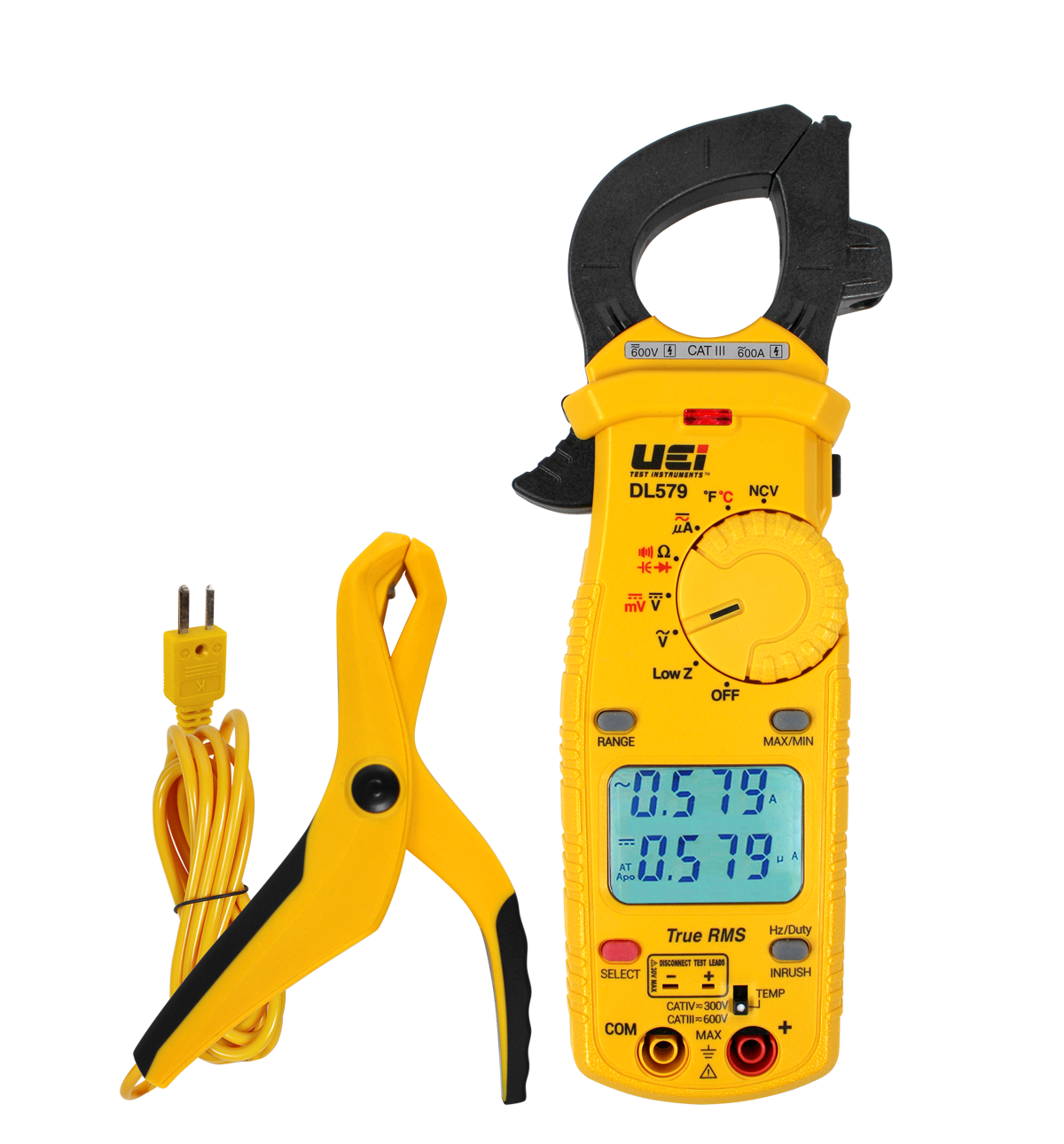

The UEi DL579COMBO includes a compact K-Type pipe clamp and 600A True-RMS HVAC/R clamp meter with a backlit dual display and magnetic hanging strap. Each meter includes a set of standard test leads, K-Type thermocouple, threaded alligator clips for hands-free testing, and a zippered carrying pouch.

The DL579 is safety rated at CAT IV 300V / CAT III 600V. It features Non-Contact Voltage (NCV), temperature readings, LOW Z, and DC millivolts as well as functions like AC/DC voltage, AC amps, AC/DC microamps, resistance, capacitance, frequency and duty cycle.

The UEi ATTPC4 is a wired K-Type pipe clamp with a thermally isolated probe to protect readings from ambient temperatures. Its tough and compact design allows you to make secure connections in workspaces with tight clearances.

DL579COMBO is backed by a 1-Year limited warranty.

Dual Display Yes
Backlight Yes
Hold Yes
Min/Max Yes
Ranging Auto/Manual
Auto Power Off Yes
Display Count 6000
Low Battery Warning Yes
Temperature Inputs K-Type
Magnetic Mount Yes
Warranty 1 Year limited
K-Type Input Yes
Digital Yes

TRMS Yes
AC Current (Amps) - Jaw input 600AAC
LRA Inrush Yes
DC Volts 1000VDC
AC Volts 750VAC
Frequency (Hertz) - Test lead input 99.99kHz
Duty Cycle (%) 1.0 to 99.0%
Resistance (Ohms) 60MΩ
Diode Yes
Capacitance (Farads) 6000µF
Continuity Yes
DC Micro Current (Amps) - Test lead input 2000µADC
AC Micro Current (Amps) - Test lead input 2000µAAC
Temperature -328°F to 2462 °F (-200°C to 1350°C)
Low Z Yes
NCV Detection Yes
DC Millivolts 600mV
AC Millivolts 600mV

Ingress Protection IP42
IEC 61010 cETLus 61010-1: 2012
CAT Rating CATIV 300V/CATIII 600V
RoHS Yes
FCC/IC Compliant FCC

Manual (Eng) Yes
Test Leads ATL55
Alligator Clips AAC3
Batteries AAA (2)
Temperature Probe ATT29
Pouch/Case AC560
Pipe Clamp Probe ATTPC4
Optional - Replacement Accessories
AC519
ATL55
AMH2
AJW1
AC560
ATTPC4
ABP3
ATHA1
ATL57
ATT29A
AAC3
