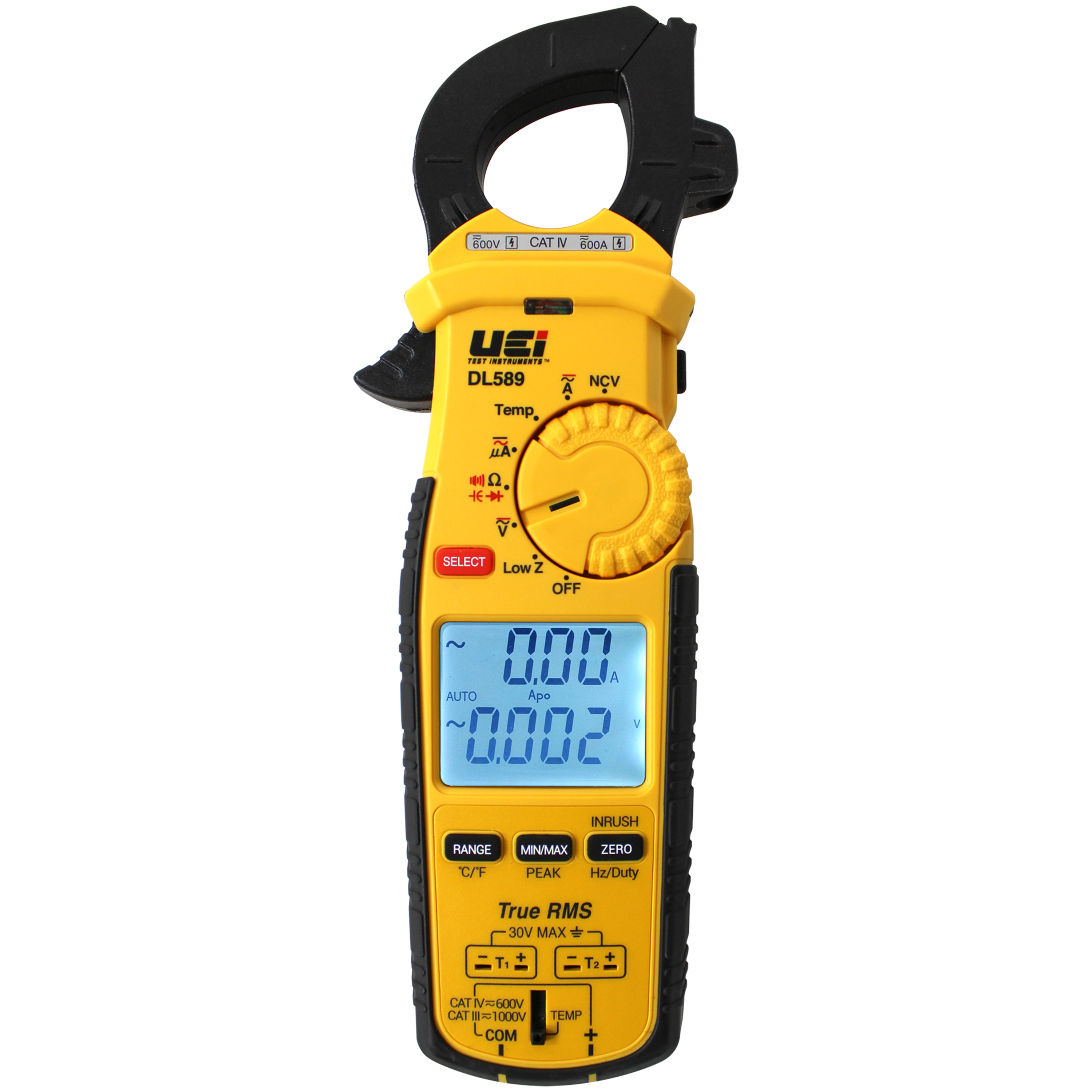

600A TRMS Clamp Meter w/ DC Amps, Inrush, Magnet
DL589
True-RMS Dual Display 600A Clamp Meter w/ DC Amps & Differential
Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads
Hold
Yes
Min/Max
Yes
Ranging
Auto/Manaul
Auto power off
Yes
Display count
6000
Low battery warning
Yes
Backlight
Yes
Dual display
Yes
Worklight
Yes
Temperature Inputs
K-Type
Temp differential
Yes
DC Zero
Yes
Protective boot or overmolding
Yes
Magnetic mount
Yes
Warranty
2 Year limited
Audible and visual alerts
Yes
K-type input
Yes
Digital
Yes
TRMS
Yes
AC Volts
750VAC
DC Volts
1000VDC
AC current (amps)
600A AC
DC current (amps)
600A DC
AC micro current (amps)
2000µA
DC micro current (amps)
2000µA
Resistance (Ohms)
60MOhms
Capacitance (Farads)
6000µF
Frequency (Hertz)
99.99kHz
Duty cycle
1.0 to 99.0%
Temperature
-328˚ to 2462˚F
Continuity
Yes
Diode
Yes
NCV Detection
Yes
Differential Temperature
Yes
K-type Temperature Range
-328˚ to 2462˚F
LRA Inrush
Yes
Low Z
Yes
UL Listed
UL 610101-1: 2012
ETL listed
cETLus
CAT Rating
CATIV 600V
Manual (Eng)
Yes
Test Leads
Silicone ATL58
Alligator clips
AAC3
Back Probes
ABP3 (2)
Batteries
4 (AAA)
Pouch/Cases
Zippered
Temp Probe
2 (ATT29)
K-Type thermocouples
Yes
Data Sheet - English
Manual - English
Manual - Spanish
Hi-Res Picture
