Back Probe Test Lead Kit
ATLBPK

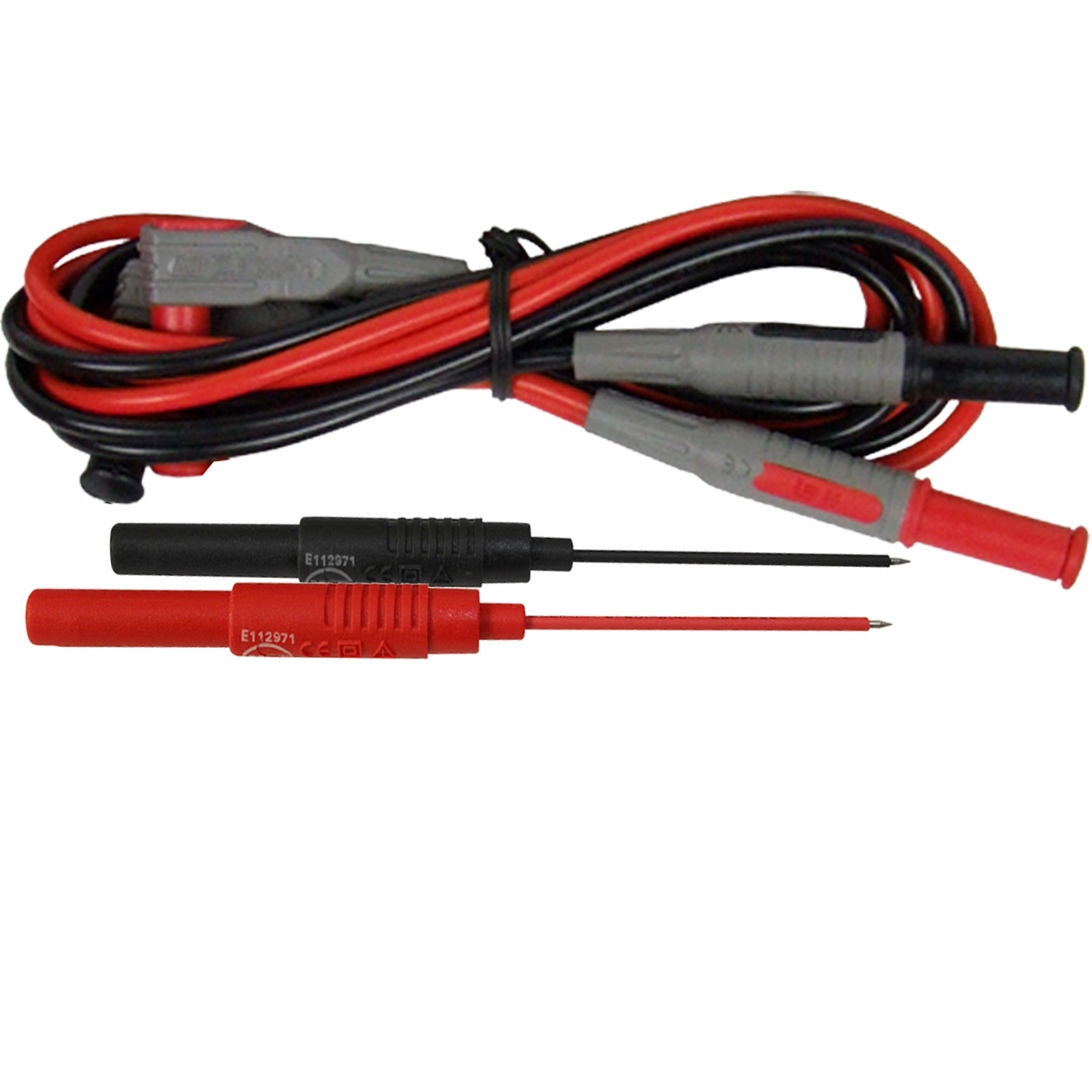

The UEi ATLBPK features our modular back probe set (ATL5) along with our modular test lead set (ATLTX).

Safety ratings:
ATLTX – CAT III 1000V 10A, ATL5 - CAT IV 600V 10A

The modular test lead set features a straight to right-angle connection, standard insulation, and an overall length of 40 in.

The ATL5 back probe set features color coded positive / negative probes and tips with a diameter of 1.25mm and a length of 48mm. Also included are protective caps to keep the probe tips sharp during storage.

The ATLTX uses 4mm input jacks with extra-long shrouds. The lead ends are straight and right-angle shrouded male banana clips with a shroud length of 21mm. They work with the following UEi products:

Current Products
DL369, DL379B, DL389B, DL569, DL579, DM505, DM515, DM525, IRT803, IRT807

Retired Products
DL389, DL419, DL429B, DL469, DL479, DL489, DM300, DM300A, DM310, DM383, DM383B, DM384, DM391, DM393, DM400, DM410, DM420, DM520, DM600, IRT3, UTL261, UTL291, UTL33T, UTLDM1, UTLDM2

The ATLBPK is also available as:

ATLTX: Modular Test Lead Set

ATL301KIT: Modular Test Lead Set, Fine Point Probe Set, Large Jaw Alligator Test Clip Set, Grabber Test Clip Set, and Carrying Pouch

ATLBPK is backed by a 1-Year limited warranty.



CAT Rating CAT IV 600V 10A

Modular Test Lead Set (ATLTX) Yes
