Modular Test Lead Extension Wire
ATLTX

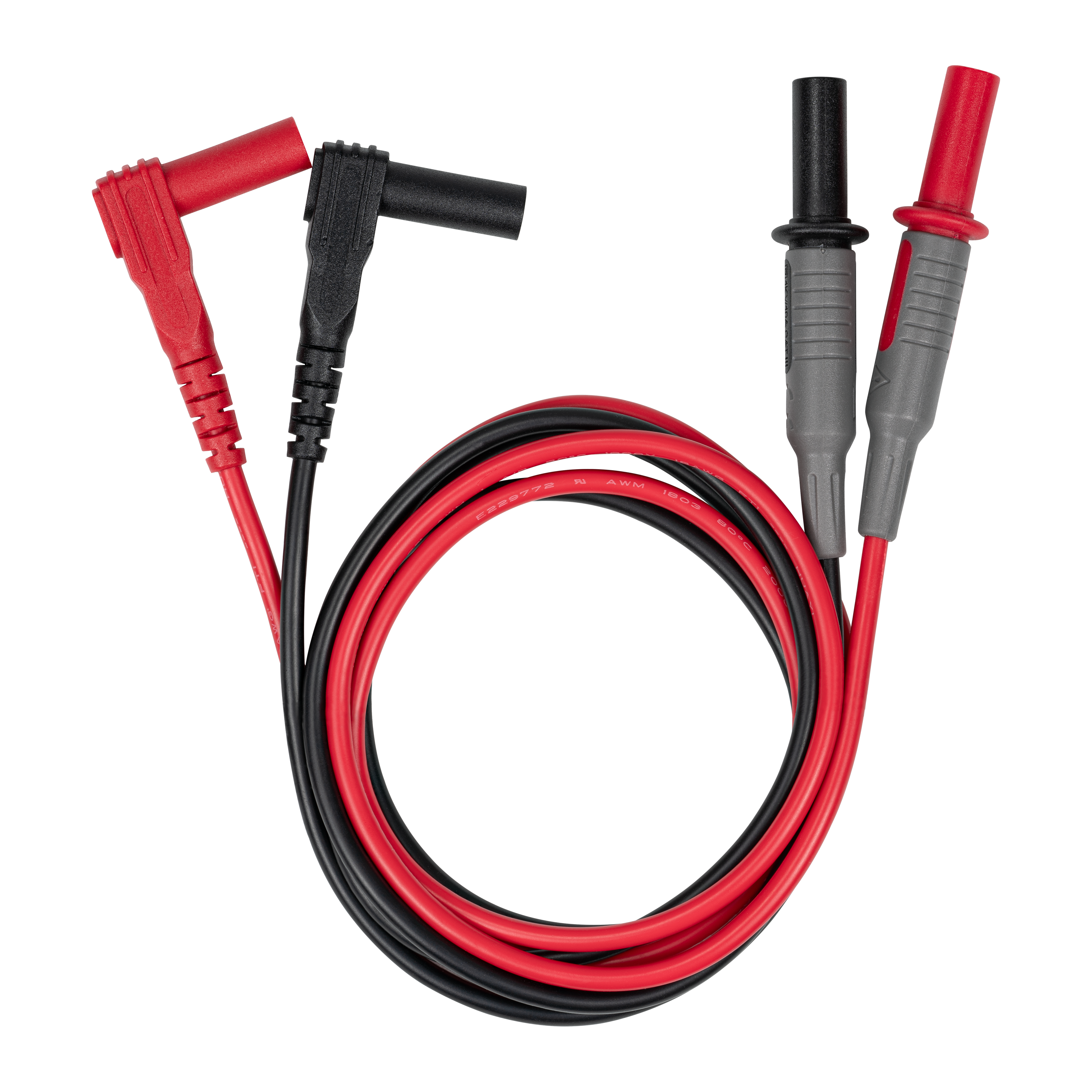

The UEi ATLTX is a modular test lead set with a straight to right-angle connection, standard insulation, and an overall length of 40 in. This modular test lead set is compatible with a variety of modular test lead tips, sold separately, to suit your specific testing needs.

These leads are safety rated at CAT III 1000V 10A.

The ATLTX uses 4mm input jacks with extra-long shrouds. The lead ends are straight and right-angle shrouded male banana clips with a shroud length of 21mm. They work with the following UEi products:

Current Products
DL369, DL379B, DL389B, DL569, DL579, DM505, DM515, DM525, IRT803, IRT807

Retired Products
DL279, DL289, DL379, DL389, DL419, DL429B, DL469, DL479, DL489, DL269, DM300, DM300A, DM310, DM383, DM383B, DM384, DM391, DM393, DM400, DM410, DM420, DM520, DM600, DMEG1, DMEG2, IRT3, UTL261, UTL291, UTL33T, UTLDM1, UTLDM2

The ATLTX is also available as:

ATLBPK: Modular Test Lead Set and Back Probe Lead Set

ATL301KIT: Modular Test Lead Set, Fine Point Probe Set, Large Jaw Alligator Test Clip Set, Grabber Test Clip Set, and Carrying Pouch

ATLTX is backed by a 1-Year limited warranty.



Warranty 1-Year limited

CAT Rating CAT III 1000V 10A
