Residentia/Commercial Combustion Analyzer w/ Pressure/NOx

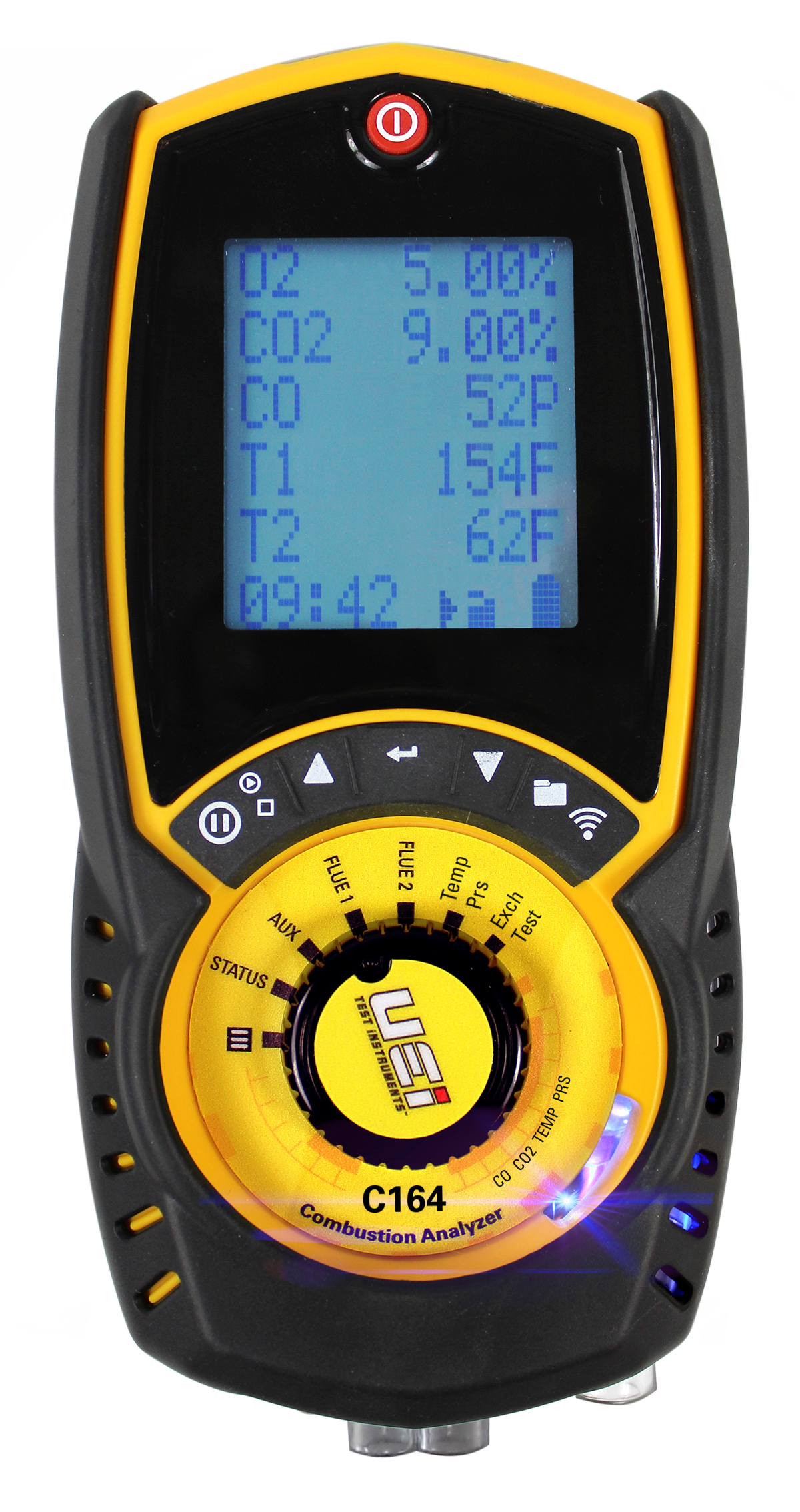

C164
Residential Combustion Analyzer w/ NO Measurement
The C164, with EOS Technology, eliminates the number one hassle experienced by HVAC technicians, the cost and down time of replacing the O2 sensor. The EOS award-winning technology for combustion analysis replaces the everyday electro-optical sensor with EOS CO2 technology, lowering the cost of ownership. The C164 offers direct CO2 measurement and features a 30 second start up time.

Warranty 1-Year limited
Wireless Output Yes
Free App Available Yes
IR Printer Link Yes
Display Backlight Yes
Temperature Differential Yes
Differential Pressure Yes
NOx Filtered CO Sensor Yes
Worklight Yes
Temperature Inputs K-Type
Protective Boot/Overmolding Yes
Sensor Technology EOS
Dual Pressure Input Yes
Preprogrammed Fuels 8
Start Time 60 second
High Altitude Compensation Yes
Memory positions 30
Selectable Units Yes
Magnetic Mount Yes
Recording/Data Logging Yes
Temperature Probe K-Type
K-Type Input Yes
Real-Time Clock Yes
Digital Yes
Automatic Fresh Air Purge Yes
Number of Display Parameters 6 line

K-Type Temperature Range -40˚ to 950˚F (-40˚ to 510˚C)
CO 2000 ppm
CO2 20%
O2 21%
NOx 600 ppm
Draft Yes
Flue Temperature 32˚ to1112˚F (0˚ to 600˚C)
Inlet Temperature 32˚ to1112˚F (0˚ to 600˚C)
Heat Exchanger Test (HET) Yes
Pressure Range ±32 inWC
Pressure Yes
Differential Temperature Yes

CE Conformity Yes
RoHS Yes
REACH Compliant Yes
AHRI 1260 Standard Yes

Quick Start Guide Yes
Batteries Rechargeable 3 (AA)
Pouch/Case AC509
Flue Probe CP2
USB Cable Yes
Inlet Tube/Probe Connector 11000
Particle Filter 17631
Charger WIR00067
K-Type Thermocouples ATT29 (2)
Optional - Replacement Accessories
CP2
CP2
Flue Probe

SPT1
SPT1
Smoke Pump Test Kit

ATT100
ATT100
Temperature Probe, K-Type Liquid 6 In

ATT29
ATT29
Temperature Probe, K-Type Standard (Fiberglass coated)

IRP-2
IRP-2
Easy Load Fast Printer - Infrared Wireless Printer

TDP
TDP
True Draft Probe

ATTEXT
ATTEXT
K-Type Thermocouple 10 ft. Extension Wire

ATT29A
ATT29A
Temperature Probe, K-Type Standard (Fluoroplastic Coated)

SM11105
SM11105
Inlet tube

ATTPC4
ATTPC4
Compact Pipe Clamp Probe, K-Type

ATT36
ATT36
K-Type 8 In Surface probe with Handle

ATT29APACK
ATT29APACK
Temperature Probe, K-Type Standard (Fluoroplastic coated) (10 pack)

SPAK1
SPAK1
Static Pressure Accessory Kit

ATTPC3
ATTPC3
Pipe Clamp Probe, K-Type

ATT39
ATT39
Temperature Probe, K-Type DT300 Series Probe
