600A TRMS Clamp Meter w/ DC Amps, Differential Temperature, AMH3 Magnet w/ 2 ATTPC4
DL589COMBO

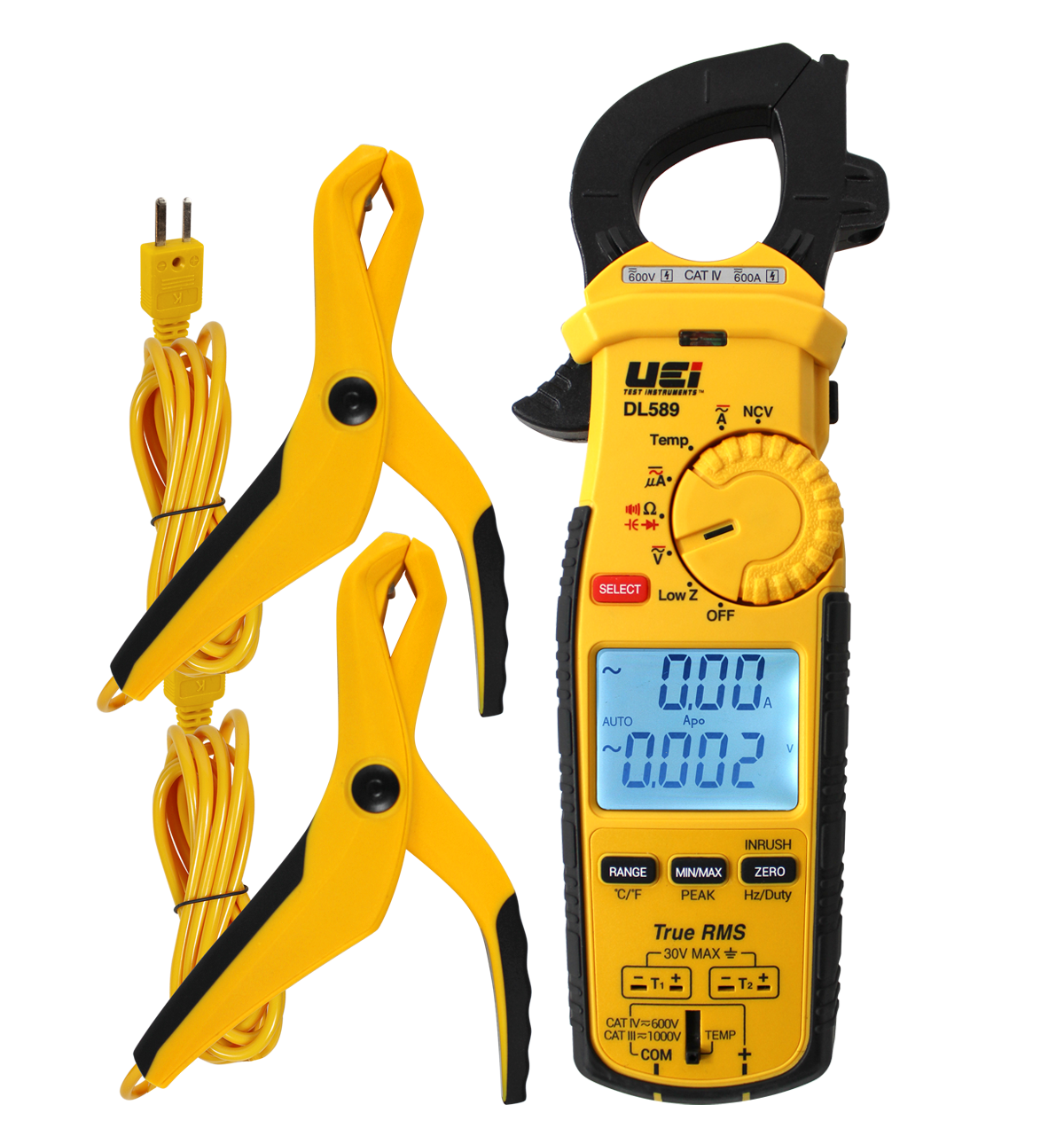

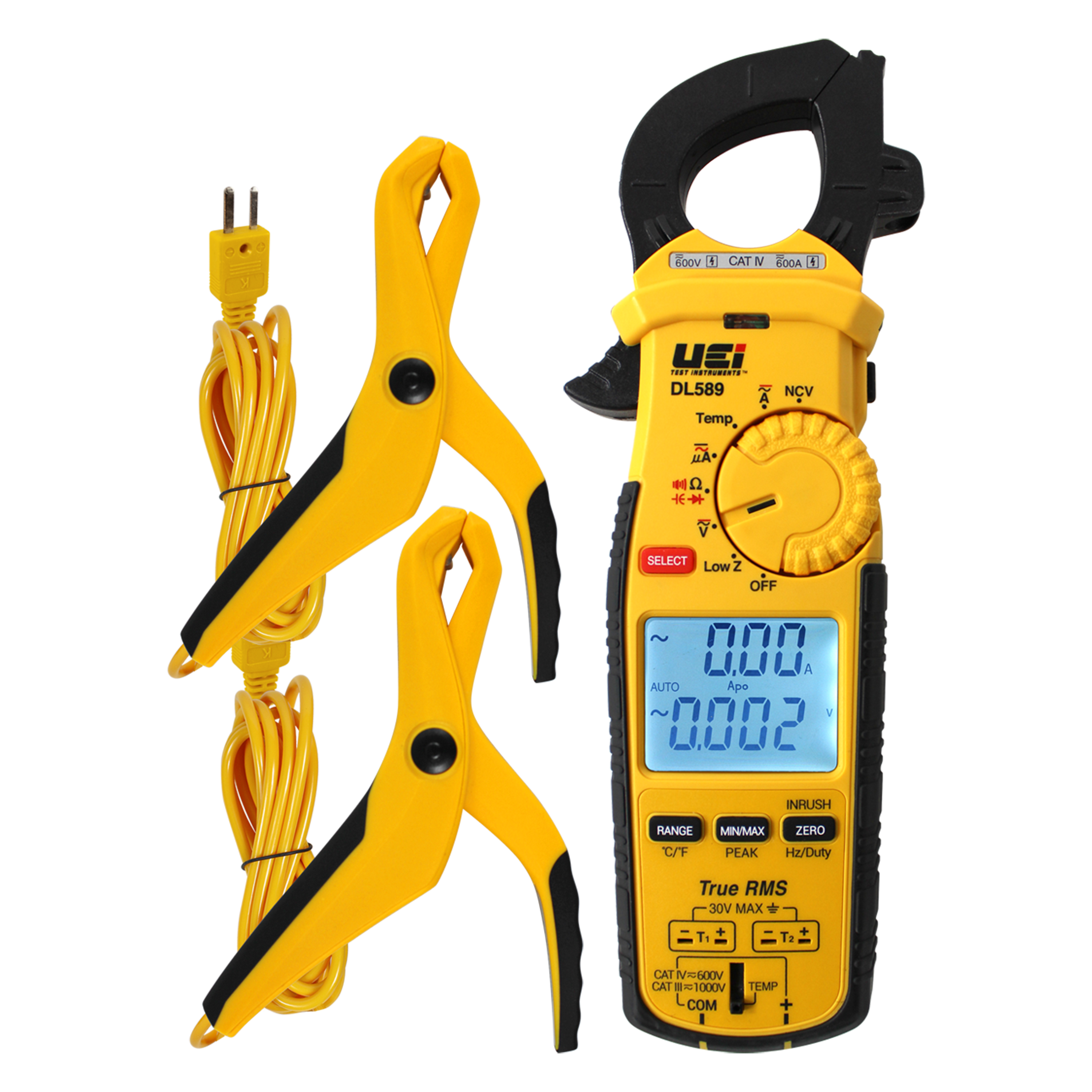

The UEi DL589COMBO includes 2 compact K-Type pipe clamps and a 600A True-RMS HVAC/R clamp meter with a rubberized grip, backlit dual display, and magnetic hanging strap. Each meter includes a set of silicone test leads, 2 K-Type thermocouples, threaded alligator clips for hands-free testing, and a zippered carrying pouch.

The DL589 is safety rated at CAT IV 600V / CAT III 1000V. It features DC Amps, differential temperature readings, Inrush, and DC millivolts as well as functions like AC/DC voltage, NCV, AC amps, AC/DC microamps, resistance, capacitance, frequency and duty cycle.

The UEi ATTPC4 is a wired K-Type pipe clamp with a thermally isolated probe to protect readings from ambient temperatures. Its tough and compact design allows you to make secure connections in workspaces with tight clearances.

DL589COMBO is backed by a 2-Year limited warranty.

Dual Display Yes
Backlight Yes
Temperature Differential Yes
Hold Yes
Min/Max Yes
Ranging Auto/Manual
Auto Power Off Yes
Display Count 6000
Low Battery Warning Yes
Worklight Yes
Temperature Inputs K-Type
DC Zero Yes
Protective Boot/Overmolding Yes
Magnetic Mount Yes
Warranty 2-Year limited
Audible and Visual Alerts Yes
K-Type Input Yes
Digital Yes

TRMS Yes
Frequency (Hertz) - Jaw input 600ADC
DC Current (Amps) - Jaw input 600AAC
LRA Inrush Yes
DC Volts 1000VDC
AC Volts 750VAC
Frequency (Hertz) - Test lead input 99.99kHz
Duty Cycle (%) 1.0 to 99.0%
Resistance (Ohms) 60MΩ
Diode Yes
Capacitance (Farads) 2000µF
Continuity Yes
DC Micro Current (Amps) - Test lead input 2000µADC
AC Micro Current (Amps) - Test lead input 2000µAAC
Temperature -328°F to 2462 °F (-200°C to 1350°C)
Low Z Yes
NCV Detection Yes

ETL Listed cETLus 610101-1: 2012
CAT Rating CATIV 600V
RoHS Yes
FCC/IC Compliant FCC

Manual (Eng) Yes
Test Leads Silicone ATL58
Back Probes ABP3
Alligator Clips AAC3
Batteries AAA (4)
Temperature Probe ATT29 (2)
Pouch/Case Zippered
Pipe Clamp Probe ATTPC4 (2)
K-Type Thermocouples Yes
Optional - Replacement Accessories
AC519
ATTPC4
ABP3
AJW1
AC560
ATT29
AAC3
ATHA1
ATL58
AMH3
ATLCAP
