Everyday Professional Clamp Meter with ATTPC4 Pipe Clamp
EPCCOMBO

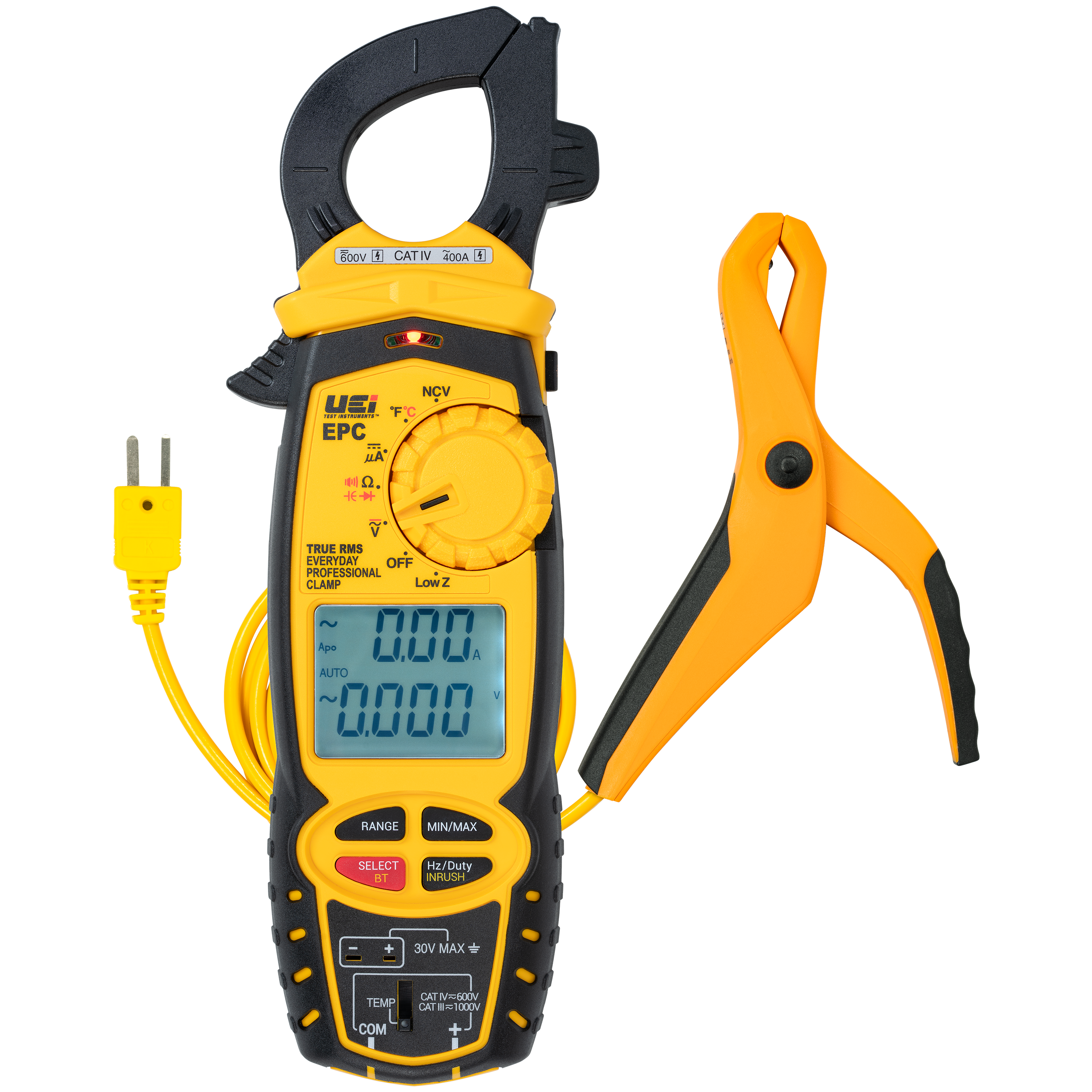

The UEi EPCCOMBO includes a compact K-Type pipe clamp and True-RMS wireless clamp meter designed to tackle the essential tests that HVAC/R professionals perform everyday. Each meter includes a set of silicone test leads, threaded alligator clips, threaded back probes, a K-Type thermocouple, and a redesigned padded case that allows you to leave your test leads plugged in when storing the meter.

The EPC is safety rated at CATIV 600V 400A/ CATIII 1000V 400A. It's capable of reading AC/DC Volts, LRA Inrush, temperature, capacitance, duty cycle, AC amps, DC microamps, frequency via leads, non-contact voltage, resistance, continuity, and diode testing.

The UEi ATTPC4 is a wired K-Type pipe clamp with a thermally isolated probe to protect readings from ambient temperatures. Its tough and compact design allows you to make secure connections in workspaces with tight clearances.

EPCCOMBO is backed by a 2-Year limited warranty.

Dual Display Yes
Backlight Yes
Hold Yes
Min/Max Yes
Ranging Auto/Manual
Auto Power Off Yes
Display Count 4,000
Low Battery Warning Yes
Wireless Output Yes
Free App Available Yes (iOS® and Android™ compatible)
Protective Boot/Overmolding Yes
Magnetic Mount Yes
Warranty 2-Year limited
Audible and Visual Alerts Yes
K-Type Input Yes
Probe/Lead Storage Yes
Digital Yes

TRMS Yes
AC Current (Amps) - Jaw input 400AAC
LRA Inrush Yes
DC Volts 1000VDC
AC Volts 750VAC
Frequency (Hertz) - Test lead input 99.99kHz
Duty Cycle (%) 1.0 to 99.0%
Resistance (Ohms) 40MΩ
Diode Yes
Capacitance (Farads) 4000µF
Continuity Yes
DC Micro Current (Amps) - Test lead input 2000µADC
Temperature -328°F to 2462 °F (-200°C to 1350°C)
Low Z Yes
NCV Detection Yes

Ingress Protection IP42
ETL Listed cETLus UL 61010-1: 2012
CAT Rating CATIV 600V/CATIII 1000V 400A
RoHS Yes
FCC/IC Compliant FCC
REACH Compliant Yes

Quick Start Guide Yes
Test Leads Silicone ATL70
Back Probes ABP3
Alligator Clips AAC3
Batteries AAA (4)
Temperature Probe ATT29
Pouch/Case AC570
Pipe Clamp Probe ATTPC4

Video 1
Optional - Replacement Accessories
ATTPC4
AMH3
AAC3
AJW1
ATTPC3
ABP3
ATLCAP
ATHA1
ATT29
