UEi C161 Residential Combustion Analyzer
Home> Products> Combustion Analyzers> Residential/Commercial> Residential Combustion Analyzer

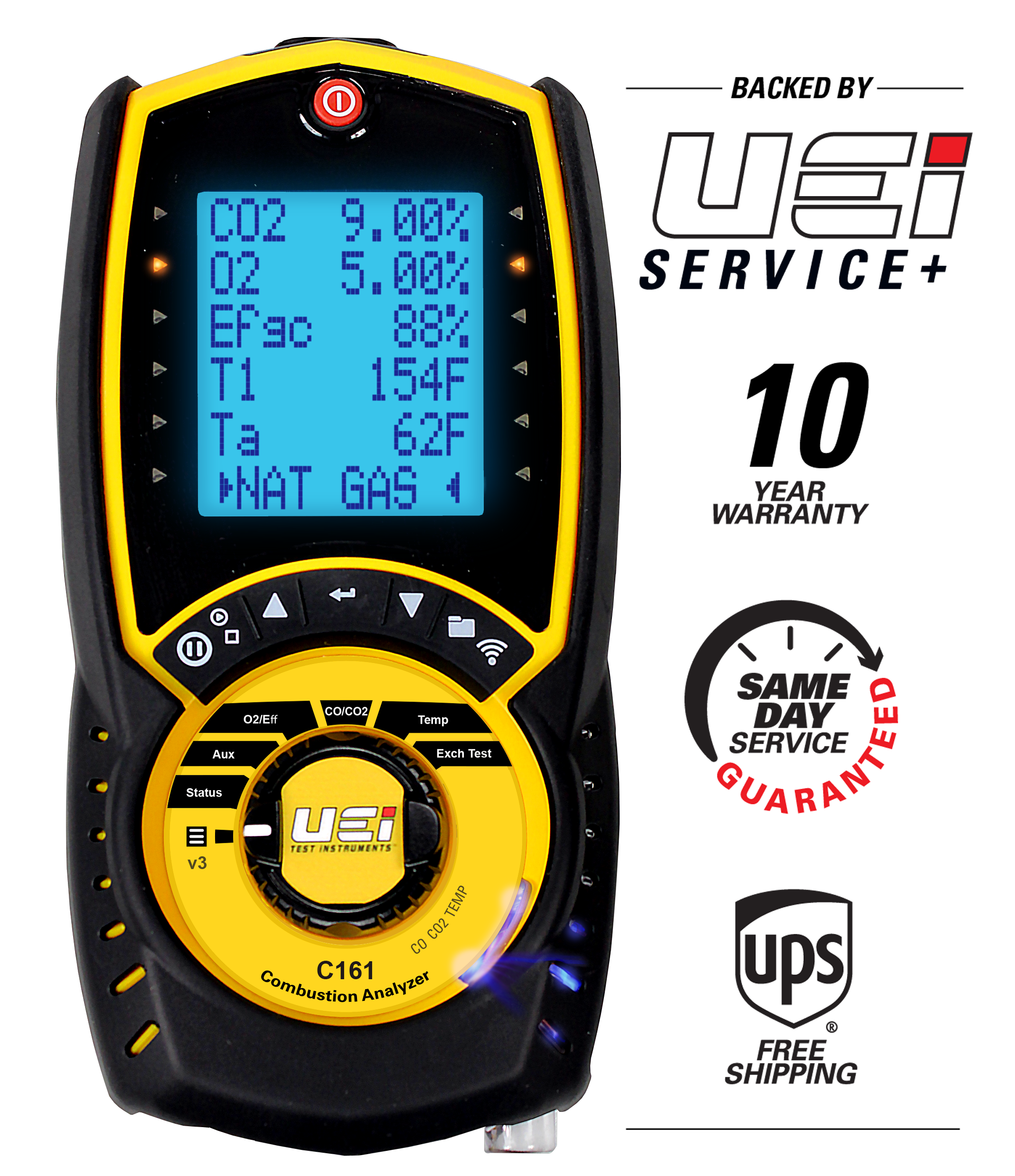

Residential Combustion Analyzer
C161

Backed by UEi Service+ to give up to 10 years of warranty, SAME DAY GUARANTEED recertification, and a reduced cost of ownership.

See the complete UEi Service+ details here

The C161 Residential Combustion Analyzer is easy to use and features a newly added heat exchanger test, differential temperature, rugged design, multiple sensor protections, and altitude compensation. This analyzer calculates essential information for installing and maintaining gas appliances. Prints to optional printer.

The C161 is also available as:

C161C: Analyzer and Carrying Case

C161KIT: Analyzer, 2 Thermocouples, Printer, and Carrying Case

C161OIL: Analyzer, Smoke Pump Tester, and Carrying Case

C161OILKIT: Analyzer, Smoke Pump Tester, 2 Thermocouples, Printer, and Carrying Case



Backlight Yes
Up to 10-Year Warranty with Annual Recertification Yes
Eligible for UEi Service+ Yes
Temperature Differential Yes
2 Types of Sensor Protection Yes
NOx Filtered CO Sensor Yes
Low Flow Detection Yes
Over Range Protection Pump Yes
Temperature Inputs K-Type
Protective Boot/Overmolding Yes
Preprogrammed Fuels 8
Start Time 30 seconds
High Altitude Compensation Yes
Memory positions 30
Magnetic Mount Yes
Warranty Up to 10 years with annual recertification
Recording/Data Logging Yes
K-Type Input Yes
Digital Yes
Automatic Fresh Air Purge Yes
Number of Display Parameters 6 line
IR Printer Link Yes
Protective Water Trap Yes

CO 2000ppm
CO2 20%
O2 21%
Flue Temperature 32˚ to 1112˚F
Inlet Temperature 32˚ to 1112˚F
Heat Exchanger Test (HET) Yes
Differential Temperature Yes
K-Type Temperature Range -40˚ to 950˚F (-40˚ to 950˚F

CE Conformity Yes
RoHS Yes
REACH Compliant Yes
AHRI 1260 Standard Yes
Certification The C161 is independently tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV)
EMC EN50270:2015
Safety EN61010-1:2010
UK CA Yes

Quick Start Guide Yes
Batteries Rechargeable AA (3)
Flue Probe CP2
USB Cable AACA5 (Micro USB)
Certificate of Calibration Yes

Video 1
Video 2
Video 3
Video 4
Video 5
Video 6
Video 7
Video 8
Video 9
Video 10
Optional - Replacement Accessories
AC509
AC509

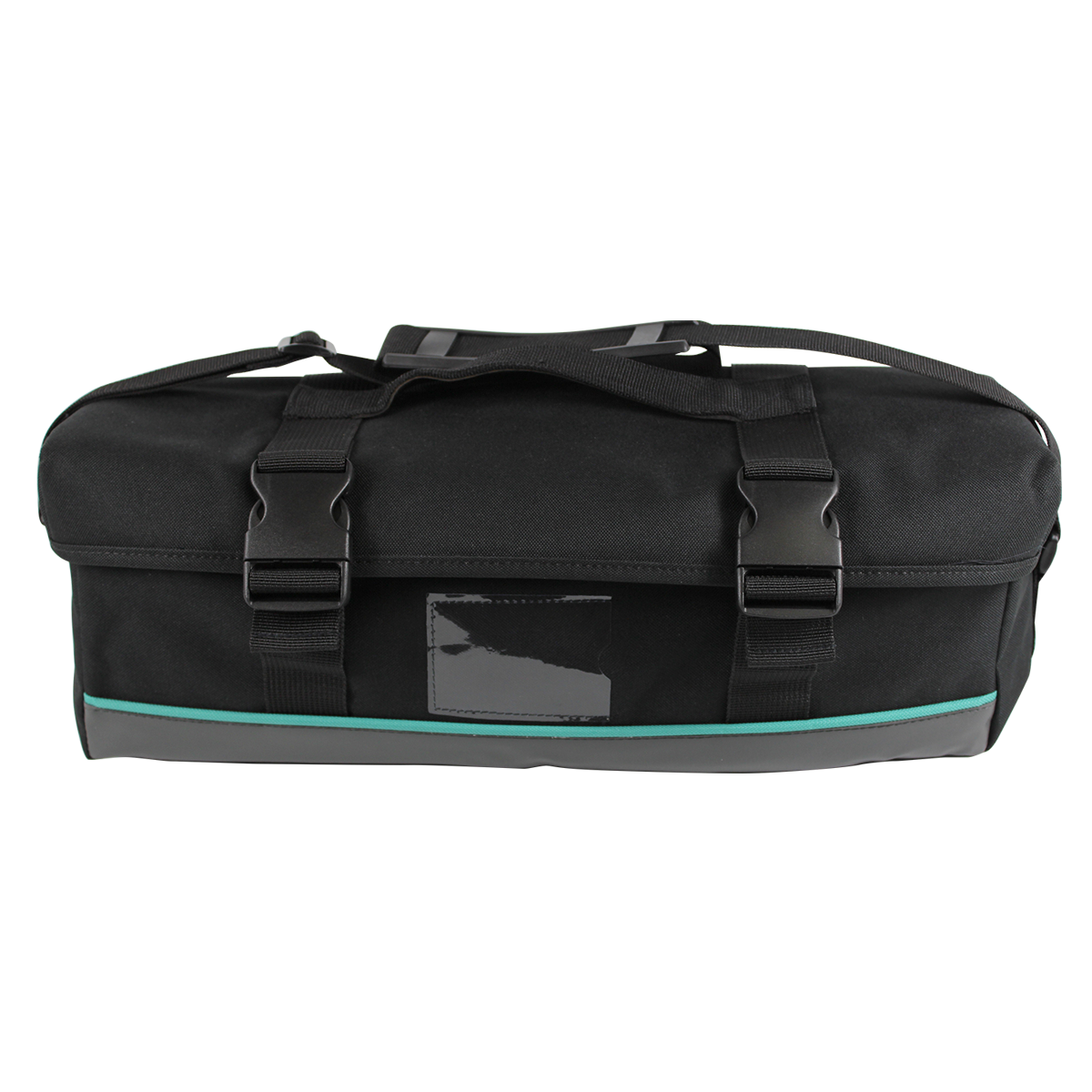

C Series Carrying Case (14 x 19 x 4.75)

IRP-2
IRP-2
Easy Load Fast Printer - Infrared Wireless Printer

CP2
CP2
Flue Probe

ATTPC4
ATTPC4
Compact Pipe Clamp Probe, K-Type

ATT29
ATT29
Temperature Probe, K-Type Standard (Fiberglass coated)

SM50515
SM50515
Water Trap

SM11105
SM11105
Inlet tube

16646
16646
Thermal Paper for IRP-2 (2.25 inch/ 57mm)

17631
17631
Particle Filter (C Series Analyzers)

17631PACK
17631PACK
Particle Filter (C Series Analyzers)

AACA5
AACA5
USB CHARGER FOR C160 SERIES ANALYZERS
