C165+NOIL - RES/COMM COMBUSTION ANALYZER W/ NO1 FOR OIL-FIRED | Kane USA
Home> Products> Combustion Analyzers> Analyzer Kits> Residential/Commercial Combustion Analyzer w/ NO1 Sensor for Oil-Fired Appliances

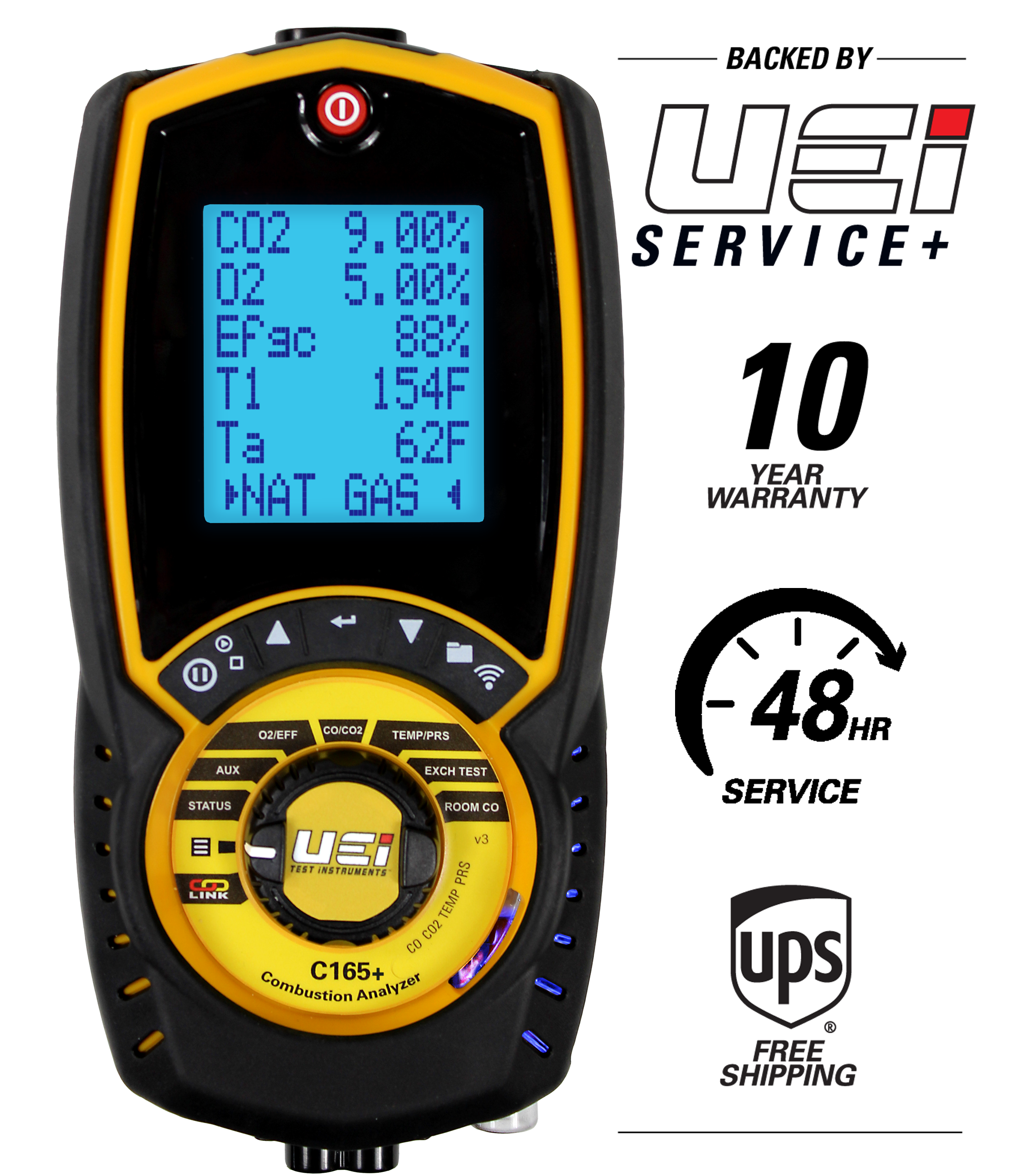

Residential/Commercial Combustion Analyzer w/ NO1 Sensor for Oil-Fired Appliances
C165+NOIL

Backed by UEi Service+ to give up to 10 years of warranty, next day recertification, and a reduced cost of ownership.

See the complete UEi Service+ details here

The C165+N Residential/Commercial Combustion Analyzer is easy to use and provides essential information for installing and maintaining gas appliances.  It is fitted with a NO (Nitric Oxide) sensor and features an H2 compensated 10,000 ppm CO sensor with purge pump protection, and LINK wireless probe connection for use with included wireless pipe clamp probes. The C165+N allows techs to print to an optional printer through the IR port for hard copies or wireless to a compatible device using with the Kane Wireless Printer App to record and email results.

Includes: Analyzer w/ Nitric Oxide Sensor, Smoke Pump Tester, 2 Thermocouples, 2 WPC2 Wireless Pipe Clamp Probes, and Carrying Case

The WPC2 is a wireless pipe clamp probe designed for pipes with a diameter between 3/16 in. and 1 7/16 in.

The C165+NOIL is also available as:

C165+N: Analyzer w/ Nitric Oxide Sensor, 2 Thermocouples, 2 Wireless Pipe Clamp Probes, and Carrying Case

C165+NKIT: Analyzer w/ Nitric Oxide Sensor, Printer, 2 Thermocouples, 2 Wireless Pipe Clamp Probes, and Carrying Case

C165+NOILKIT: Analyzer w/ Nitric Oxide Sensor, Smoke Pump Tester, 2 Thermocouples, Printer, 2 Wireless Pipe Clamp Probes, and Carrying Case

Backlight Yes
Up to 10-Year Warranty with Annual Recertification Yes
Eligible for UEi Service+ Yes
Differential Pressure Yes
3 Types of Sensor Protection Yes
NOx Filtered CO Sensor Yes
Low Flow Detection Yes
Over Range Protection Pump Yes
Link to Wireless Probes Yes
Temperature Inputs K-Type
Wireless Output Yes
Protective Boot/Overmolding Yes
Dual Pressure Input Yes
Preprogrammed Fuels 8
Start Time 30 second
High Altitude Compensation Yes
Memory positions 45
Magnetic Mount Yes
Warranty 10-Year limited
K-Type Input Yes
Digital Yes
Automatic Fresh Air Purge Yes
Protective Water Trap Yes

CO 10,000ppm (H2 compensated)
CO2 20%
O2 21%
Flue Temperature 32˚ to 1112˚F
Inlet Temperature 32˚ to 1112˚F
Heat Exchanger Test (HET) Yes
Differential Temperature Yes
K-Type Temperature Range -40˚ to 950˚F (-40˚ to 510˚C)
Pressure Yes

IEC 61010 IEC62321-2:2013, IEC62321-1:2013, IEC62321-3-1:2013, IEC62321-5:2013, IEC62321-4:2013, IEC62321-7-2:2017, IEC62321-7-1:2015, IEC62321-6:2015
CE Conformity Yes
RoHS Yes
REACH Compliant Yes
AHRI 1260 Standard Yes
Certification The C165+ is independently tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV)
EMC EN50270:2015
Safety EN61010-1:2010

Quick Start Guide Yes
Batteries Rechargeable AA (3)
Pouch/Case AC509
Flue Probe CP2
Smoke Pump Test Kit SPT1
USB Cable AACA5
Particle Filter 17631
K-Type Thermocouples ATT29 (2)
11000 Tubing Yes
Wireless Pipe Clamp Probes WPC2 (2)
Optional - Replacement Accessories
AC509
IRP-2
SPT1
SPT1
Works with combustion analyzers

CP2
TDP
SPAK1
ATT29
SM50515
SM50515

SM11105
SM11105

SP9
16646
16646PACK
17631
17631PACK
AACA5
