DL369 - DUAL DISPLAY CLAMP METER

Home> Products> Clamp Meters> Meters> Dual Display Clamp Meter

Dual Display Clamp Meter

DL369

The PHOENIX Clamp meter series starts with the DL369, the perfect meter for contractors who need basic features without all the extras. Great for general troubleshooting and electrical maintenance, this isn't just a stripped down model, the PRIME is a fully functional tough meter made to get the job done.

Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads

Dual Display	Yes
Hold	Yes
Min/Max	Yes
Ranging	Auto/Man
Auto Power Off	Yes
Display Count	4000
Low Battery Warning	Yes
Warranty	3-Year limited

AC Current (Amps)	400A
AC Micro Current (Amps)	2000µA
DC Micro Current (Amps)	2000µA
AC Volts	750V
DC Volts	1000V
Resistance (Ohms)	40 MΩ
Diode	Yes
Capacitance (Farads)	4000µF
Frequency (Hertz)	99.99Hz - 99.99kHz
Duty Cycle (%)	Yes
Continuity	Yes
NCV Detection	Yes

Optional - Replacement Accessories

AC560 Clamp Meter Soft Carrying Case	ATL2 Modular Test Lead Tips - Alligator Clip Set	ATL55 Standard Right Angle Test Lead Set	ATLCAP Test Lead Protective Cap Shield Set
AAC Slip-On Alligator Clip Set	ATL3 Modular Test Lead Tips - Remote Grabber Clip Set	ATL57 Silicone Right Angle Test Lead Set	ATLTX Modular Test Lead Set
AAC3 Screw-On Alligator Clip Set	ATL301KIT Deluxe Modular Test Lead Kit	ATL6 Modular Test Lead Tips - Piercing Test Clip Set	ATHA1 Gas Valve Thermocouple Adapter
ATL1 Modular Test Lead Tips - Fine Point Probe Set	ATL5 Modular Test Lead Tips - Back Probe Set	ATLBPK Modular Back Probe Test Lead Kit

UL Listed	cULus
IEC 61010	2nd ediition
CE Conformity	Yes
CAT Rating	CATIII 600V/ CATII 10000V

Manual (Eng)	Yes
Test Leads	ATL55
Batteries	AAA (2)
Pouch/Case	AC560

	Data Sheet - English
	Data Sheet - Spanish
	Data Sheet - French
	Manual - English
	Manual - Spanish
	Manual - French

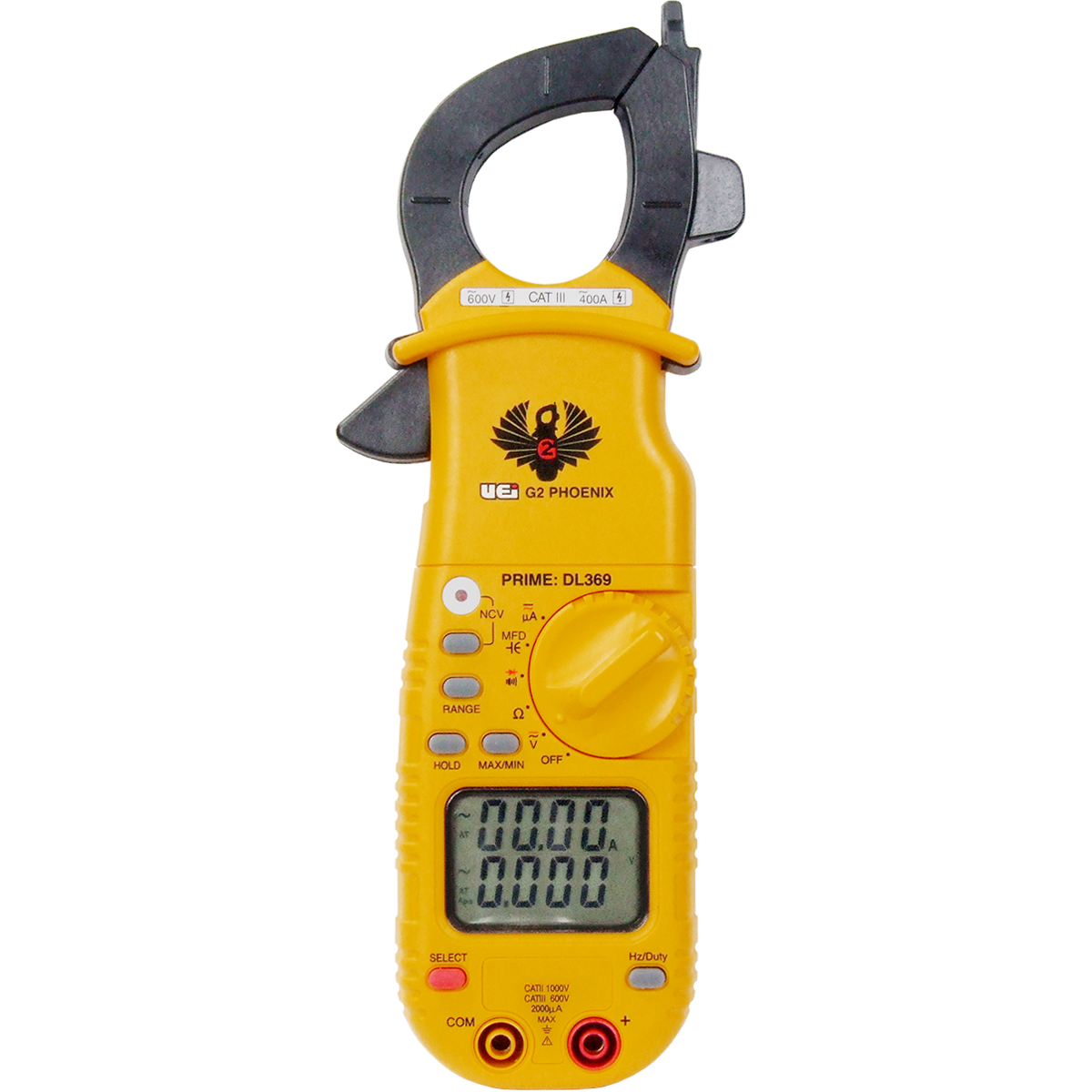

	Hi-Res picture

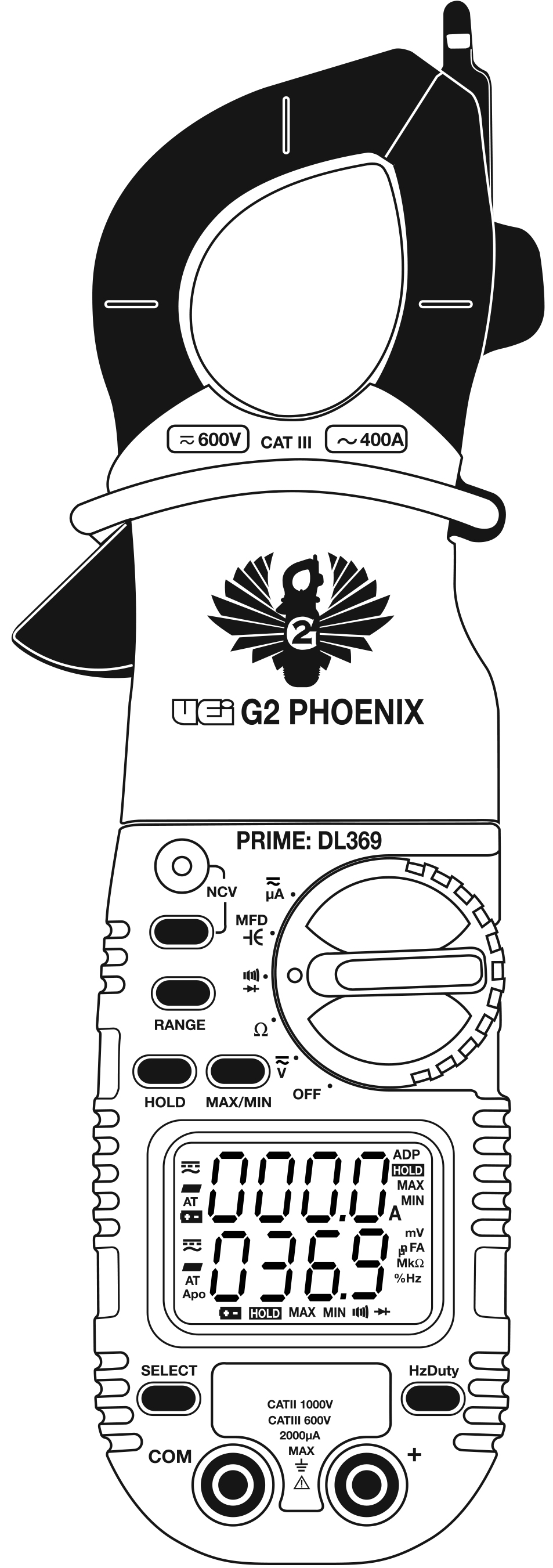

	Line Drawing
