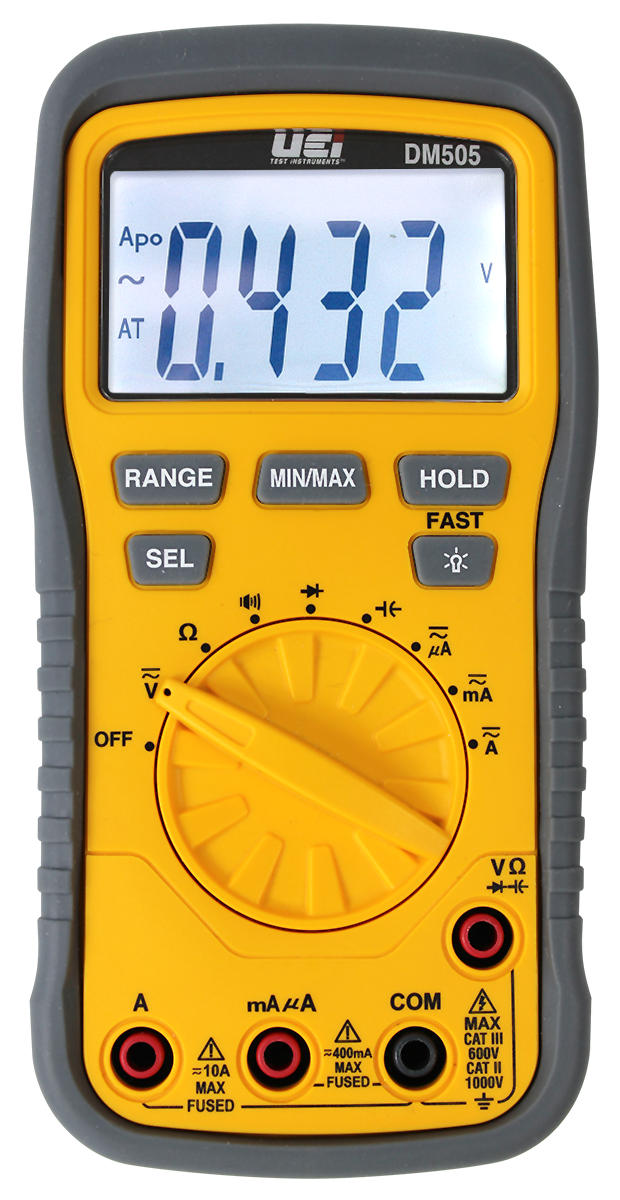

1000V Multimeter Electrical
DM505
1000V Electrical multimeter
Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads
Hold
Yes
Min/Max
Yes
Ranging
Auto/Manual
Auto power off
Yes
Display count
6000
Low battery warning
Yes
Backlight
Yes
Fast response Min/Max
Yes
Protective boot or overmolding
Yes
Kick stand
Yes

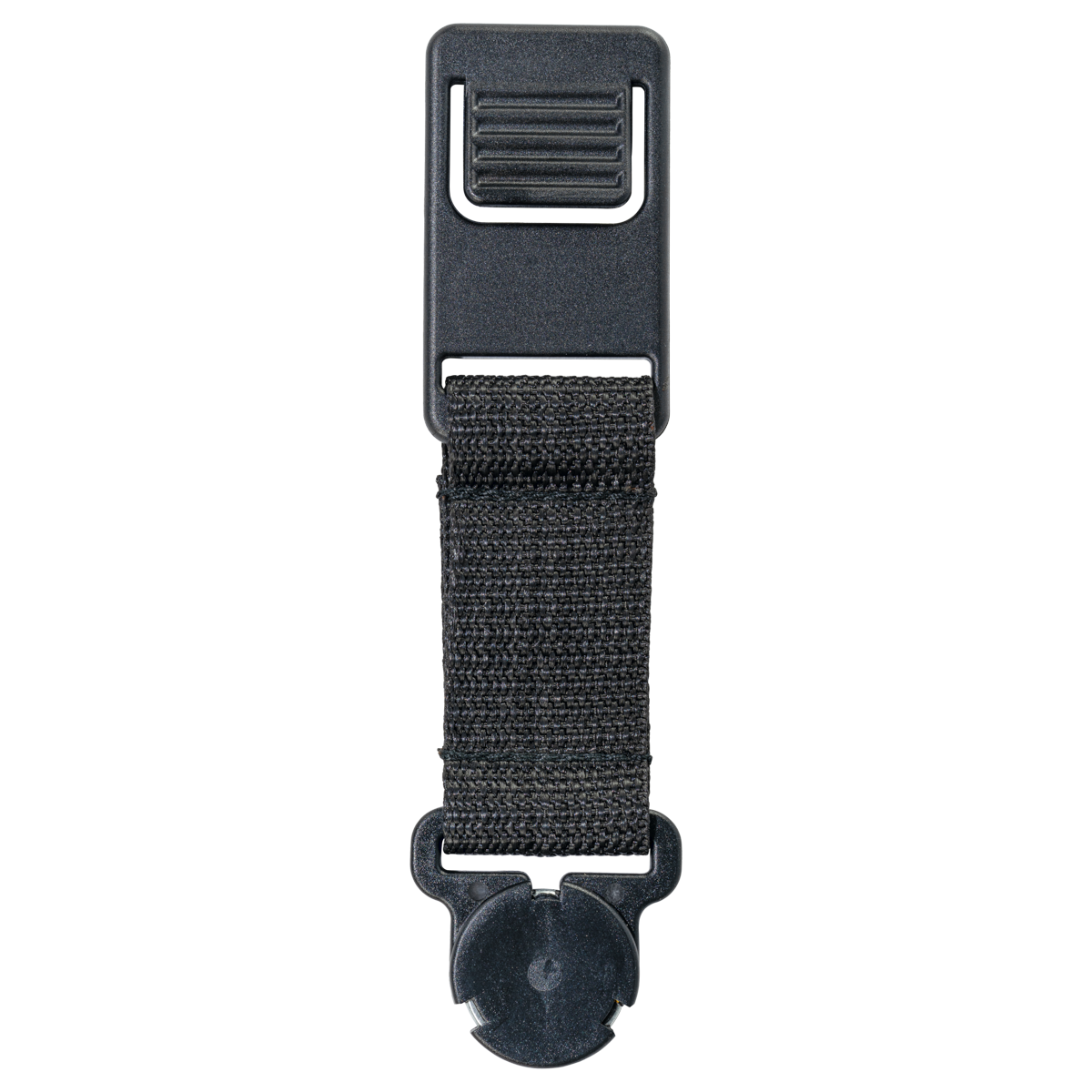

Magnetic mount
Optional
Warranty
2-Year limited
AC Volts
1000V
DC Volts
1000V
AC current (amps)
10A
DC current (amps)
10A
AC micro current (amps)
600µA
DC micro current (amps)
600µA
DC micro volts
6µV
AC micro volts
6µV
Capacitance (Farads)
9999µF
Continuity
Yes
Diode
Yes
Ingress Protection
42
ETL listed
61010-1: 2012 3rd edition
IEC 61010
61010-2-033: 2012 edition
CE Conformity
EN 61010-1: 2010 3rd edition
CAT Rating
CATIII 600V/ CATII 1000V
RoHS
Yes
FCC/IC Compliant
Yes
TOV Protection
Yes
Drop Protection
6 foot
Manual (Eng)
Yes
Manual (Spa)
Yes
Manual (Frn)
Yes

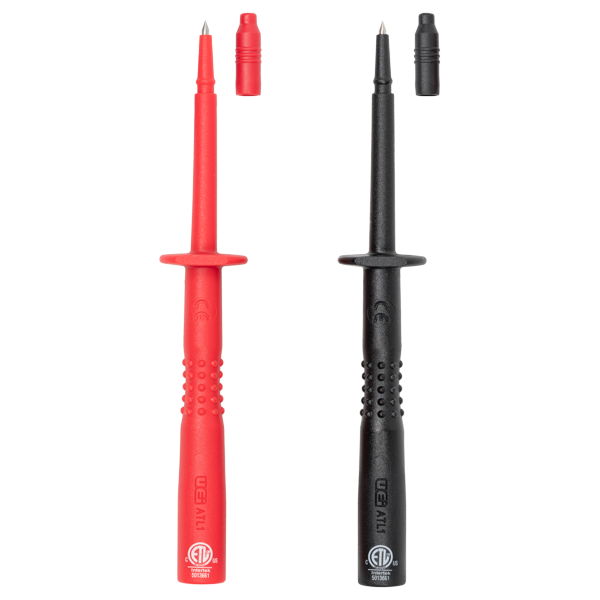

Test Leads
ATL55

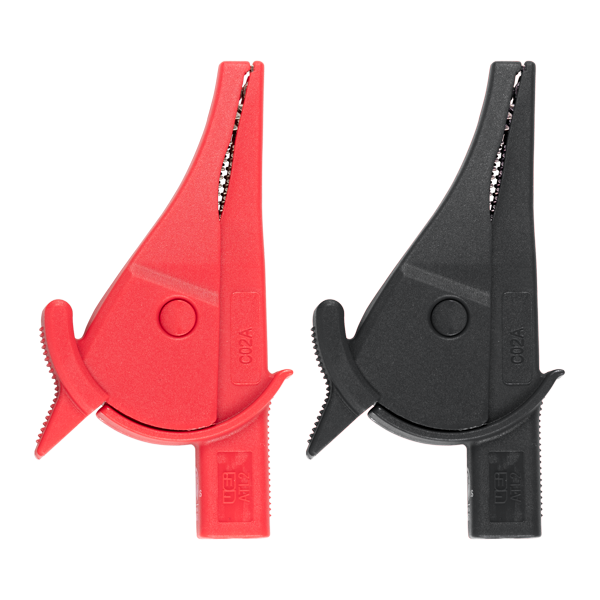

Alligator clips
AAC3
Batteries
(AA) 2
Pouch/Cases
AC519
Data Sheet - English
Data Sheet - Spanish
Data Sheet - French
Manual - English
Manual - Spanish
Manual -French
Hi-Res Picture

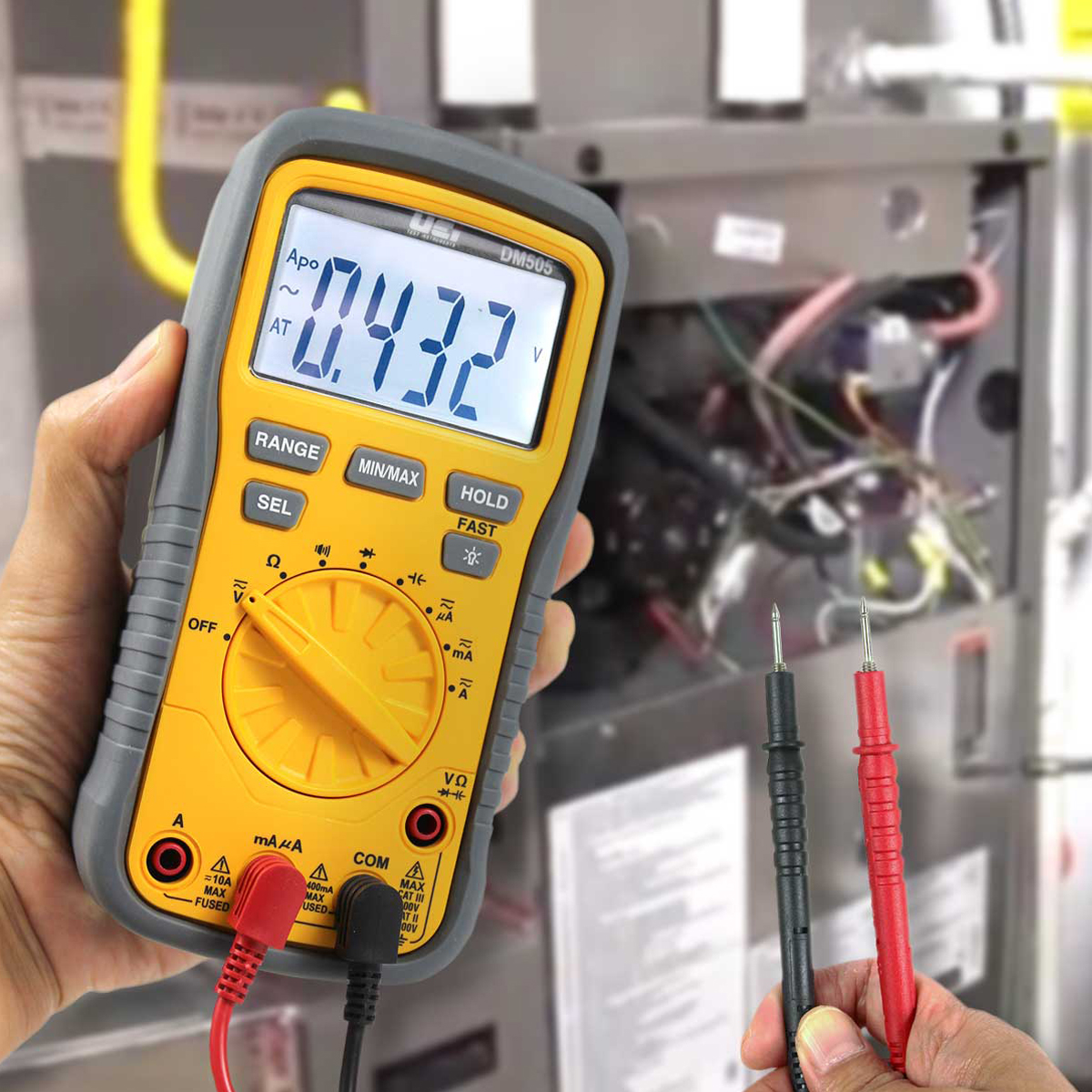

Application Picture

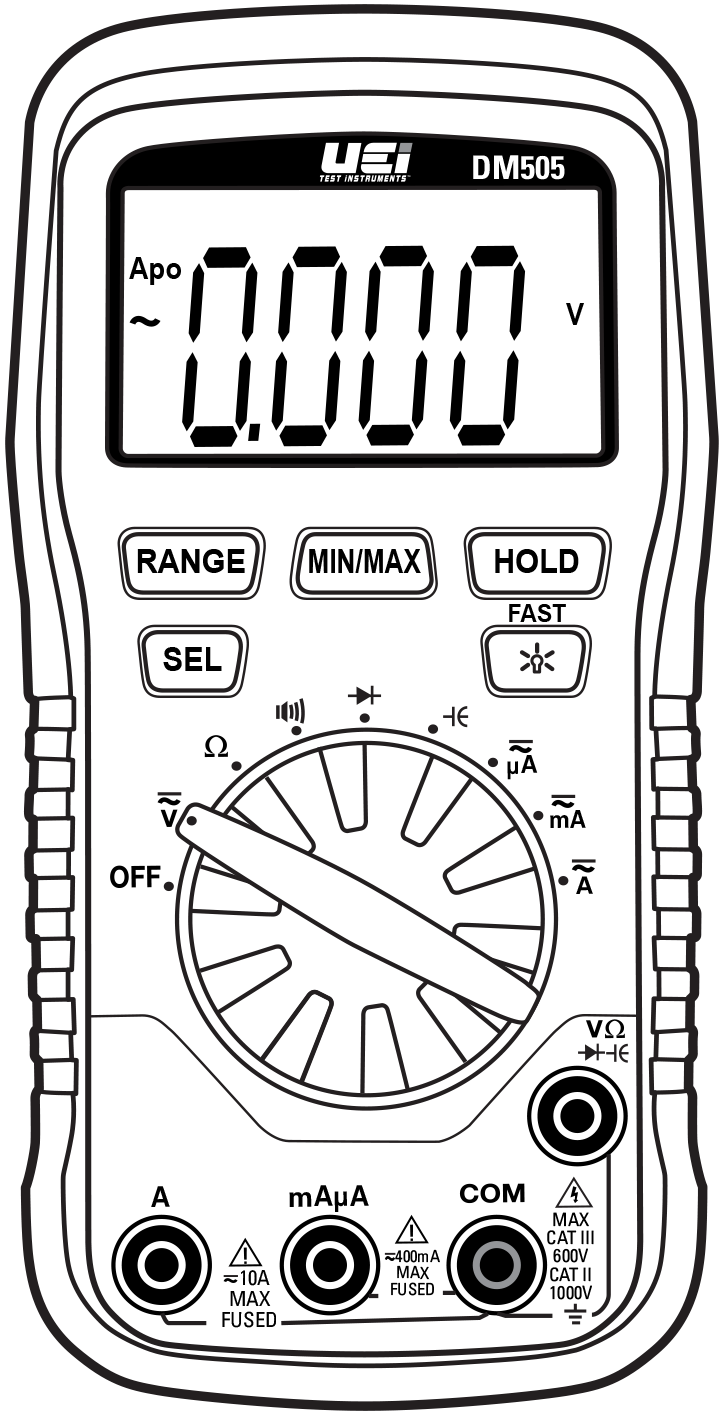

Line Drawing
