IRT807 - INSULATION RESISTANCE TESTER 1000V AC/DC | Kane USA
Home> Products> Insulation Resistance Testers> Advanced Insulation Resistance Tester 1000V AC/DC
Advanced Insulation Resistance Tester 1000V AC/DC
IRT807

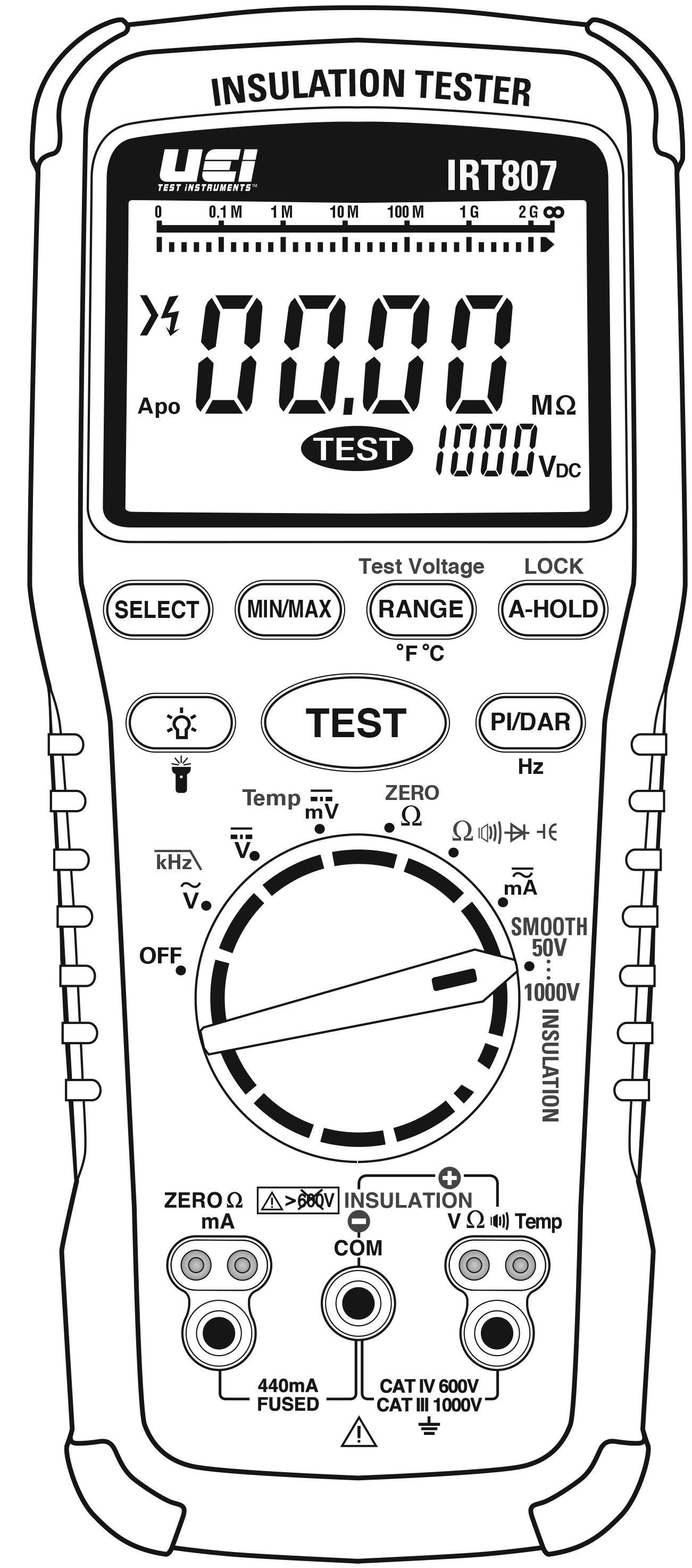

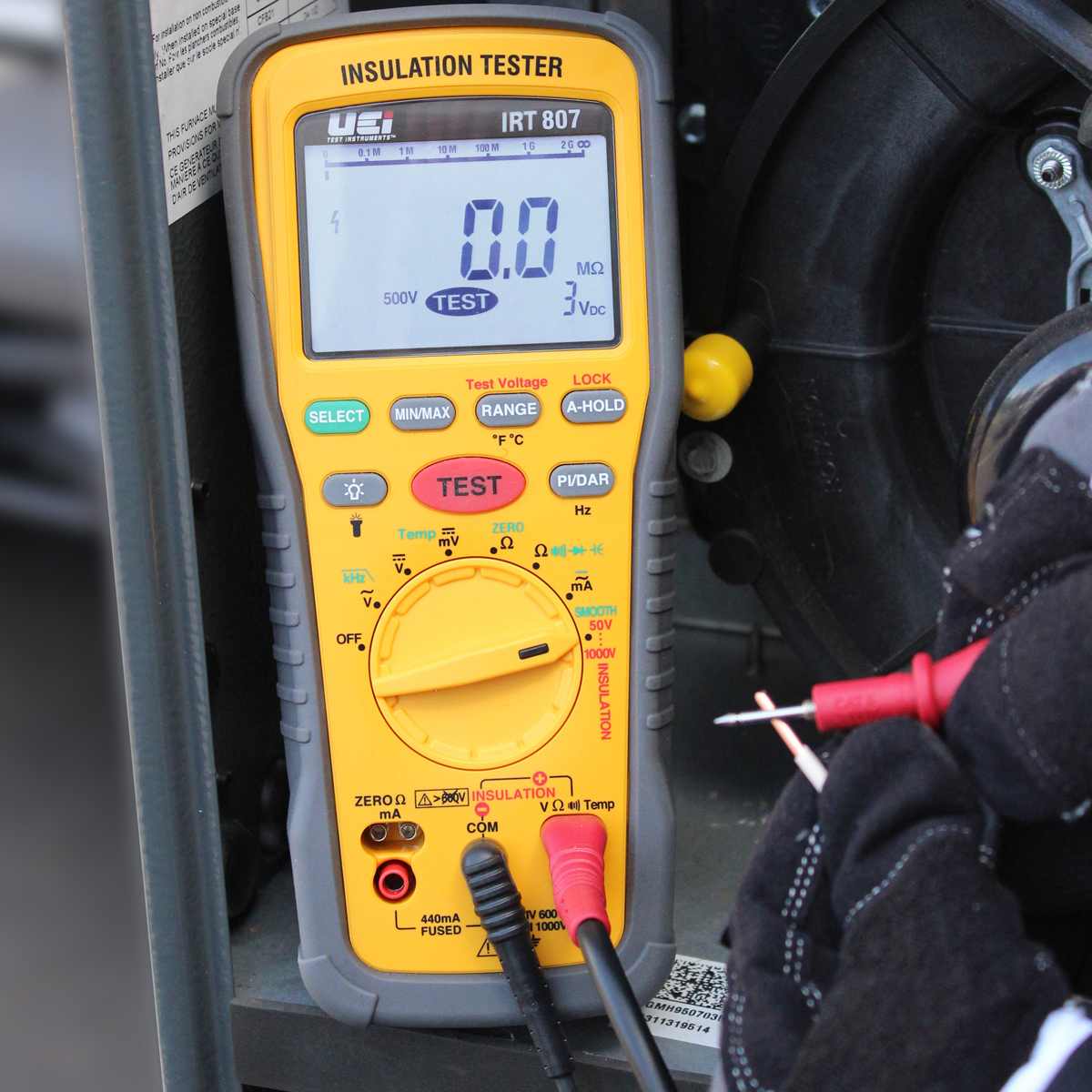

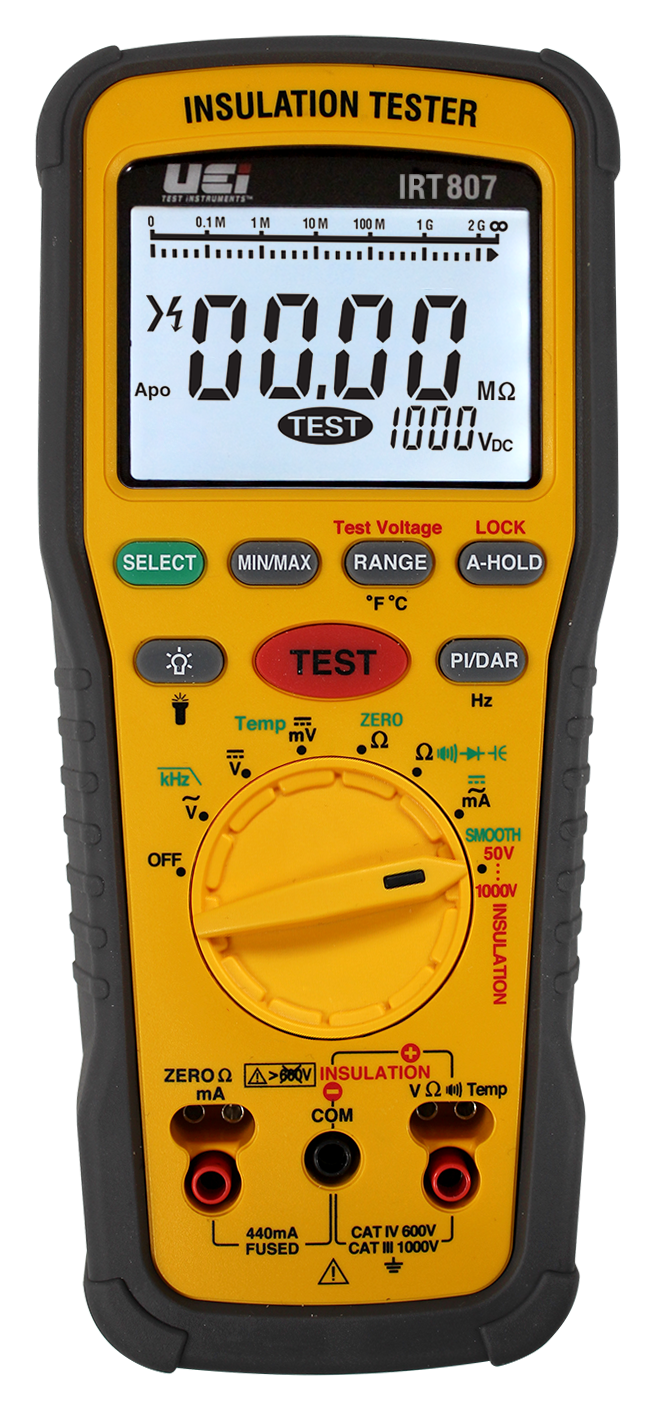

The UEi IRT807 is a digital Insulation resistance tester that has a 1000V AC/DC measurement capability and multimeter functionality. Each meter includes silicone test leads, alligator clips for hands-free testing, and a zippered carrying case.

This meter is safety rated at CAT IV 600V / CAT III 1000V and is drop rated for 6 feet. The IRT807 features a backlit display that shows the test function and measured value. It also features a DMM rotary style selector, protective rubber boot with a kick stand lock, compare, and PI/DAR.

IRT807 is backed by a 1-Year limited warranty.



Backlight Yes
Hold Yes
Auto Power Off Yes
Protective Boot/Overmolding Yes
Kick Stand Yes
Zero Yes
Warranty 1-Year limited
Digital Yes
Compare Reading Yes
PI/DAR Test Yes
Lock Reading Yes

TRMS Yes
AC Volts 1000V
DC Volts 1000V
Resistance (Ohms) 40 MΩ
Diode Yes
Capacitance (Farads) Yes
Temperature Yes
Frequency (Hertz) Yes
Continuity Yes
Insulation Resistance 0.1MΩ–2.0GΩ, 50V–1000V
Earth-bond Resistance Yes

IEC 61010 61010-1: 2010 3rd edition
CAT Rating CATIV 600V/CATIII 1000V
RoHS Yes
Drop Protection 6 foot

Manual (Eng) Yes
Test Leads Silicone
Alligator Clips Yes
Batteries AA (4)
Pouch/Case Yes
Insulation Test Probe Yes w/ alligator clips
Optional - Replacement Accessories
ATL92
ATL57
AF38
ATTEXT
ATT100
ATT71
ATT70
ATT39
ATT36
ATT29
ATT29A
ATT29APACK
