*UPGRADED TO DL389B*

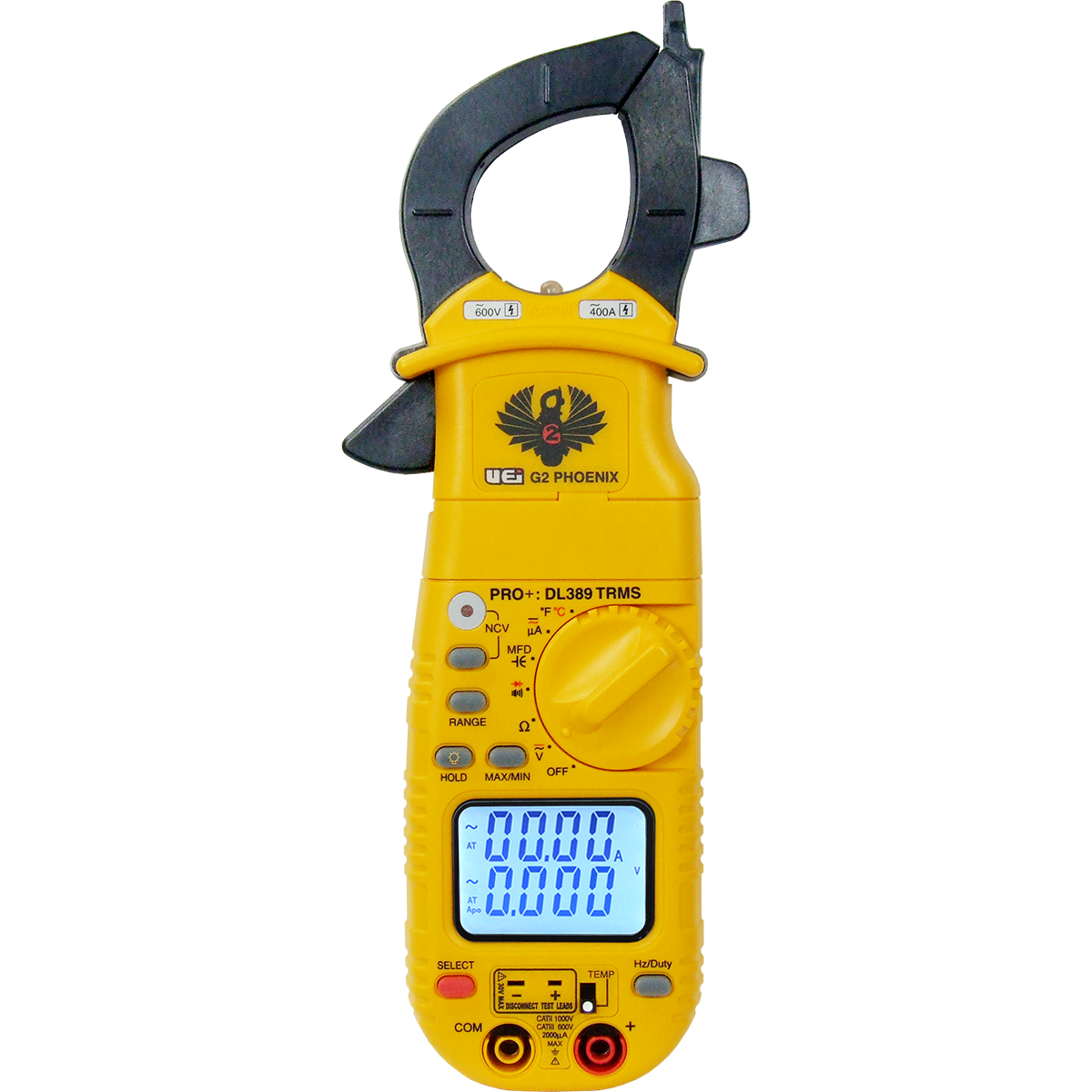

DL389

The PRO+ offers contractors better features, functions and safety making it the most complete Clamp meter available with True RMS precision. Don't spend money on a True RMS meter until you compare it to the PRO+ and ensure it provides all the functionality your job requires

Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads

Dual Display	Yes
Backlight	Yes
Hold	Yes
Min/Max	Yes
Ranging	Auto/Man
Auto Power Off	Yes
Display Count	4000
Low Battery Warning	Yes
Worklight	Yes
Detachable Head	Yes
Magnetic Mount	Yes
Warranty	3-year limited

TRMS	Yes
DC Volts	1000V
AC Volts	750V
Frequency (Hertz) - Test lead input	9.999Hz - 199.9kHz
Duty Cycle (%)	Yes
Resistance (Ohms)	40MΩ
Diode	Yes
Capacitance (Farads)	4000µF
Continuity	Yes
DC Micro Current (Amps) - Test lead input	2000µA
AC Micro Current (Amps) - Test lead input	2000µA
Temperature	-22°F to 752°F
NCV Detection	Yes
AC Current (Amps) - Test lead input	400A

Optional - Replacement Accessories

AAC Slip-On Alligator Clip Set	ATL5 Modular Test Lead Tips - Back Probe Set	ATLTX Modular Test Lead Set	ATT36 K-Type 8 In Surface probe with Handle
AAC3 Screw-On Alligator Clip Set	ATL55 Standard Right Angle Test Lead Set	ATTPC3 Pipe Clamp Probe, K-Type	ATT29 Temperature Probe, K-Type Standard (Fiberglass coated)
ATL1 Modular Test Lead Tips - Fine Point Probe Set	ATL57 Silicone Right Angle Test Lead Set	ATTPC4 Compact Pipe Clamp Probe, K-Type	ATT29A Temperature Probe, K-Type Standard (Fluoroplastic Coated)
ATL2 Modular Test Lead Tips - Alligator Clip Set	ATL6 Modular Test Lead Tips - Piercing Test Clip Set	ATT100 Temperature Probe, K-Type Liquid 6 In	ATT29APACK Temperature Probe, K-Type Standard (Fluoroplastic coated) (10 pack)
ATL3 Modular Test Lead Tips - Remote Grabber Clip Set	ATLBPK Modular Back Probe Test Lead Kit	ATT39 Temperature Probe, K-Type DT300 Series Probe	AC519 Soft Carrying Case (13 inch x 6 inch x 2.75 inch)
ATL301KIT Deluxe Modular Test Lead Kit	ATLCAP Test Lead Protective Cap Shield Set

UL Listed	cULus
CE Conformity	Yes
CAT Rating	CATIII 600V/ CATII 10000V

	Data Sheet - English
	Data Sheet - Spanish
	Data Sheet - French
	Manual - English
	Manual - Spanish
	Manual - French
	Hi-Res picture

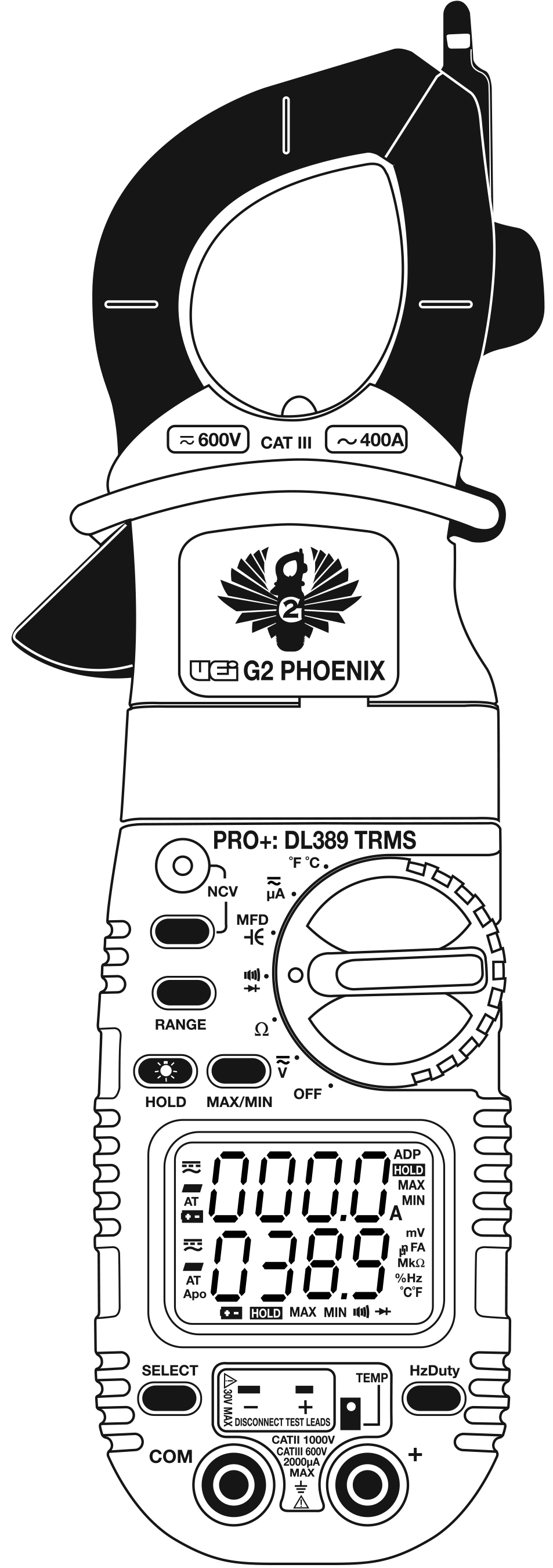

	Line Drawing

Manual (Eng)	Yes
Manual (Spa)	Yes
Manual (Frn)	Yes
Test Leads	Yes
Batteries	AAA (2)
Temperature Probe	Yes
Pouch/Case	Yes
