Name: True RMS Dual Display HVAC/R Clamp Meter
Brand: UEi Test Instruments

Home> Products> Clamp Meters> Meters> True RMS Dual Display HVAC/R Clamp Meter

True RMS Dual Display HVAC/R Clamp Meter

DL389B

The DL389B is a True RMS Clamp meter with a dual display, temperature, and a 2-Year limited warranty. With functions such as AC and DC volts, AC and DC microamps, AC amps, resistance, diode test, continuity, capacitance, frequency and duty cycle.

Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads
Videos
Videos

Dual Display	Yes
Backlight	Yes
Min/Max	Yes
Ranging	Auto/Manual
Auto Power Off	Yes
Display Count	4000
Worklight	Yes
Magnetic Mount	Yes
Warranty	2-Year limited
K-Type Input	Yes
Digital	Yes

TRMS	Yes
AC Current (Amps) - Jaw input	400AAC
DC Volts	1000VDC
AC Volts	750VAC
Frequency (Hertz) - Test lead input	199.99kHz
Duty Cycle (%)	1.0 to 99.0%
Resistance (Ohms)	40MΩ
Diode	Yes
Capacitance (Farads)	4000µF
Continuity	Yes
DC Micro Current (Amps) - Test lead input	2000µADC
AC Micro Current (Amps) - Test lead input	2000µAAC
Temperature	-22°F to 752°F (-30°C to 400°C)
NCV Detection	Yes

Optional - Replacement Accessories

AC560 Clamp Meter Soft Carrying Case	ATLTX Modular Test Lead Set	ATL5 Modular Test Lead Tips - Back Probe Set	ATTPC4 Compact Pipe Clamp Probe, K-Type
ATL55 Standard Right Angle Test Lead Set	ATL1 Modular Test Lead Tips - Fine Point Probe Set	ATL6 Modular Test Lead Tips - Piercing Test Clip Set	ATTEXT K-Type Thermocouple 10 ft. Extension Wire
ATL57 Silicone Right Angle Test Lead Set	ATL2 Modular Test Lead Tips - Alligator Clip Set	ATLBPK Modular Back Probe Test Lead Kit	ATT100 Temperature Probe, K-Type Liquid 6 In
AAC3 Screw-On Alligator Clip Set	ATL3 Modular Test Lead Tips - Remote Grabber Clip Set	ATLCAP Test Lead Protective Cap Shield Set	ATHA1 Gas Valve Thermocouple Adapter

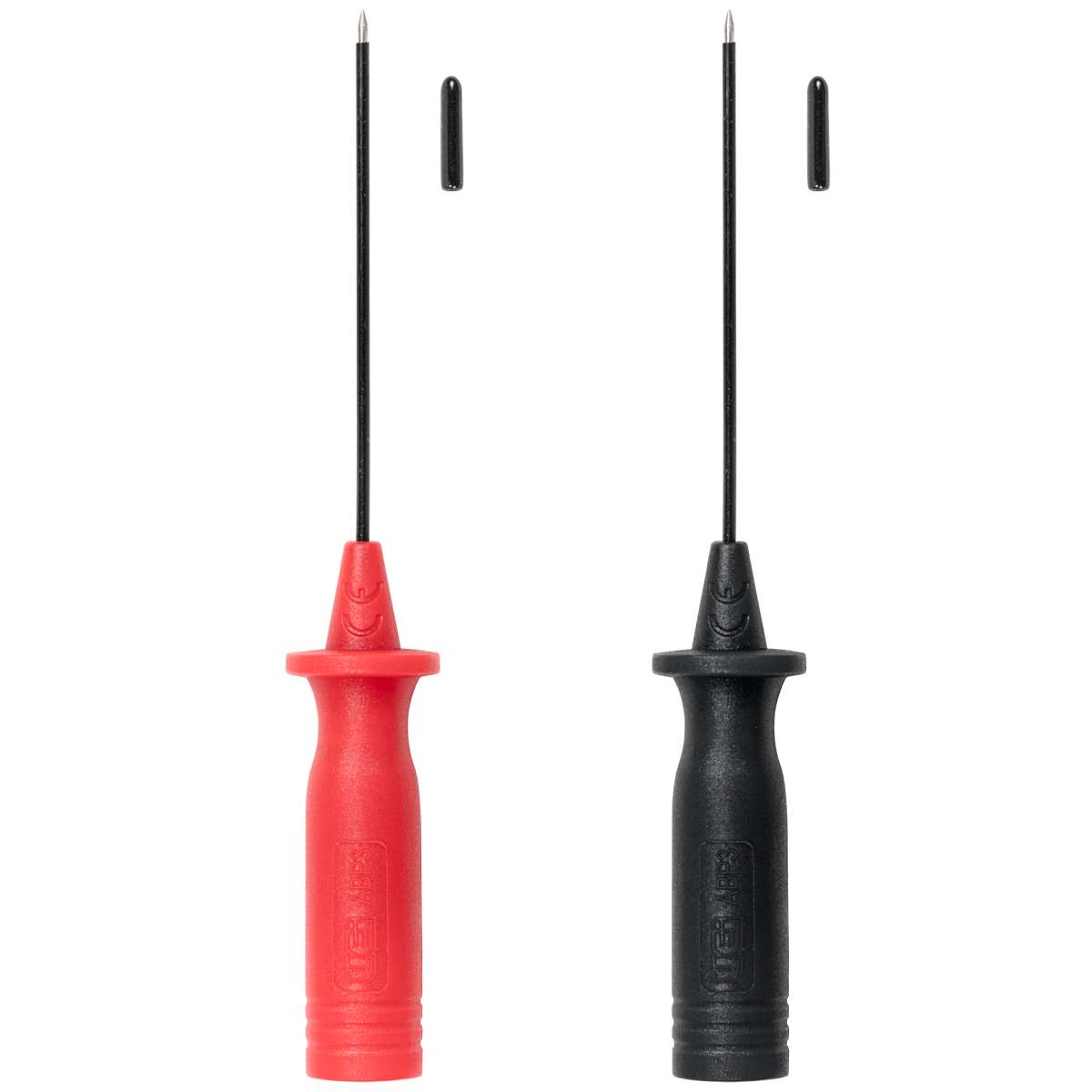

ABP3 Screw-On Back Probe Set	ATL301KIT Deluxe Modular Test Lead Kit	ATTPC3 Pipe Clamp Probe, K-Type

ETL Listed	cETLus UL 61010-1:2012
CAT Rating	CATIII 600V/CATII 1000V

Manual (Eng)	Yes
Test Leads	ATL55
Batteries	AAA (2)
Temperature Probe	ATT29
Pouch/Case	AC560

	Data Sheet - English
	Manual - English
	Manual - Spanish
	Manual - French

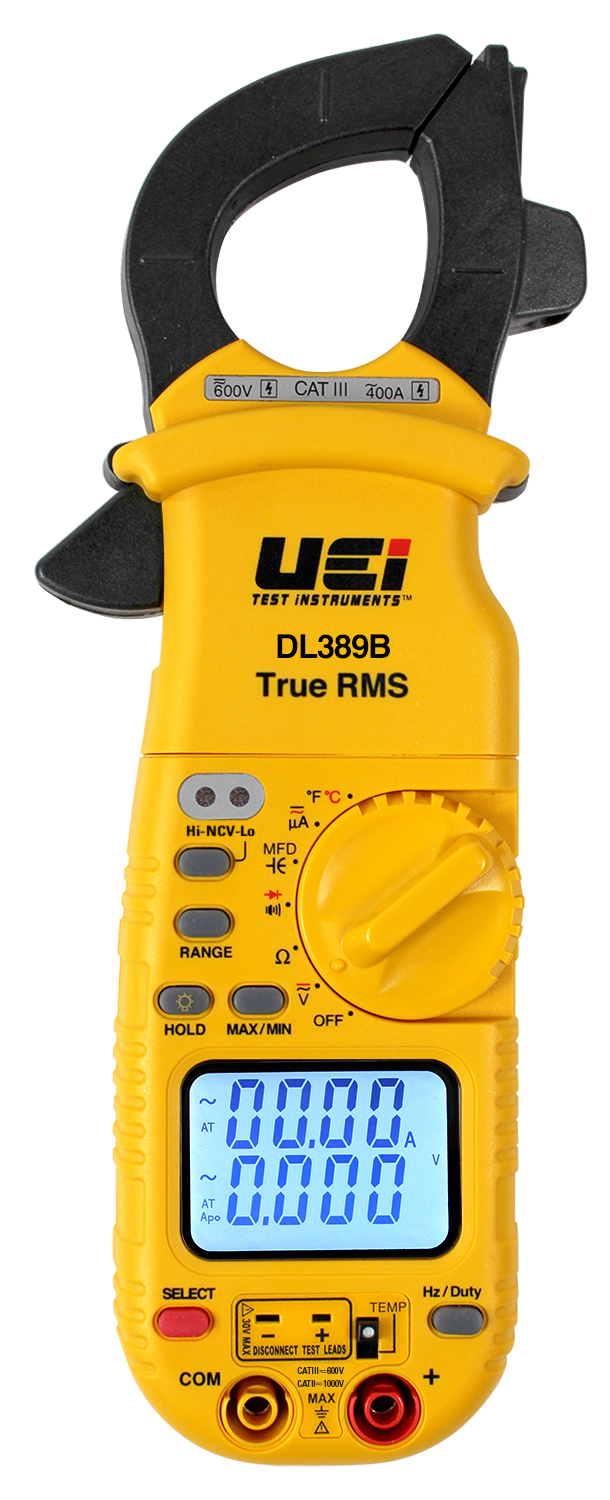

	Hi-Res picture

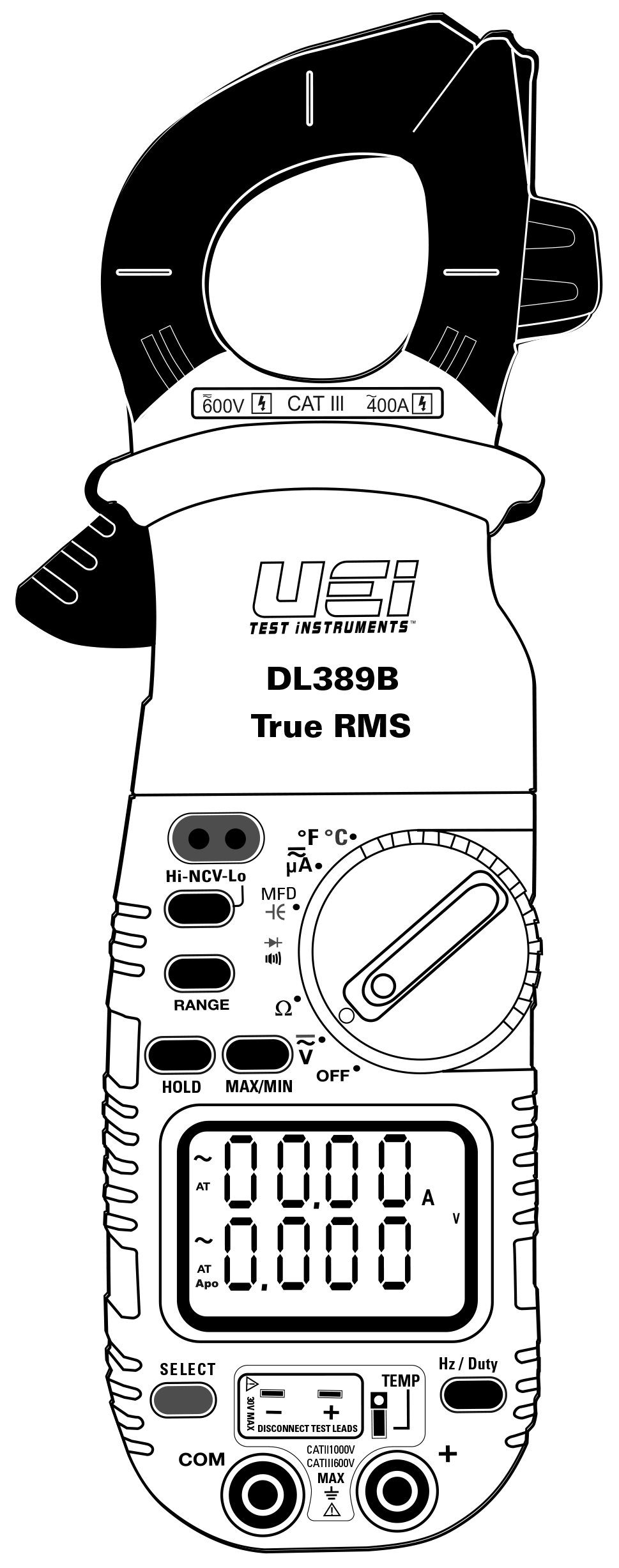

	Line Drawing
