DM525 - TRUE RMS WIRELESS MULTIMETER 1000V W/ POWER FACTOR

Home> Products> Multimeters> True RMS Wireless Multimeter 1000V w/ Power Factor

True RMS Wireless Multimeter 1000V w/ Power Factor

DM525

The DM525 is a Industrial level multimeter with Wireless capability and a free App. It also has Watt/Power Factor. Watt/Power factor is an expression of energy efficiency. The increased functionality gives technicians the ability to do more.

Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads

Hold	Yes
Min/Max	Yes
Ranging	Auto/Manual
Auto Power Off	Yes
Display Count	6000
Low Battery Warning	Yes
Backlight	Yes
Wireless Output	Yes
Free App Available	iOS® & Android™
Bar Graph	Yes
Fast Response Min/Max	Yes
Protective Boot/Overmolding	Yes
Kick Stand	Yes
Magnetic Mount	Optional
Warranty	2-Year limited

TRMS	Yes
AC Volts	1000V
DC Volts	1000V
AC Current (Amps)	10A
DC Current (Amps)	10A
AC Micro Current (Amps)	6000µA
DC Micro Current (Amps)	6000µA
DC Microvolts	600µV
AC Microvolts	600µV
Resistance (Ohms)	50.00 MΩ
Capacitance (Farads)	9999µF
Duty Cycle (%)	Yes
Temperature	-328˚ to 2462˚F
Continuity	Yes
Diode	Yes
Power Factor	Yes
Low Z	Yes

Optional - Replacement Accessories

AAC

Slip-On Alligator Clip Set

AAC3

Screw-On Alligator Clip Set

AC519

Soft Carrying Case (13 inch x 6 inch x 2.75 inch)

ATL1

Modular Test Lead Tips - Fine Point Probe Set

ATL2

Modular Test Lead Tips - Alligator Clip Set

ATL3

Modular Test Lead Tips - Remote Grabber Clip Set

ATL301KIT

Deluxe Modular Test Lead Kit

ATL5

Modular Test Lead Tips - Back Probe Set

ATL55

Standard Right Angle Test Lead Set

ATL57

Silicone Right Angle Test Lead Set

ATL6

Modular Test Lead Tips - Piercing Test Clip Set

ATLBPK

Modular Back Probe Test Lead Kit

ATLCAP

Test Lead Protective Cap Shield Set

ATLTX

Modular Test Lead Set

Ingress Protection	42
ETL Listed	61010-1: 2012 3rd edition
IEC 61010	61010-2-033: 2012 edition
CE Conformity	EN 61010-1: 2010 3rd edition
CAT Rating	CATIV 600V/ CATIII 1000V
RoHS	Yes
FCC/IC Compliant	Yes
TOV Protection	Yes
Drop Protection	6 foot

Manual (Eng)	Yes
Manual (Spa)	Yes
Manual (Frn)	Yes
Test Leads	ATL57 (3)
Alligator Clips	AAC3
Batteries	AA (4)
Temperature Probe	ATT71
Pouch/Case	AC519

	Data Sheet - English
	Data Sheet - Spanish
	Data Sheet - French
	Manual - English
	Manual - Spanish
	Manual - French

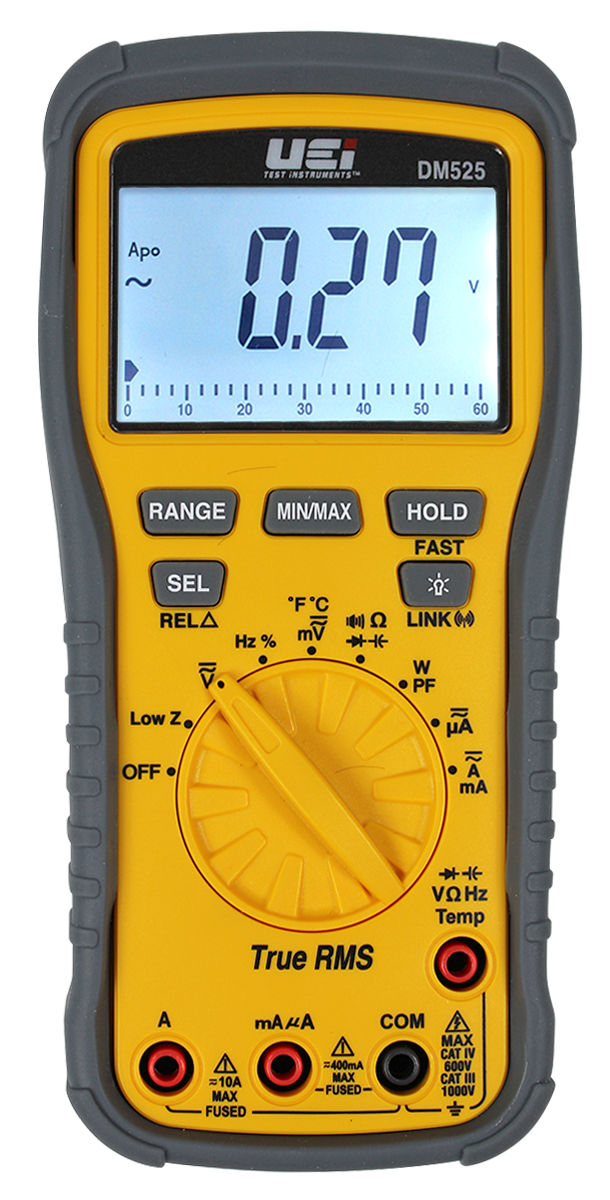

	Hi-Res picture

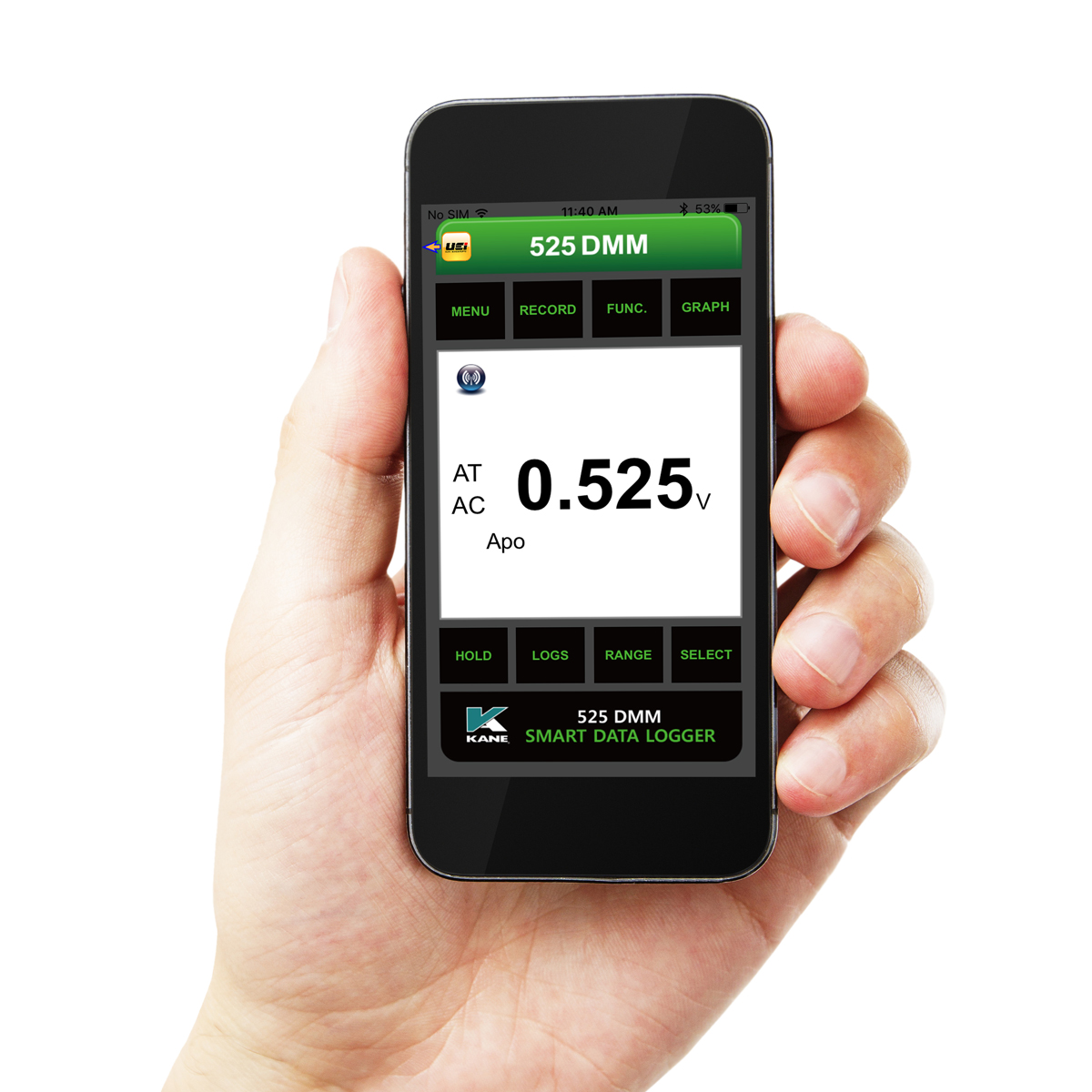

	Application Picture

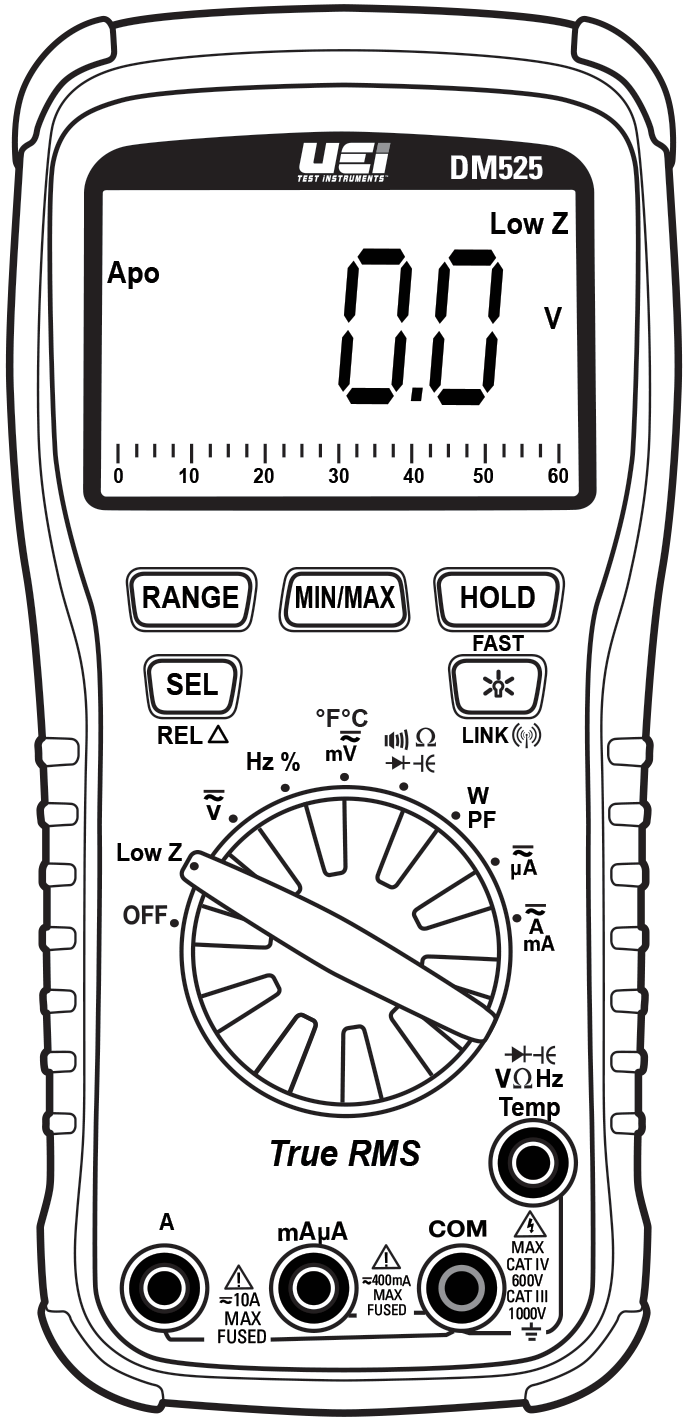

	Line Drawing
