Name: Dual Display HVAC Clamp Meter w/ Temperature and ATTPC3
Brand: UEi Test Instruments

Home> Products> Clamp Meters> Meter Kits> Dual Display HVAC Clamp Meter w/ Temperature and ATTPC3

Dual Display HVAC Clamp Meter w/ Temperature and ATTPC3

DL379BCOMBO

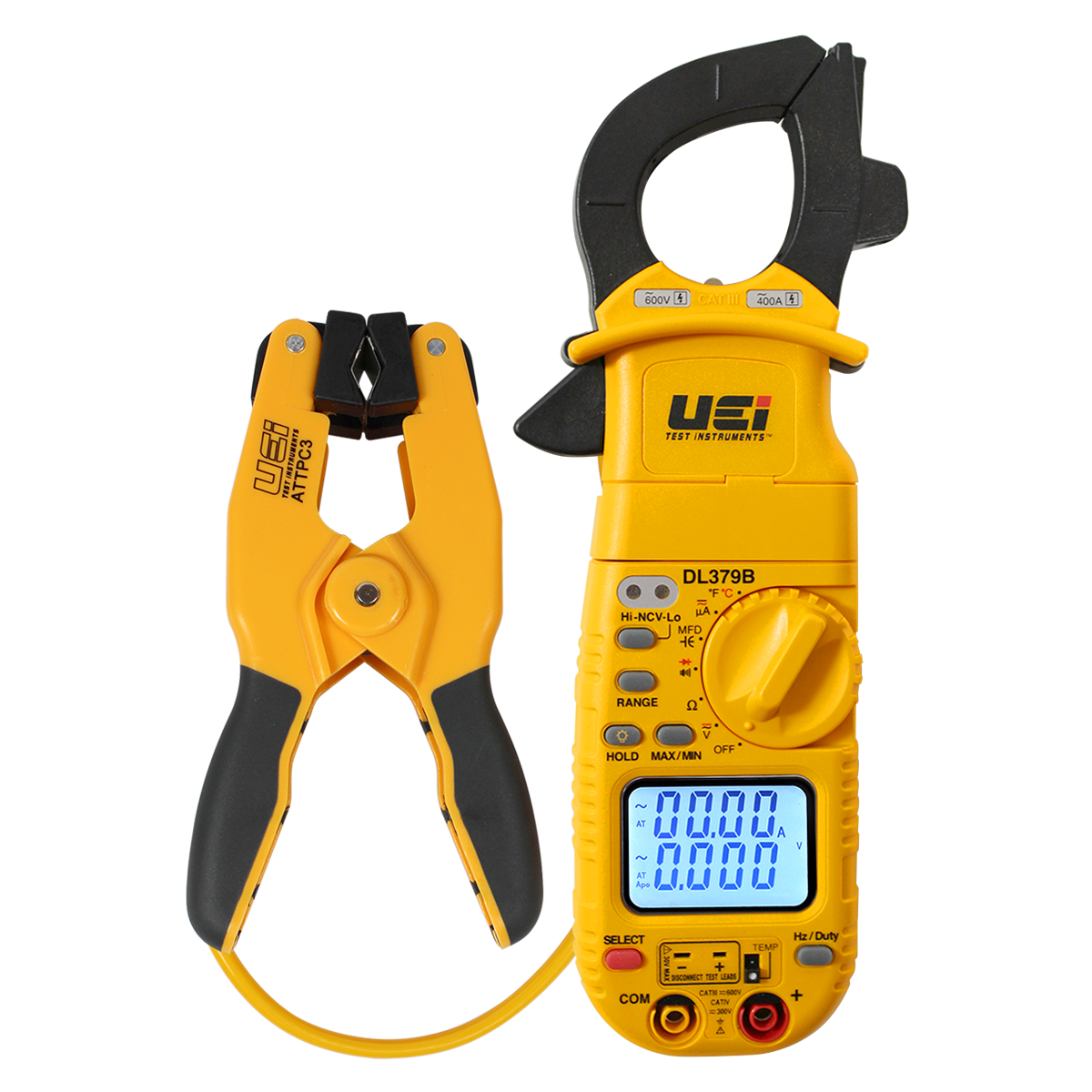

The DL379BCOMBO HVAC/R Clamp Meter with a CATIV 300V rating, dual level NCV, dual display and a 3-Year limited warranty is a very user friendly clamp meter. The detachable clamp head makes it entirely versatile and the meter for a tech to have in his, or her, tool box. And is combined with the ATTPC3 Pipe Clamp Adapter.

The ATTPC3 is designed for pipes with a diameter between 1/4 in. and 1 15/32 in. It features a 5.5 ft. cable and uses a mini-K-type connector plug.

DL379BCOMBO is backed by a 3-Year limited warranty.

Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads

Dual Display	Yes
Backlight	Yes
Hold	Yes
Min/Max	Yes
Ranging	Auto/Manual
Auto Power Off	Yes
Display Count	4000
Low Battery Warning	Yes
Worklight	Yes
Temperature Inputs	K-Type
Magnetic Mount	Yes
Warranty	3-Year limited
Hi/Lo Alarm	Yes
K-Type Input	Yes

AC Current (Amps) - Jaw input	400AAC
DC Volts	1000VDC
AC Volts	750VAC
Frequency (Hertz) - Test lead input	199.9kHz
Duty Cycle (%)	Yes
Resistance (Ohms)	40MΩ
Diode	Yes
Capacitance (Farads)	2000µF
Continuity	Yes
DC Micro Current (Amps) - Test lead input	2000µADC
AC Micro Current (Amps) - Test lead input	2000µAAC
Temperature	-22°F to 752°F (-30°C to 40°C) meter/-40°F to 250°F (-40°C to 121.1°C) pipe clamp
NCV Detection	Hi/Lo Levels

Optional - Replacement Accessories

AAC Slip-On Alligator Clip Set	ATL6 Modular Test Lead Tips - Piercing Test Clip Set	ATLTX Modular Test Lead Set	ATT36 K-Type 8 In Surface probe with Handle
AAC3 Screw-On Alligator Clip Set	ATL55 Standard Right Angle Test Lead Set	ATTPC3 Pipe Clamp Probe, K-Type	ATT29 Temperature Probe, K-Type Standard (Fiberglass coated)
ATL1 Modular Test Lead Tips - Fine Point Probe Set	ATL57 Silicone Right Angle Test Lead Set	ATTPC4 Compact Pipe Clamp Probe, K-Type	ATT29A Temperature Probe, K-Type Standard (Fluoroplastic Coated)
ATL2 Modular Test Lead Tips - Alligator Clip Set	ATL5 Modular Test Lead Tips - Back Probe Set	ATTEXT K-Type Thermocouple 10 ft. Extension Wire	ATT29APACK Temperature Probe, K-Type Standard (Fluoroplastic coated) (10 pack)
ATL3 Modular Test Lead Tips - Remote Grabber Clip Set	ATLBPK Modular Back Probe Test Lead Kit	ATT100 Temperature Probe, K-Type Liquid 6 In	AC519 Soft Carrying Case (13 inch x 6 inch x 2.75 inch)
ATL301KIT Deluxe Modular Test Lead Kit	ATLCAP Test Lead Protective Cap Shield Set	ATT39 Temperature Probe, K-Type DT300 Series Probe

UL Listed	cULus
IEC 61010	IEC 61010-2-032
CE Conformity	Yes
CAT Rating	CAT IV 300V/CAT III 600V

	Data Sheet - English
	Manual - English
	Hi-Res picture
	Line Drawing

Manual (Eng)	Yes
Test Leads	ATL55
Batteries	AAA (2)
Temperature Probe	ATT29
Pouch/Case	AC519
Pipe Clamp Probe	ATTPC3
