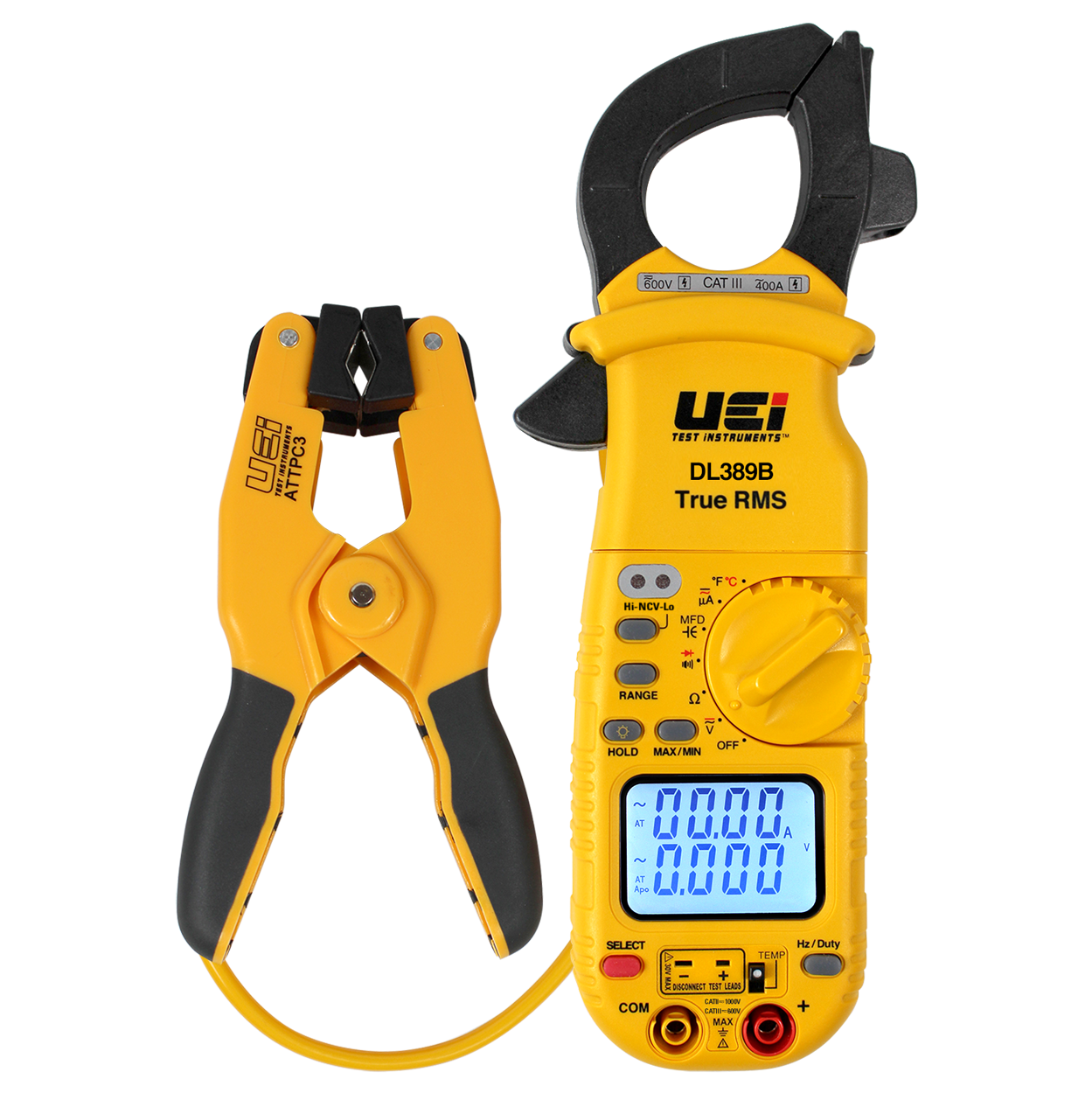

True RMS Dual Display HVAC/R Clamp Meter and ATTPC3

DL389BCOMBO

The DL389BCOMBO HVAC/R Clamp Meter with a CATIII 600V/CATIV 300V rating, NCV, dual display and a 2-Year limited warranty is a very user friendly clamp meter. And is combined with the ATTPC3 Pipe Clamp Adapter

The ATTPC3 is designed for pipes with a diameter between 1/4 in. and 1 15/32 in. It features a 5.5 ft. cable and uses a mini-K-type connector plug.

DL389BCOMBO is backed by a 2-Year limited warranty.

Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads

Dual Display	Yes
Backlight	Yes
Min/Max	Yes
Ranging	Auto/Manual
Auto Power Off	Yes
Display Count	4000
Worklight	Yes
Magnetic Mount	Yes
Warranty	2 Year limited
K-Type Input	Yes
Digital	Yes

TRMS	Yes
AC Current (Amps) - Jaw input	400AAC
DC Volts	1000VDC
AC Volts	750VAC
Frequency (Hertz) - Test lead input	199.99kHz
Duty Cycle (%)	1.0 to 99.0%
Resistance (Ohms)	40MΩ
Diode	Yes
Capacitance (Farads)	4000µF
Continuity	Yes
DC Micro Current (Amps) - Test lead input	2000µADC
AC Micro Current (Amps) - Test lead input	2000µAAC
Temperature	-22F to 752F (-30C to 400C)
NCV Detection	Yes

Optional - Replacement Accessories

AAC3 Screw-On Alligator Clip Set	ATL55 Standard Right Angle Test Lead Set	ATTPC3 Pipe Clamp Probe, K-Type	ATT29A Temperature Probe, K-Type Standard (Fluoroplastic Coated)
ATL1 Modular Test Lead Tips - Fine Point Probe Set	ATL6 Modular Test Lead Tips - Piercing Test Clip Set	ATTEXT K-Type Thermocouple 10 ft. Extension Wire	ATT29APACK Temperature Probe, K-Type Standard (Fluoroplastic coated) (10 pack)
ATL2 Modular Test Lead Tips - Alligator Clip Set	ATLBPK Modular Back Probe Test Lead Kit	ATT100 Temperature Probe, K-Type Liquid 6 In	AC519 Soft Carrying Case (13 inch x 6 inch x 2.75 inch)
ATL3 Modular Test Lead Tips - Remote Grabber Clip Set	ATLCAP Test Lead Protective Cap Shield Set	ATT39 Temperature Probe, K-Type DT300 Series Probe	AAC Slip-On Alligator Clip Set
ATL5 Modular Test Lead Tips - Back Probe Set	ATLTX Modular Test Lead Set	ATT36 K-Type 8 In Surface probe with Handle	ATHA1 Gas Valve Thermocouple Adapter
ATL301KIT Deluxe Modular Test Lead Kit	ATTPC4 Compact Pipe Clamp Probe, K-Type	ATT29 Temperature Probe, K-Type Standard (Fiberglass coated)

ETL Listed	cETLus UL 61010-1:2012
CAT Rating	CATIII 600V/CATII 1000V

	Data Sheet - English
	Manual - English
	Manual - Spanish
	Manual - French
	Hi-Res picture

Manual (Eng)	Yes
Test Leads	ATL55
Batteries	AAA (2)
Temperature Probe	ATT29A
Pouch/Case	AC560
Pipe Clamp Probe	ATTPC3
