DL419 - AC/DC 1000A TRUE RMS CLAMP METER | Kane USA

Home> Services> AC/DC 1000A True RMS Clamp Meter

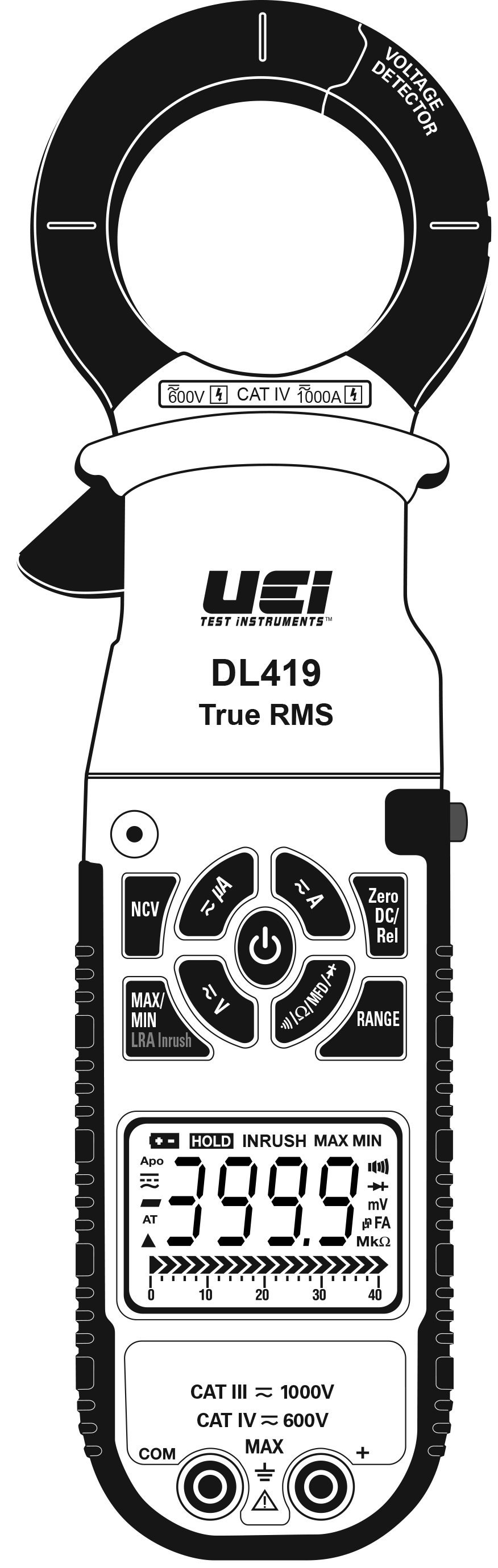

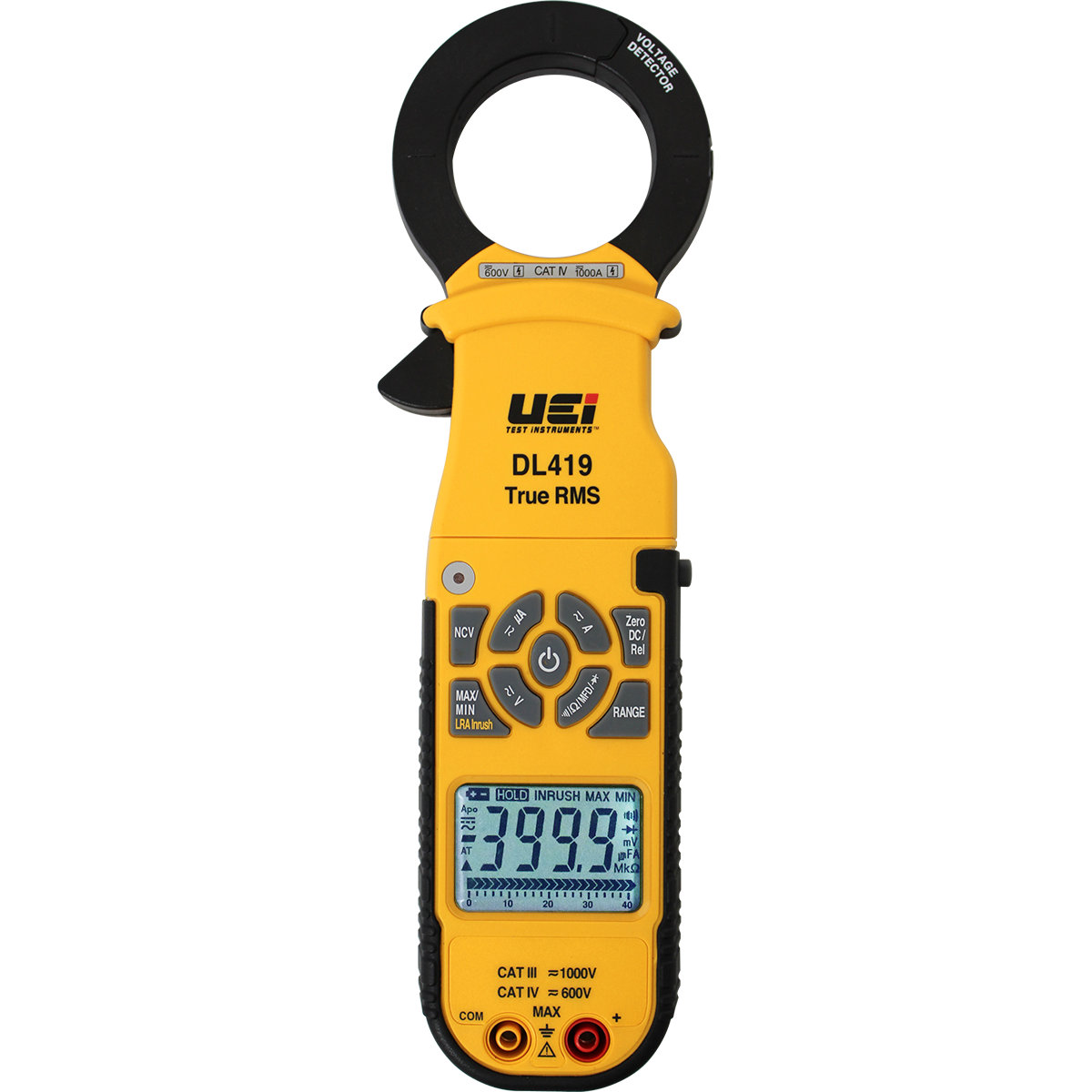

AC/DC 1000A True RMS Clamp Meter

DL419

1000A/!000V True RMS Industrial Clamp Meter

Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads

Backlight	Yes
Hold	Yes
Min/Max	Yes
Ranging	Auto/Man
Auto Power Off	Yes
Display Count	4000
Low Battery Warning	Yes
Relative Mode	Yes
DC Zero	Yes
Bar Graph	Yes
Magnetic Mount	Yes
Warranty	2-Year limited

TRMS	Yes
AC Current (Amps)	1000A
DC Current (Amps)	1000A
AC Micro Current (Amps)	2000µA
DC Micro Current (Amps)	2000µA
AC Volts	1000V
DC Volts	1000V
Resistance (Ohms)	40MΩ
Diode	Yes
Capacitance (Farads)	2000µF
Continuity	Yes
NCV Detection	Yes
LRA Inrush	Yes

Optional - Replacement Accessories

AAC Slip-On Alligator Clip Set	ATL5 Modular Test Lead Tips - Back Probe Set	ATLTX Modular Test Lead Set	ATT39 Temperature Probe, K-Type DT300 Series Probe
AAC3 Screw-On Alligator Clip Set	ATL55 Standard Right Angle Test Lead Set	ATTPC3 Pipe Clamp Probe, K-Type	ATT36 K-Type 8 In Surface probe with Handle
ATL1 Modular Test Lead Tips - Fine Point Probe Set	ATL57 Silicone Right Angle Test Lead Set	ATTPC4 Compact Pipe Clamp Probe, K-Type	ATT29 Temperature Probe, K-Type Standard (Fiberglass coated)
ATL2 Modular Test Lead Tips - Alligator Clip Set	ATL6 Modular Test Lead Tips - Piercing Test Clip Set	ATTEXT K-Type Thermocouple 10 ft. Extension Wire	ATT29A Temperature Probe, K-Type Standard (Fluoroplastic Coated)
ATL3 Modular Test Lead Tips - Remote Grabber Clip Set	ATLBPK Modular Back Probe Test Lead Kit	ATT100 Temperature Probe, K-Type Liquid 6 In	ATT29APACK Temperature Probe, K-Type Standard (Fluoroplastic coated) (10 pack)
ATL301KIT Deluxe Modular Test Lead Kit	ATLCAP Test Lead Protective Cap Shield Set
