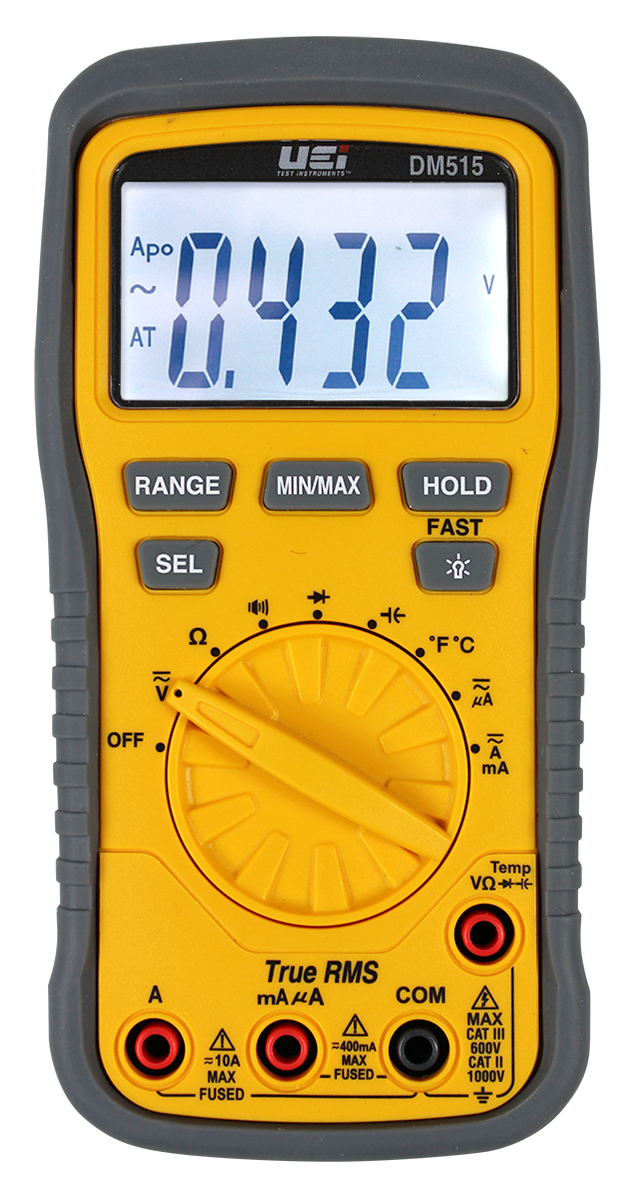

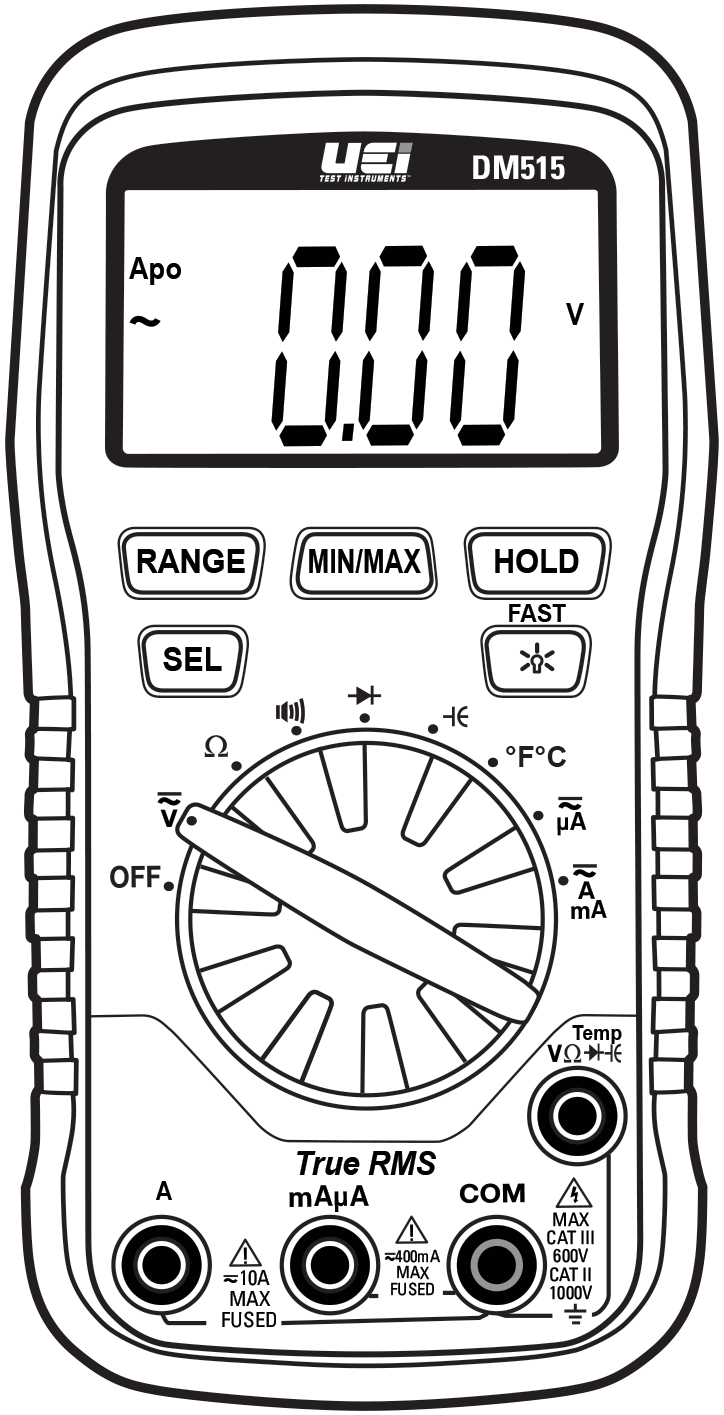

True RMS 1000V HVAC/R Multimeter w/ Temperature
DM515
The DM515 is a True RMS 1000V multimeter with HVAC functionality and temperature

Hold Yes
Min/Max Yes
Ranging Auto/Manual
Auto power off Yes
Display count 6000
Low battery warning Yes
Backlight Yes
Fast response Min/Max Yes
Protective boot or overmolding Yes
Kick stand Yes
Magnetic mount Optional
Warranty 2-Year limited

TRMS Yes
AC Volts 1000V
DC Volts 1000V
AC current (amps) 10A
DC current (amps) 10A
AC micro current (amps) 600µA
DC micro current (amps) 600µA
DC micro volts 6µV
AC micro volts 6µV
Capacitance (Farads) 9999µF
Temperature -328˚ 2462˚F
Continuity Yes
Diode Yes

Drop Protection 6 foot
Ingress Protection 42
ETL listed 61010-1: 2012 3rd edition
IEC 61010 61010-2-033: 2012 edition
CE Conformity EN 61010-1: 2010 3rd edition
CAT Rating CATIII 600V/ CATII 1000V
RoHS Yes
FCC/IC Compliant Yes
TOV Protection Yes

Manual (Eng) Yes
Manual (Spa) Yes
Manual (Frn) Yes

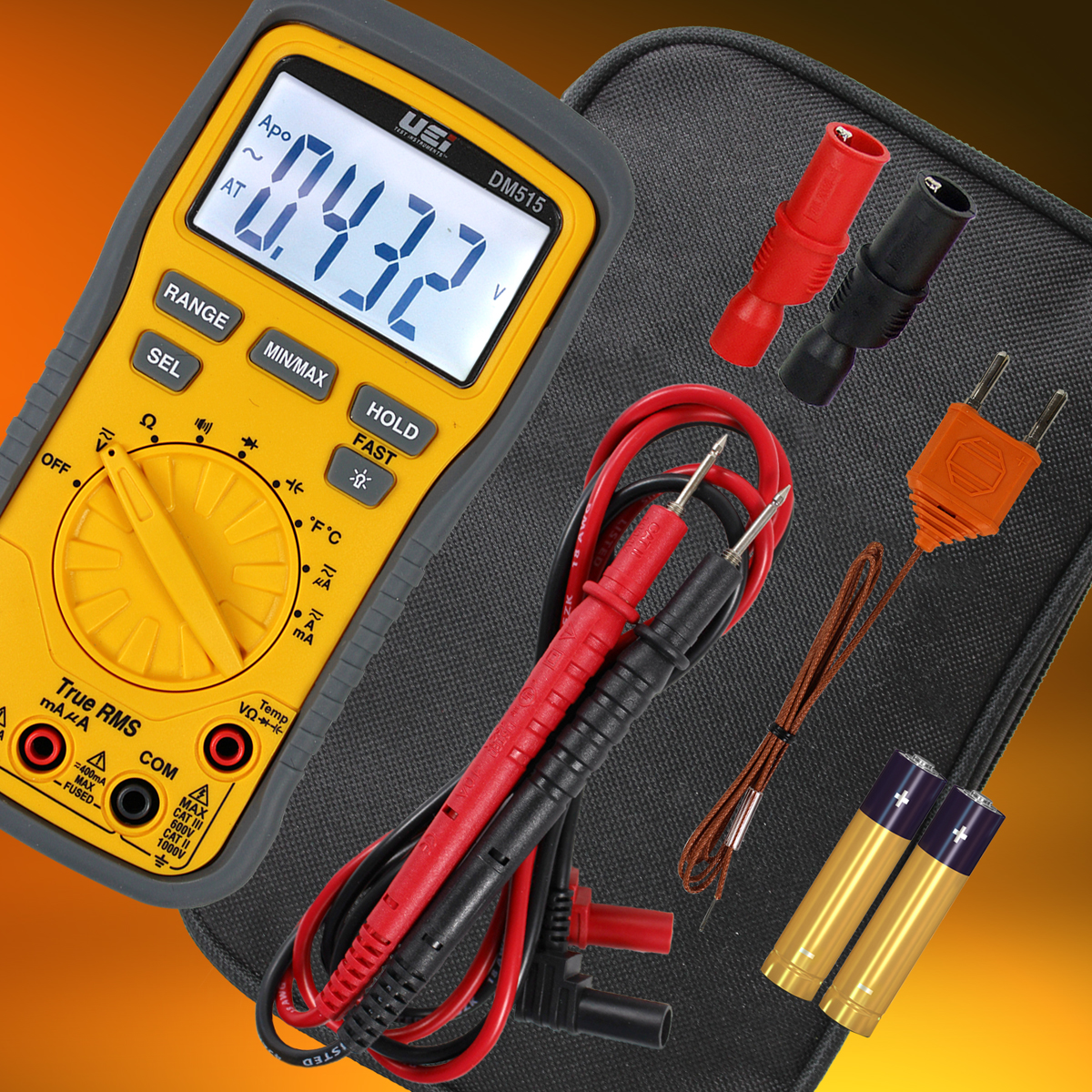

Test Leads ATL55
Alligator clips AAC3
Batteries AA (2)
Pouch/Cases AC519
Temp Probe ATT71
