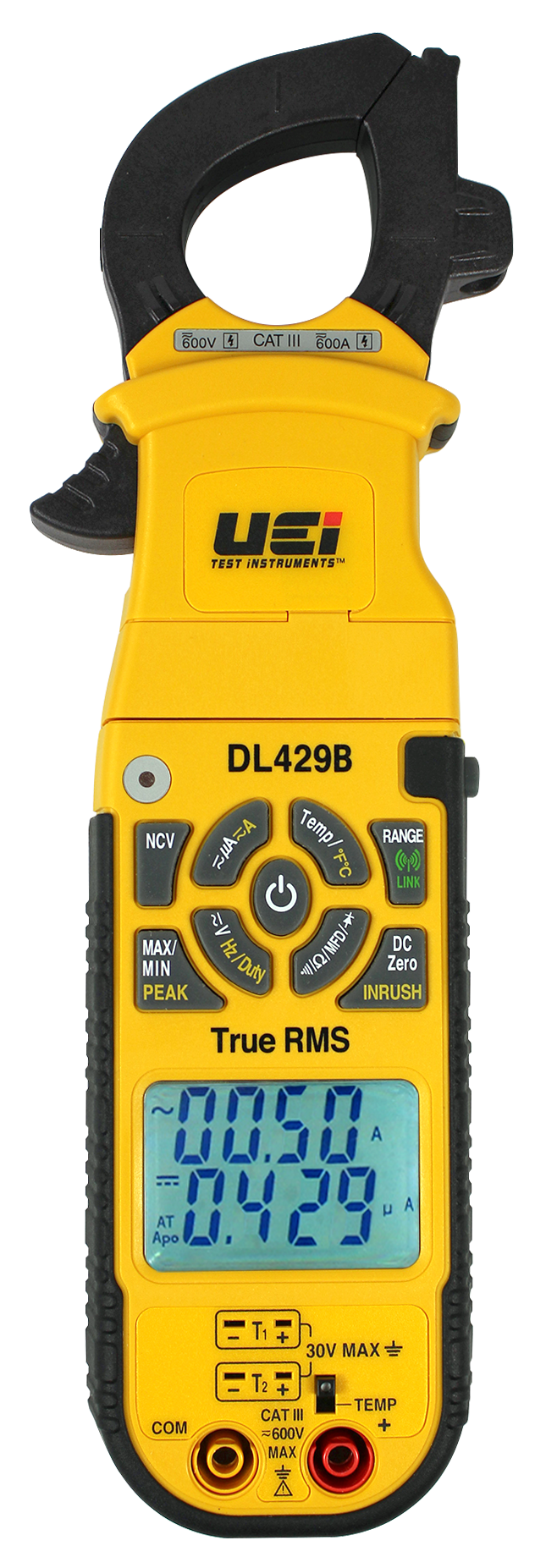

DL429B - True RMS Wireless Clamp Meter w/ Differential Temp

Home> Services> True RMS Wireless Clamp Meter w/ Differential Temperature & DC Amps

True RMS Wireless Clamp Meter w/ Differential Temperature & DC Amps

DL429B

The DL429B Clamp meter offers users True RMS precision, dual temperature, a voltage and amp range that will extend applications to ECM motors, variable speed DC motors, plug and play DC motors and AC ductless mini splits. It also has Wireless capability and a free App.

Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads
Videos
Videos

Dual Display	Yes
Backlight	Yes
Temperature Differential	Yes
Hold	Peak Hold
Min/Max	Yes
Ranging	Auto/Man
Auto Power Off	Yes
Display Count	6000
Low Battery Warning	Yes
Worklight	Yes
Detachable Head	Yes
Temperature Inputs	2
Relative Mode	Yes
DC Zero	Yes
Wireless Output	Yes
Free App Available	iOS® & Android™
Protective Boot/Overmolding	Yes
Magnetic Mount	Yes
Warranty	2-Year limited

TRMS	Yes
AC Current (Amps)	600A
DC Current (Amps)	600A
AC Micro Current (Amps)	2000µA
DC Micro Current (Amps)	2000µA
AC Volts	750V
DC Volts	1000V
Resistance (Ohms)	60MΩ
Diode	Yes
Capacitance (Farads)	2000µF
Temperature	-328°F to 2462°F
Frequency (Hertz)	99.99Hz - 99.99kHz
Duty Cycle (%)	Yes
Continuity	Yes
NCV Detection	Yes
LRA Inrush	Yes
Differential Temperature	Yes

Optional - Replacement Accessories

AAC Slip-On Alligator Clip Set	ATL5 Modular Test Lead Tips - Back Probe Set	ATLTX Modular Test Lead Set	ATT39 Temperature Probe, K-Type DT300 Series Probe
AAC3 Screw-On Alligator Clip Set	ATL55 Standard Right Angle Test Lead Set	ATTPC3 Pipe Clamp Probe, K-Type	ATT36 K-Type 8 In Surface probe with Handle
ATL1 Modular Test Lead Tips - Fine Point Probe Set	ATL57 Silicone Right Angle Test Lead Set	ATTPC4 Compact Pipe Clamp Probe, K-Type	ATT29 Temperature Probe, K-Type Standard (Fiberglass coated)
ATL2 Modular Test Lead Tips - Alligator Clip Set	ATL6 Modular Test Lead Tips - Piercing Test Clip Set	ATTEXT K-Type Thermocouple 10 ft. Extension Wire	ATT29A Temperature Probe, K-Type Standard (Fluoroplastic Coated)
ATL3 Modular Test Lead Tips - Remote Grabber Clip Set	ATLBPK Modular Back Probe Test Lead Kit	ATT100 Temperature Probe, K-Type Liquid 6 In	ATT29APACK Temperature Probe, K-Type Standard (Fluoroplastic coated) (10 pack)
ATL301KIT Deluxe Modular Test Lead Kit	ATLCAP Test Lead Protective Cap Shield Set

Ingress Protection	42
ETL Listed	61010-1: 2012
IEC 61010	3rd edition
CE Conformity	Yes
CAT Rating	CATIII 600V
RoHS	Yes
FCC/IC Compliant	Yes
Drop Protection	6 foot

Manual (Eng)	Yes
Manual (Spa)	Yes
Manual (Frn)	Yes
Test Leads	ATT57
Alligator Clips	AAC3
Batteries	AAA (8)
Temperature Probe	ATT29A (2)
Pouch/Case	Yes

	Data Sheet - English
	Manual - English
	Manual - Spanish
	Manual - French
	Hi-Res picture
	Line Drawing
