AC 600A True RMS HVAC/R Clamp Meter
Zoom
Loading…

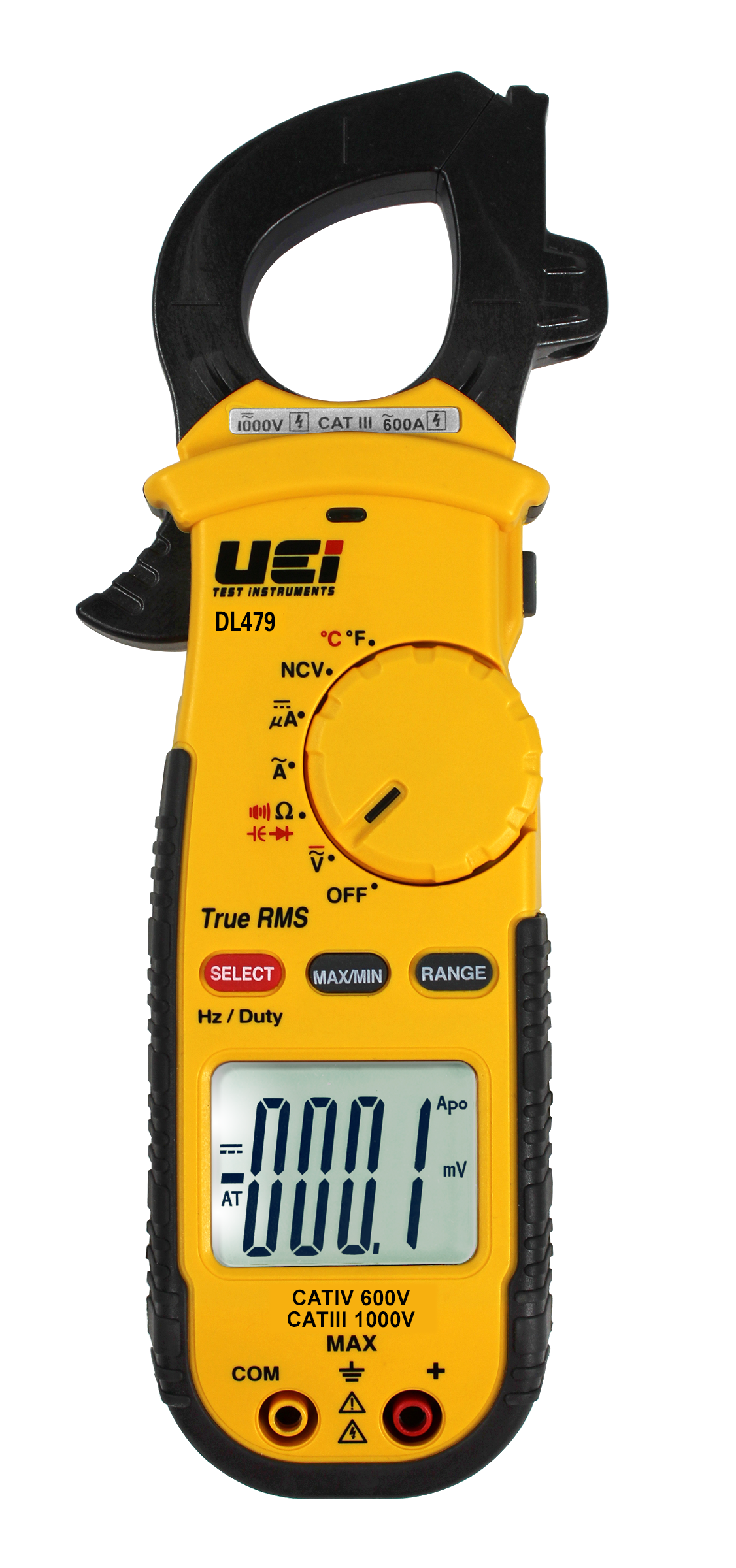

AC 600A True RMS HVAC/R Clamp Meter
DL479
Single Display AC 600A True RMS HVAC/R Clamp meter
Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads
Videos
Videos
Backlight
Yes
Hold
Yes
Min/Max
Yes
Ranging
Auto/Man
Auto Power Off
Yes
Display Count
6000
Low Battery Warning
Yes
Worklight
Yes
Protective Boot/Overmolding
Yes
Magnetic Mount
Yes
Warranty
2-Year limited
TRMS
Yes
AC Current (Amps)
600A
DC Micro Current (Amps)
2000µA
AC Volts
750V
DC Volts
600V
Resistance (Ohms)
60MΩ
Diode
Yes
Capacitance (Farads)
2000µF
Temperature
-14˚ to 752˚F
Frequency (Hertz)
99.99Hz - 9.999kHz
Duty Cycle (%)
Yes
Continuity
Yes
NCV Detection
Yes
ETL Listed
3rd edition
CE Conformity
Yes
CAT Rating
CATIV 600V/ CATIII 1000V
RoHS
Yes
Manual (Eng)
Yes
Manual (Spa)
Yes
Manual (Frn)
Yes
Test Leads
ATL57
Alligator Clips
AAC3
Batteries
AAA (2)
Temperature Probe
ATT71
Pouch/Case
AC519
Data Sheet - English
Data Sheet - Spanish
Data Sheet - French
Manual - English
Manual - Spanish
Manual - French
Hi-Res picture
Application Picture
Line Drawing
Video 1
Loading…
Optional - Replacement Accessories
AAC
Slip-On Alligator Clip Set
AAC3
Screw-On Alligator Clip Set
ATL1
Modular Test Lead Tips - Fine Point Probe Set
ATL2
Modular Test Lead Tips - Alligator Clip Set
ATL3
Modular Test Lead Tips - Remote Grabber Clip Set
ATL301KIT
Deluxe Modular Test Lead Kit
ATL5
Modular Test Lead Tips - Back Probe Set
ATL55
Standard Right Angle Test Lead Set
ATL57
Silicone Right Angle Test Lead Set
ATL6
Modular Test Lead Tips - Piercing Test Clip Set
ATLBPK
Modular Back Probe Test Lead Kit
ATLCAP
Test Lead Protective Cap Shield Set
ATLTX
Modular Test Lead Set
AC519
Soft Carrying Case (13 inch x 6 inch x 2.75 inch)
ATTPC3
Pipe Clamp Probe, K-Type
ATTPC4
Compact Pipe Clamp Probe, K-Type
ATTEXT
K-Type Thermocouple 10 ft. Extension Wire
ATT100
Temperature Probe, K-Type Liquid 6 In
ATT70
Temperature Probe Adapter, K-Type
ATT71
Thermocouple w/ Standard Inputs, K-Type
ATT39
Temperature Probe, K-Type DT300 Series Probe
ATT36
K-Type 8 In Surface probe with Handle
ATT29
Temperature Probe, K-Type Standard (Fiberglass coated)
ATT29A
Temperature Probe, K-Type Standard (Fluoroplastic Coated)
ATT29APACK
Temperature Probe, K-Type Standard (Fluoroplastic coated) (10 pack)
