50th Anniversary Commemorative Edition

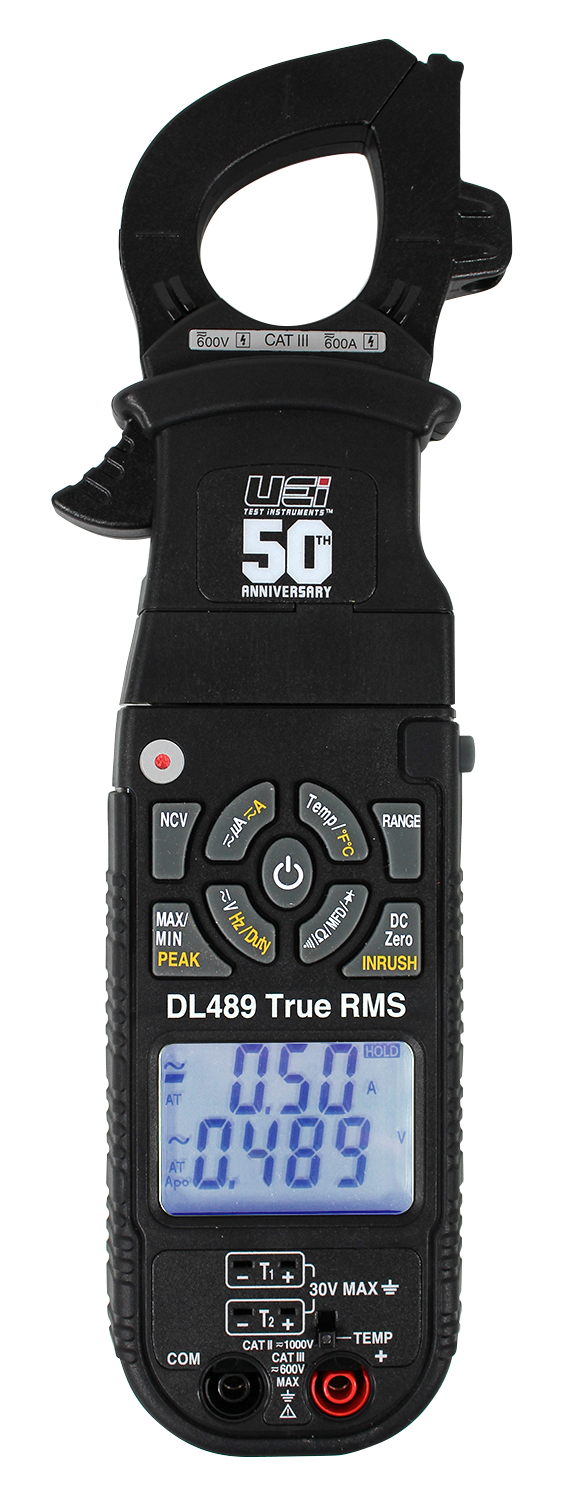

True RMS Digital Clamp Meter w/ DC Amps

DL489

CyberStore Short Description

The DL489 True RMS Clamp meter offers contractors better features, functions and safety in a commemorative edition housing. A complete meter with the precision of True RMS and the functionality your job requires. Featuring 600A AC/DC, 750V AC and 1000V DC, resistance, capacitance, diode test, continuity, microamps and LRA Inrush. The DL489 is the complete meter your job requires.

Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads

Warranty	2-year limited
Dual Display	Yes
Display Backlight	Yes
Temperature Differential	Yes
Hold	Peak Hold
Min/Max	Yes
Ranging	Auto/Man
Auto Power Off	Yes
Display Count	6000
Low Battery Warning	Yes
Worklight	Yes
Detachable Head	Yes
Temperature Inputs	2
Relative Mode	Yes
DC Zero	Yes
Protective Boot/Overmolding	Yes
Magnetic Mount	Yes

TRMS	Yes
LRA Inrush	Yes
DC Volts	1000V
AC Volts	750V
Frequency (Hertz) - Test lead input	99.99Hz - 99.99kHz
Duty Cycle (%)	Yes
Resistance (Ohms)	60MΩ
Diode	Yes
Capacitance (Farads)	2000µF
Continuity	Yes
DC Micro Current (Amps) - Test lead input	2000µA
AC Micro Current (Amps) - Test lead input	2000µA
Temperature	-328°F to 2462°F
NCV Detection	Yes
DC Current (Amps) - Test lead input	600A
AC Current (Amps) - Test lead input	600A
Differential Temperature	Yes

Optional - Replacement Accessories

AAC Slip-On Alligator Clip Set	ATL301KIT Deluxe Modular Test Lead Kit	ATLTX Modular Test Lead Set	ATT39 Temperature Probe, K-Type DT300 Series Probe
AAC3 Screw-On Alligator Clip Set	ATL5 Modular Test Lead Tips - Back Probe Set	ATTPC3 Pipe Clamp Probe, K-Type	ATT36 K-Type 8 In Surface probe with Handle
ATL1 Modular Test Lead Tips - Fine Point Probe Set	ATL55 Standard Right Angle Test Lead Set	ATTPC4 Compact Pipe Clamp Probe, K-Type	ATT29 Temperature Probe, K-Type Standard (Fiberglass coated)
ATL2 Modular Test Lead Tips - Alligator Clip Set	ATLBPK Modular Back Probe Test Lead Kit	ATTEXT K-Type Thermocouple 10 ft. Extension Wire	ATT29A Temperature Probe, K-Type Standard (Fluoroplastic Coated)
ATL3 Modular Test Lead Tips - Remote Grabber Clip Set	ATLCAP Test Lead Protective Cap Shield Set	ATT100 Temperature Probe, K-Type Liquid 6 In	ATT29APACK Temperature Probe, K-Type Standard (Fluoroplastic coated) (10 pack)

Ingress Protection	42
ETL Listed	3rd edition
IEC 61010	3rd ediition
CE Conformity	Yes
CAT Rating	CATIII 600V/ CATII 1000V
RoHS	Yes
Drop Protection	6 foot

Manual (Eng)	Yes
Manual (Spa)	Yes
Manual (Frn)	Yes
Test Leads	ATL57
Alligator Clips	AAC3
Batteries	AAA (6)
Temperature Probe	ATT29 (2)

	Data Sheet - English
	Data Sheet - Spanish
	Data Sheet - French
	Manual - English
	Manual - Spanish
	Manual - French
